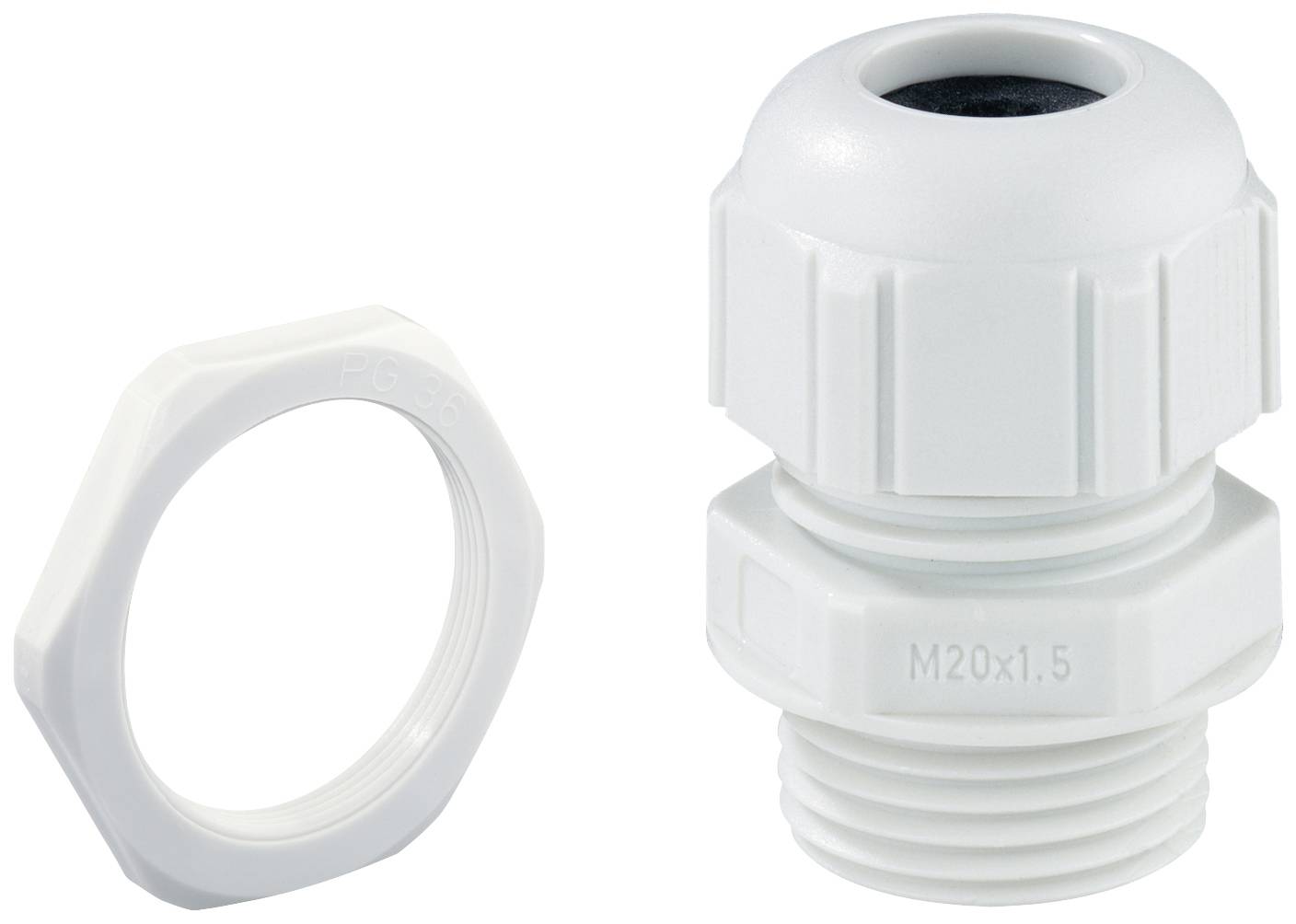

Spelsberg 22744001 Cable gland shockproof, with strain relief, with locknut M40 Plastic Light grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M40
Type
straight, untreated, glass fiber reinforced
Material
Plastic
Clamp Ø
16 mm
Datasheet (PDF)
Number
Total (€ 10.99 / piece)
€ 10.99
incl. VAT
14-day return policy included
Technical specifications
- Thread pitch 1.5 mm
- Type of seal: Sealing ring
- Hexagonal corner dimensions 50 mm
- Product type
Cable gland
- Features
shockproof
with strain relief
with locknut
- Factory colour
Light grey
- External thread
M40
- Type
straight, untreated, glass fiber reinforced
- Material
Plastic
- Clamp Ø
16 mm
- Terminal Ø (max.)
28 mm
- Thread length
11 mm
- Min. temperature
-25 °C
- Max. temperature
+100 °C
IP68
- Spanner size
46 mm
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
22744001
- Type
KVR M40-MGM
Grey
Straight
TRUE
TRUE
7035
Untreated
46 mm
11 mm
TRUE
FALSE
TRUE
Sealing ring
Polyamide (PA)
-25-100 °C
Metric
Plastic
1.5 mm
FALSE
FALSE
FALSE
TRUE
50 mm
FALSE
16-28 mm
IP68
None
Other
40
None
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379492 Spelsberg 22744001 Cable gland shockproof, with strain relief, with locknut M40 Plastic Light grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379492 Spelsberg 22744001 Cable gland shockproof, with strain relief, with locknut M40 Plastic Light grey 1 pc(s)
Description
Cable gland IP68 with strain relief, polyamide, M_ x 1.5mm, with locknut
This text is machine translated.
This text is machine translated.
