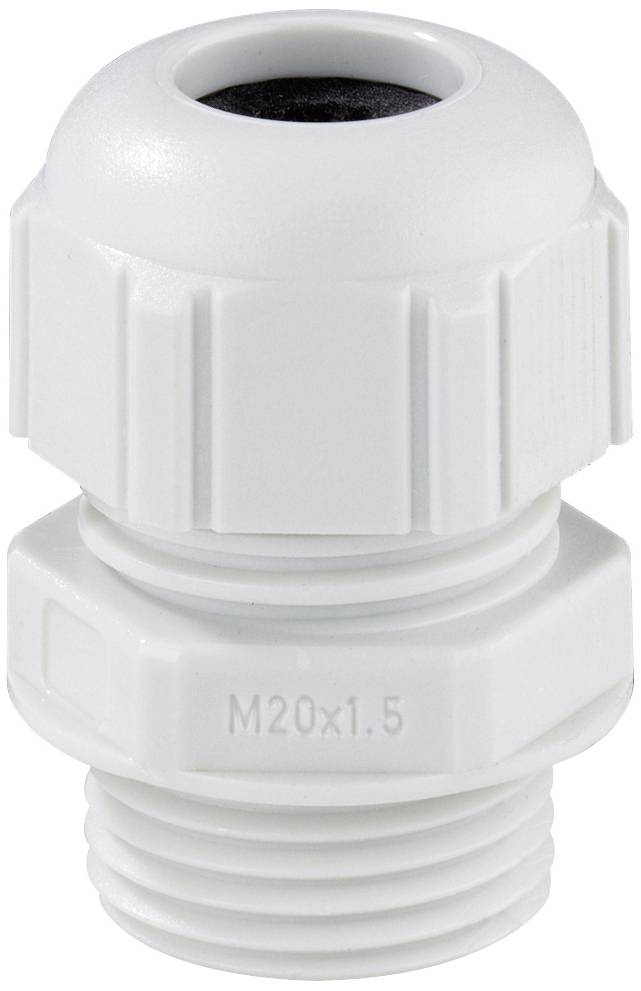

Spelsberg 24742101 Cable gland shockproof, with strain relief M20 Plastic Light grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M20
Type
straight, untreated, glass fiber reinforced
Material
Plastic
Clamp Ø
7 mm
Datasheet (PDF)
Number
Total (€ 3.49 / piece)
€ 4.39
-21 %
€ 3.49
incl. VAT
14-day return policy included
Technical specifications
- Thread pitch 1.5 mm
- Type of seal: Sealing ring
- Hexagonal corner dimensions 26.5 mm
- Product type
Cable gland
- Features
shockproof
with strain relief
- Factory colour
Light grey
- External thread
M20
- Type
straight, untreated, glass fiber reinforced
- Material
Plastic
- Clamp Ø
7 mm
- Terminal Ø (max.)
14 mm
- Thread length
9 mm
- Min. temperature
-25 °C
- Max. temperature
+100 °C
IP68
- Spanner size
27 mm
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
24742101
- Type
KVR M20-GDB
Grey
Straight
TRUE
TRUE
7035
Untreated
27 mm
9 mm
TRUE
FALSE
TRUE
Sealing ring
Polyamide (PA)
-25-100 °C
Metric
Plastic
1.5 mm
FALSE
FALSE
FALSE
FALSE
26.5 mm
FALSE
7-14 mm
IP68
None
Other
20
None
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2379517 Spelsberg 24742101 Cable gland shockproof, with strain relief M20 Plastic Light grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379517 Spelsberg 24742101 Cable gland shockproof, with strain relief M20 Plastic Light grey 1 pc(s)
Description
Cable gland, IP68, with strain relief, polyamide, M_ x 1.5mm, Without counter nut
