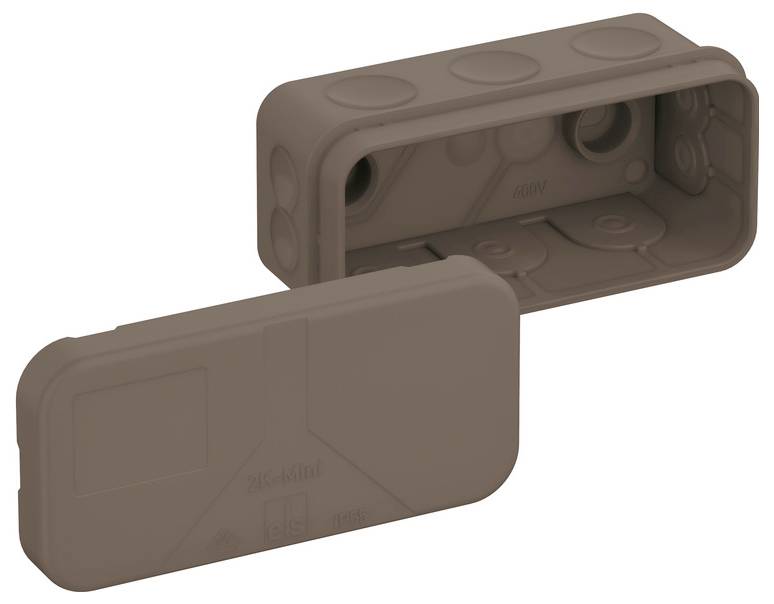

Spelsberg 34400801 Junction box (L x W x H) 43 x 89 x 38 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 4.29 / piece)
€ 4.29
incl. VAT
Only 9 Piece(s) available
Highlights & Details
Branch box, brown, protection class IP55
- Halogen-free
Technical specifications
- Rated insulation voltage AC 400 V
- Max. Conductor cross-section: 2.5 mm²
- Protection class IP55
- Protection class: II
- Internal length 33 mm
- Inner width 79 mm
- Inner height: 33 mm
- Flammability class to UL94: HB
- Glow wire resistance 650 °C (EN 60695-2-11)
- Impact strength: IK07
- Product type
Junction box
- Factory colour
Brown
- Content
1 pc(s)
- Dim
(L x W x H) 43 x 89 x 38 mm
- Length
43 mm
- Width
89 mm
- Height
38 mm
Documents & Downloads
Datasheet
Datasheet 3775578 Spelsberg 34400801 Junction box (L x W x H) 43 x 89 x 38 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3775578 Spelsberg 34400801 Junction box (L x W x H) 43 x 89 x 38 mm 1 pc(s)
Description
Connection box with protection class IP55, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/22 (VDE 0606-1/--22)), self-sealing, soft introduction membranes, sealing range 10 - 14 mm, (1 at the back, 2 at the sides), indoor mounting points, for standard installations indoors, brown, without terminals
