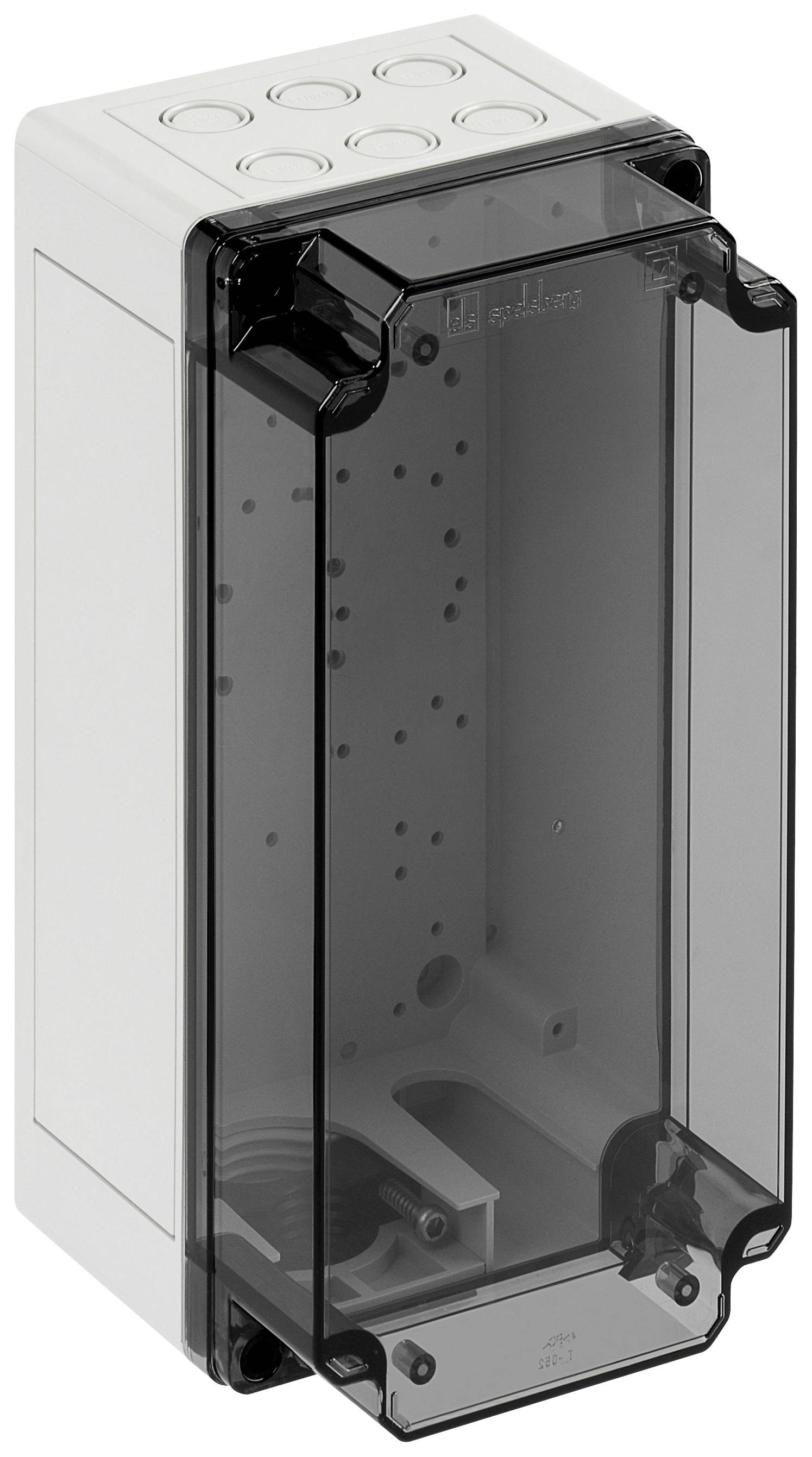

Spelsberg SVi LS-th 59111401 Universal enclosure 150 x 300 x 162 Plastic Grey 1 pc(s)
Product type
Universal enclosure
Material
Plastic
IP rating
IP54
Width
150 mm
Height
300 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Impact strength: IK07
- Installation depth: 144 mm
- Protection class: II
- Attachment option: Yes
- Suitable for outdoor use: Yes
- Nominal current (in) 250 A.
- Material thickness housing: 3 mm
- Lid type: Closed
- Product type
Universal enclosure
- Features
Cover (clear)
- Material
Plastic
IP54
- Factory colour
Grey
- Type
Surface-mounted
- Width
150 mm
- Height
300 mm
- Internal depth
119 mm
- Content
1 pc(s)
- Dim
(W x H x D) 150 x 300 x 162 mm
- Depth
162 mm
- Type
SVi LS-th
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379831 Spelsberg SVi LS-th 59111401 Universal enclosure 150 x 300 x 162 Plastic Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379831 Spelsberg SVi LS-th 59111401 Universal enclosure 150 x 300 x 162 Plastic Grey 1 pc(s)
Description
Empty housing, industrial quality, with sliding seal and cable clamp
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
