Steinel 032852 Ceiling PIR motion detector 360 ° Black IP54
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

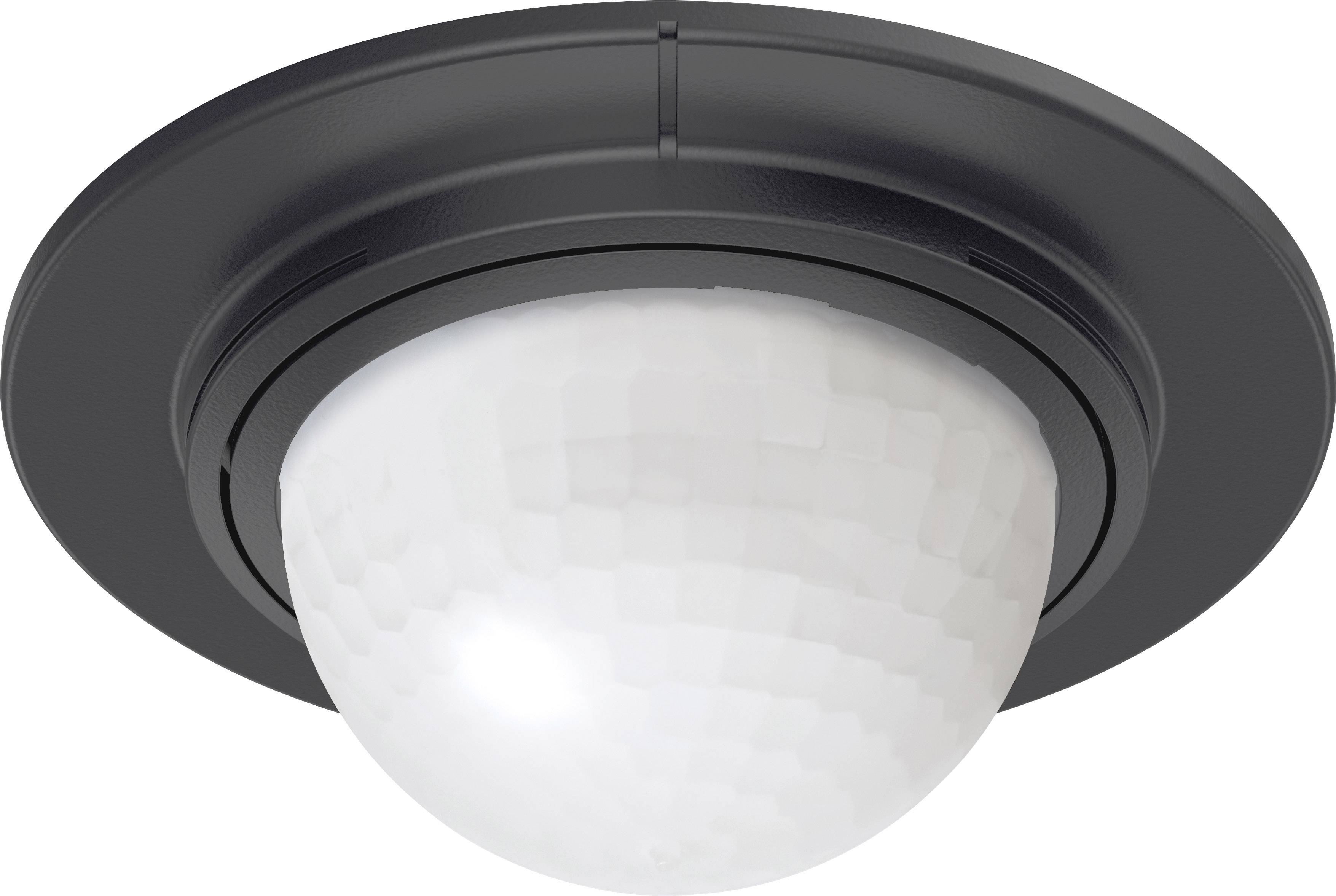

Motion detector IS 360-1 DE BLACK
- Housing made of UV-resistant plastic
- for outside and inside
- Protection class: II
- Response brightness: 2-2000 lx
Technical specifications
- II protection rating
- Housing: UV-resistant plastic.
- Product type
PIR motion detector
- Detection angle
360°
4 m
- Used at
Outdoors
Indoors
- Mounting type
Ceiling
- Operating voltage
230 V
- Switching capacity
1000 W
- Voltage (max.)
240 V
- Switching capacity (LED)
350 W W
- Switching capacity (light tubes)
1000 W
- Twilight settings
2 - 2000 lx
- Time settings
8 s - 35 Min.
- Factory colour
Black
IP54
- Operating temperature
-20 °C...+40 °C
- Type
Passive infrared
- Type
IS 360-1 DE BLACK
- Length
89 mm
- Height
78 mm
- (Ø)
89 mm

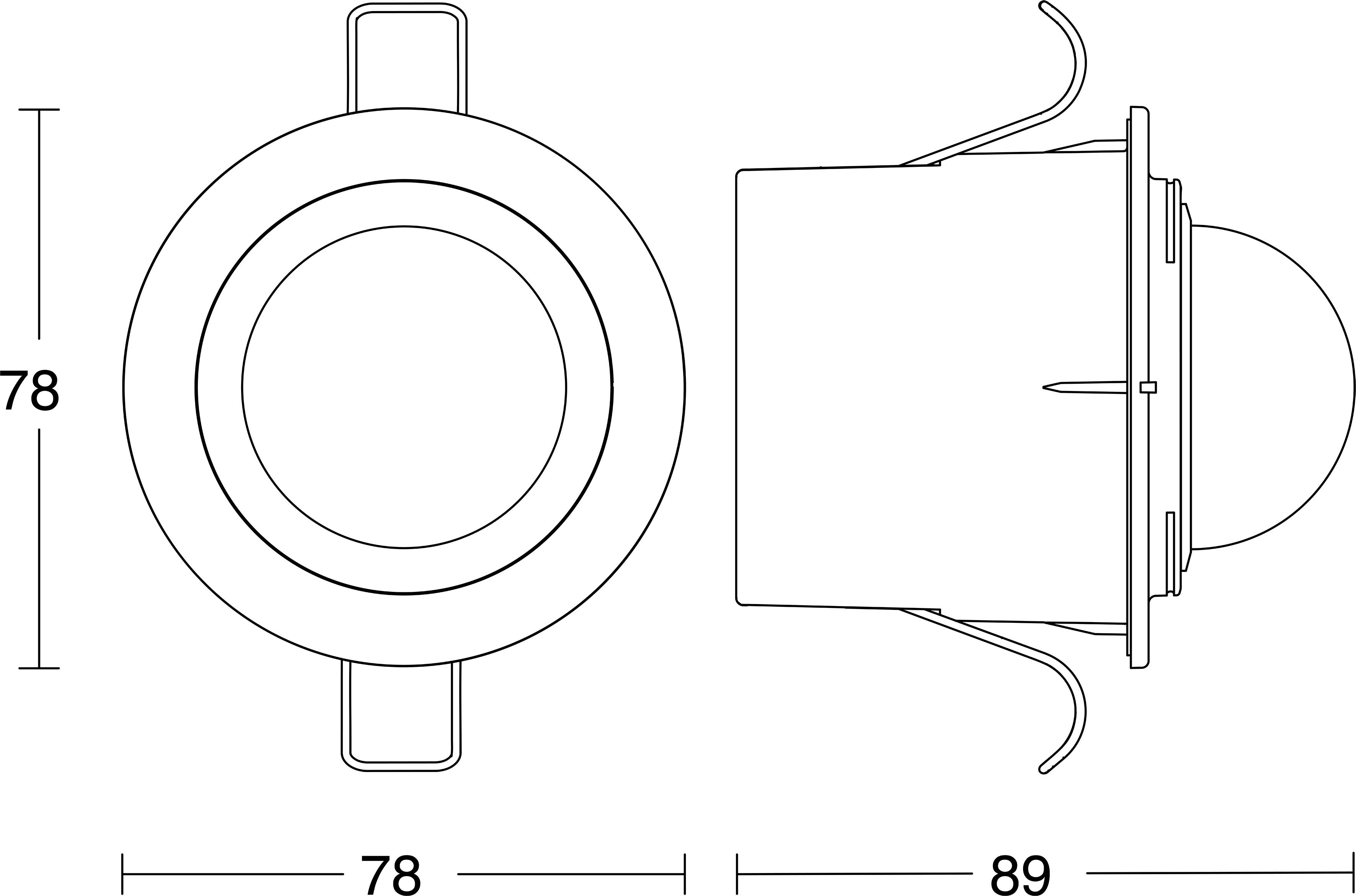

- Dim
(Ø x H) 89 mm x 78 mm
- Weight
0.116 kg
- Voltage (min.)
230 V
Surface mounted (plaster)
Black
Movement sensor
TRUE
89 mm
89 mm
Other
Other
AC
50-60 MHz
78 mm
Thermoplastic
110 A
Plastic
9005
IP54
FALSE
TRUE
FALSE
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1668763 Steinel 032852 Ceiling PIR motion detector 360 ° Black IP54
User & Safety Instructions
User & Safety Instructions 1668763 Steinel 032852 Ceiling PIR motion detector 360 ° Black IP54
Warranty Terms
Warranty Terms 1668763 Steinel 032852 Ceiling PIR motion detector 360 ° Black IP54
Description

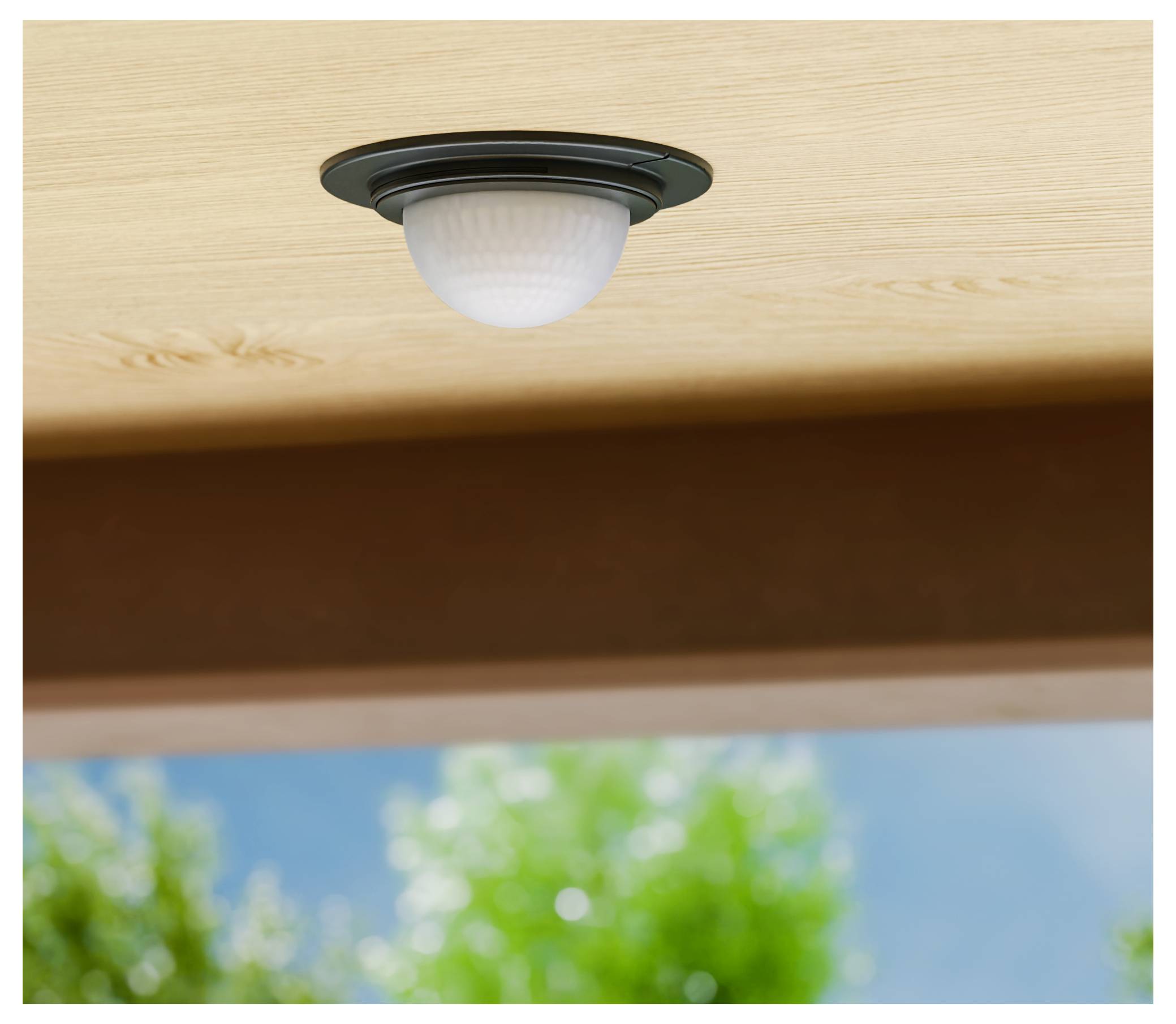

Intelligent technology for installation. Infrared motion detector is 360-1 DE, for outside and inside, ideal for installation in porches and suspended ceilings, 360° angle of detection, range up to 4 m, time and twilight threshold can be set by restrict insertion into the rank can be detection area.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Motion detector
- Cover frame.
