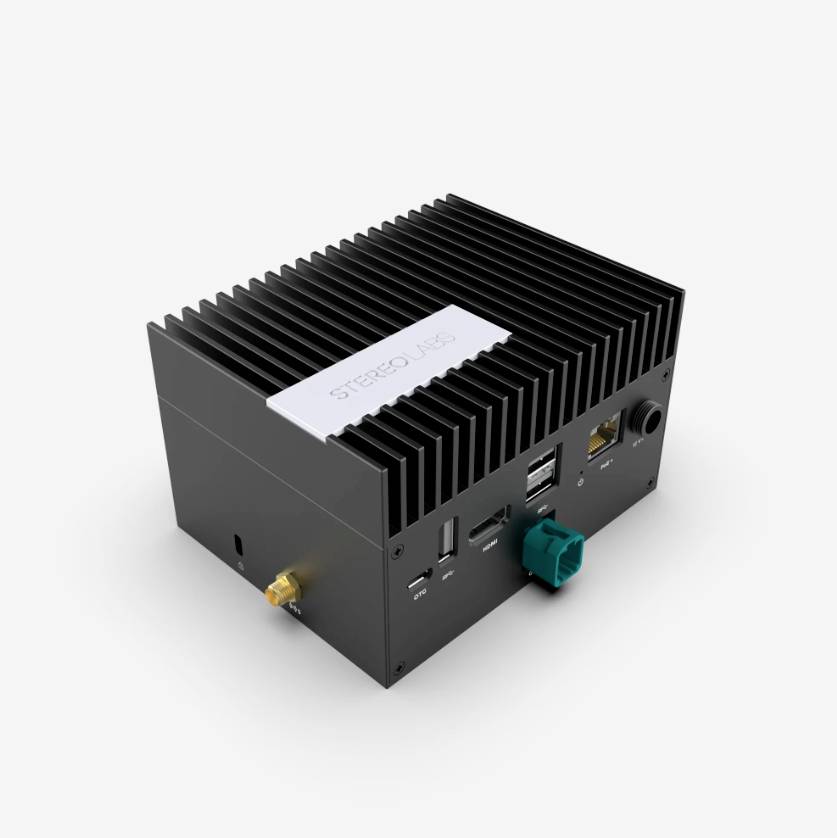

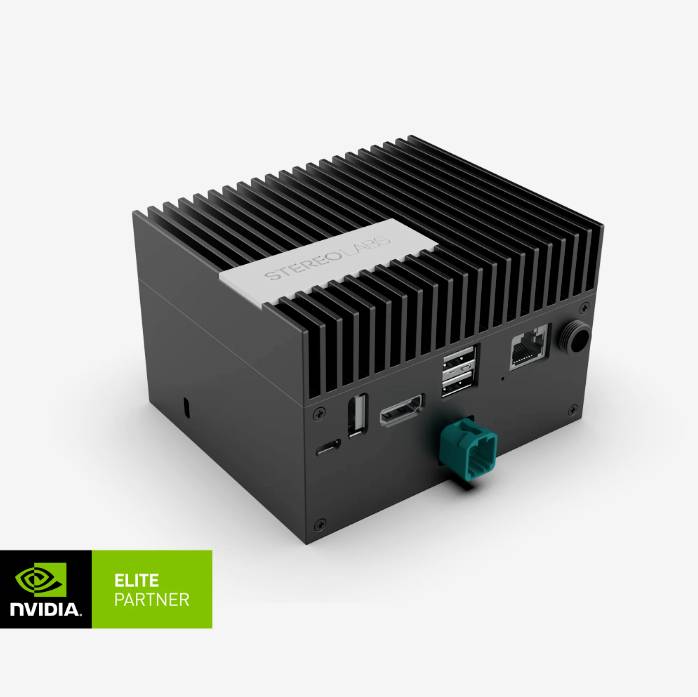

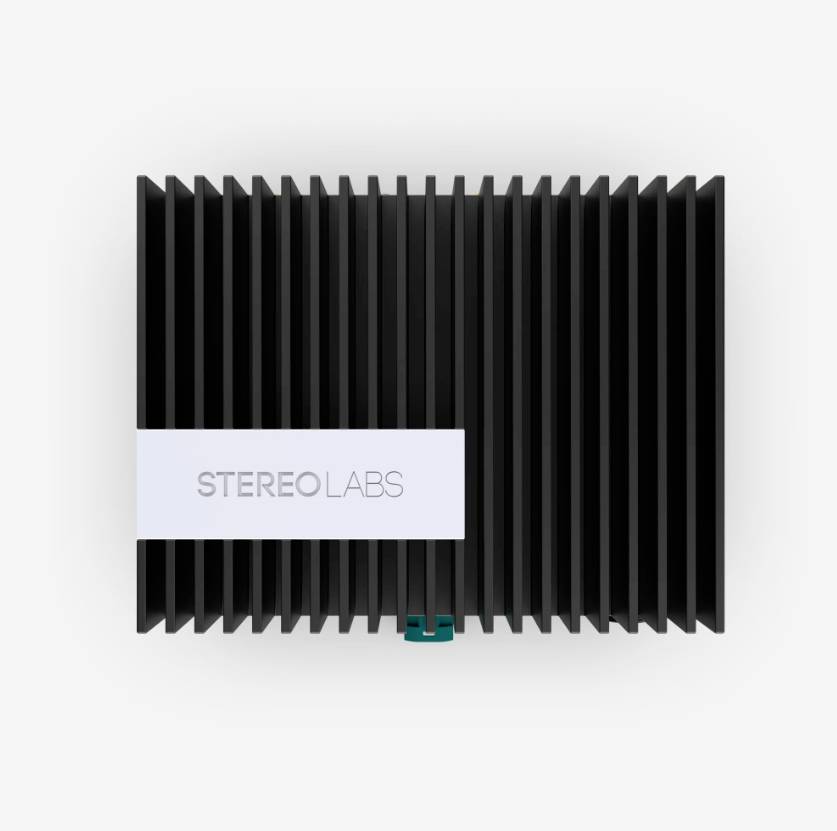

Stereolabs ZED box MBS-ENTB-85-02

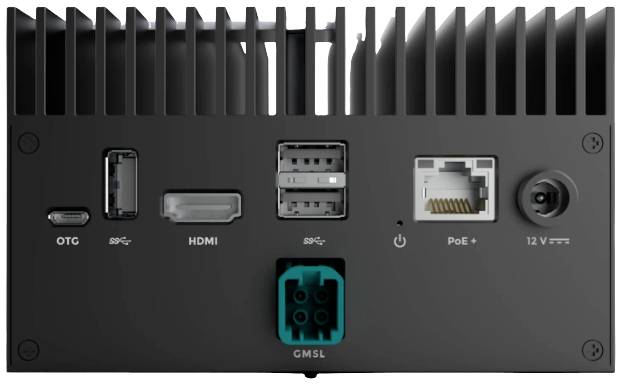

The ZED BOX ORIN™ series offers you the optimal solution for using the new ZED X GMSL2 cameras. With the optional Quad-Port GMSL2 interface you can manage either two ZED X cameras or up to four individual GMSL2 cameras. The ZED Box Jetson Orin™ NX is perfect for indoor and outdoor applications thanks to a variety of I/O options such as USB 3.2, HDMI and PoE+. With the latest RTK-GNSS technology, it now also enables you to use highly precise, autonomous navigation. Wi-Fi 6 and LTE/5G compatibility is offered by M.2 E-Key modules with 5 antenna ports, which ensure low latency and reliable wireless data transfer. Integrated PoE+ and the ZED HUB remote control accelerate the deployment and management of multi-camera edge implementations in digital twin and Smart building projects.

Nvidia® JETSON ORIN™ NX 16GB Specifications:
Nvidia® JETSON™ ORIN NX 16 GB module
AI power: 100 TOPS
GPU: 1,024-core Nvidia® Ampere™ architecture with 32 tensor cores @918MHz
CPU: 8-core Arm® Cortex®-A78AE @2GHz
DL accelerator: 2xNVDLA v2 @614MHz
16 GB LPDDR5 102.4 GB/s memory
