Stiebel Eltron 075115 BGC 075115

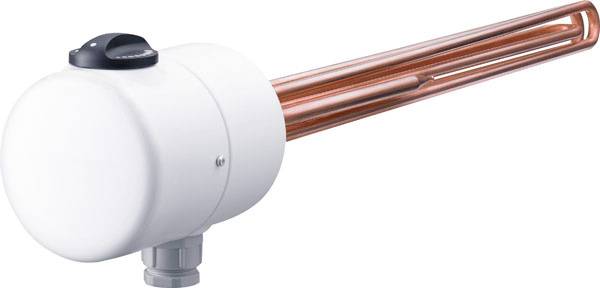

Screw-in heating element for the stand storage SB, SBB and SBP. Can also be used in heating systems in accordance with DIN 4751 and drinking water heating systems in accordance with DIN 4753 (observe immersion depth). Screw-in heating element with enclosed extension G1 1/2 x 45 mm for the screw-in possibility through the heat insulation. Continuous temperature setting from approx. 10 degrees C to 80 degrees C (depending on the installation position), temperature limitation to 45/60/80 degrees C possible. Built-in temperature controller with safety temperature limiter (combination) with all-pole cut-off. Heating element materials/thermowell: CU. Screw-in connection: CU Zn (brass) thread G 1 1/2 with PTFE seal. Permissible operating pressure 1.0 MPa. Quality and safety marks: VDE/GS mark, radio protection sign, IP44 (splash-proof).
