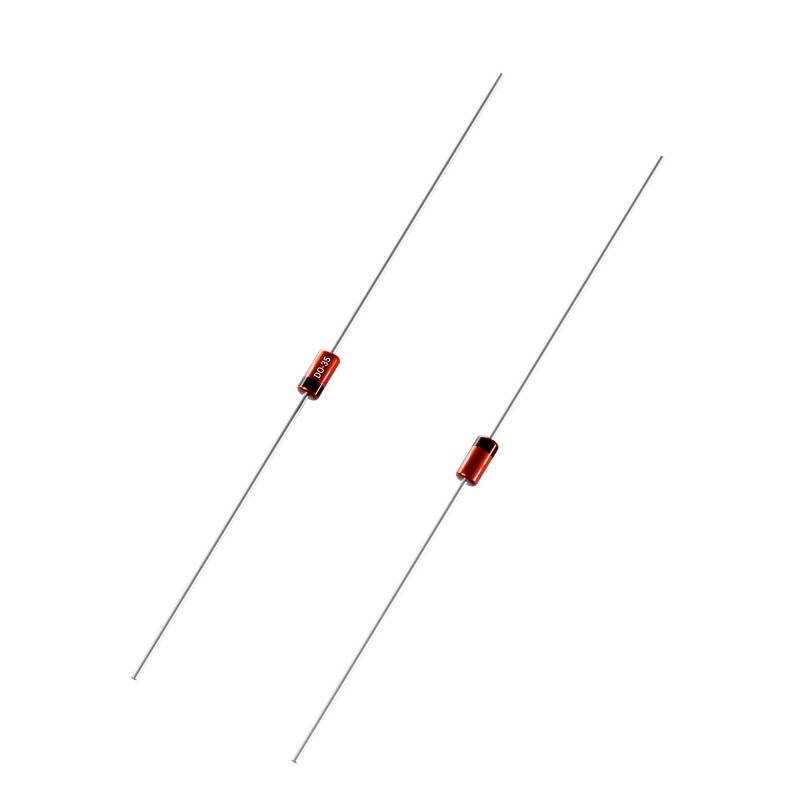

Buy STMicroelectronics DB3 = D30 = ER900 Thyristor (SCR) - DIAC DO 35 50 µA 32 V

A blue bus is driving along a motorway at high speed. Trees and a clear sky can be seen in the background.

Image similar

Electronic symbol and drawing of a diode. Dimensions: 26 mm, 3.9 mm, 26 mm, from left to right. Diode is represented by a line with an arrow.

1/2

Image similar

Enclosure

DO 35

Output voltages

5 V

Mounting type

Through-hole

Product type

Thyristor (SCR) - DIAC

Type

DB3 = D30 = ER900

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

2370 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 30

Total (€ 0.08 / piece)

€ 2.40

plus VAT.

Report legal concerns

Technical specifications

Type: DB3 = D30 = ER900

Enclosure: DO 35

Manufacturer: STMicroelectronics

Manuf. code: STM

Gate trigger voltage U(GT): 32 V

Gate trigger current I(GT): 50 µA

Reverse leakage current I(r): 10 µA

Current peak output: 2 A

Slew rate: 2 µs

Output voltages: 5 V

Mounting type: Through-hole

Operating temperature (max.): +125 °C

Operating temperature (min.): -40 °C

Content: 1 pc(s)

Type: DB 3 (= D 30/ ER 900)

Casing: DO 3

Product type: Thyristor (SCR) - DIAC

Documents & Downloads

Datasheet

Datasheet 186406 STMicroelectronics DB3 = D30 = ER900 Thyristor (SCR) - DIAC DO 35 50 µA 32 V

User & Safety Instructions

User & Safety Instructions 186406 STMicroelectronics DB3 = D30 = ER900 Thyristor (SCR) - DIAC DO 35 50 µA 32 V

Description

Diode for AC current.
