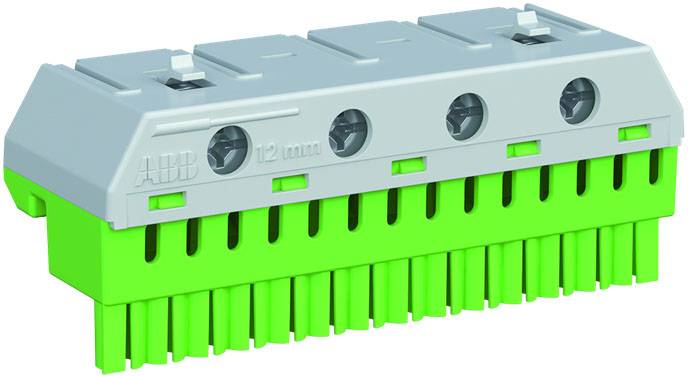

Striebel & John 2CPX062760R9999 ZK144G Terminal block flexible: 1.5-25 mm² fixed: 1.5-25 mm² Number of pins: 18 1 pc(s)
Packaging type
Piece
Product type
Terminal block
Cross section (flexible) (min.)
1.5 mm²
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (min.)
1.5 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Terminal block
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
25 mm²
- Number of pins
18
- Factory colour
Green
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Content
1 pc(s)
- Dim
(L x W) 31 mm x 82 mm
- Manufacturer part #
2CPX062760R9999
4..16
- Connection
Jack connector
- Nominal voltage
230 V
- Width
82 mm
- Length
31 mm
- Connector clip features
Quick-release
- Weight
0.08
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2318730 Striebel & John 2CPX062760R9999 ZK144G Terminal block flexible: 1.5-25 mm² fixed: 1.5-25 mm² Number of pins: 18 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2318730 Striebel & John 2CPX062760R9999 ZK144G Terminal block flexible: 1.5-25 mm² fixed: 1.5-25 mm² Number of pins: 18 1 pc(s)
Description
PE Quick plug-in terminal for quick plug-in carrier, tool-free mounting through simple plug-in and snap-in technology, clear color coding: PE = yellow-green, flexible terminal system, number of terminals: 14 x 1.5 - 4 mm² (spring-clamp technology) + 4 x 2.5 to 25 mm² (screw connection technology), outer dimensions H x W x D in mm: 32 x 82 x 31, simple labeling of the terminal points (DIN VDE 0603 part 1) with pre-printed, self-adhesive number strips.
