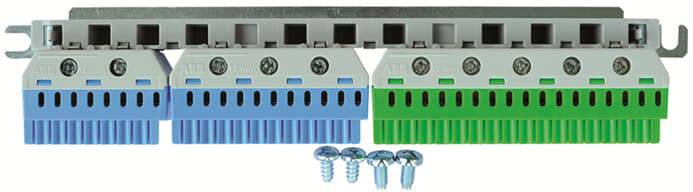

Striebel & John 2CPX063133R9999 ZK225 N/PE for patch panel, center N=14.10 Pole PE=22 Pole N/PE busbar No. of rows 46 Mu
Product type
N/PE busbar
Factory colour
Multicolour
Cross section
25 mm²
Dim
(Ø) 25 mm
Nominal current
63 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Color: Multicolor
- Number of clamping points: 46
- Suitable for flexible conductors: Yes
- Suitable for multi-wire conductors: Yes
- Cable diameter 25;;25
- Conductor cross-section flexible (fine-wired) with wire-end sleeve: 1.5;;25
- Conductor cross-section rigid (single/multi-wire): 1.5;;25
- With operating levers: No.
- Nominal cross-section: 1.5;;25
- AWG-Range: 4;;16
- Suitable for solid conductors: Yes
- Nominal voltage 230
- Nominal current 63
- Product type
N/PE busbar
- Factory colour
Multicolour
- Cross section
25 mm²
- Dim
(Ø) 25 mm
- Nominal current
63 A
- Nominal current - rounded value
63 A
- No. of rows
46
- Content
1 pc(s)
- (Ø)
25 mm
- Weight
0.33
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329315 Striebel & John 2CPX063133R9999 ZK225 N/PE for patch panel, center N=14.10 Pole PE=22 Pole N/PE busbar No. of rows 46 Mu
User & Safety Instructions
User & Safety Instructions 2329315 Striebel & John 2CPX063133R9999 ZK225 N/PE for patch panel, center N=14.10 Pole PE=22 Pole N/PE busbar No. of rows 46 Mu
Description
N/PE Quick-plug-in terminal set for distributor fields, consisting of: Quick-plug carrier: ZK14 and Quick-plug terminals: ZK113B: N 3 x 25 + 11 x 4 mm², ZK82B: N 2 x 25 + 8 x 4 mm², ZK175G: PE 5 x 25 + 17 x 4 mm².
