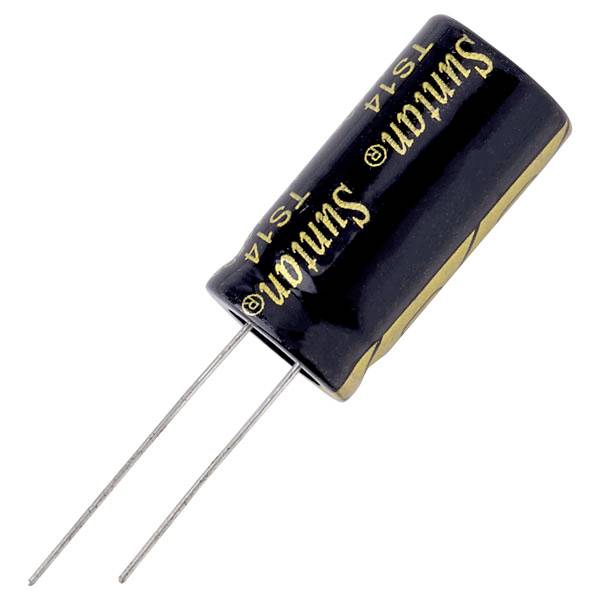

Suntan TS14011J471MSB0B0R Electrolytic capacitor 5 mm 470 µF 63 V 20 % (L x W) 25 mm x 12 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Capacity (elec.)
470 µF
Nominal voltage
63 V
CS
5 mm
Dim
(L x W) 25 mm x 12 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.45
30
11% = € 0.05
€ 0.40
50
13% = € 0.06
€ 0.39
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.45 / piece)
€ 4.50
plus VAT.
Highlights & Details
Suntan TS14011J471MSB0B0R 470µF 20% 63V 105°C 2K hrs Radial Alum Elec Capacitor
Our service for you
Technical specifications
- Product type
Electrolytic capacitor
- CS
5 mm
- Dim
(L x W) 25 mm x 12 mm
- Capacity (elec.)
470 µF
- Nominal voltage
63 V
- Tolerance ±
20 %
- Content
1 pc(s)
- Material
Aluminium
- Width
12 mm
- Length
25 mm
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
TS14011J471MSB0B0R
Documents & Downloads
Datasheet
Datasheet 3014492 Suntan TS14011J471MSB0B0R Electrolytic capacitor 5 mm 470 µF 63 V 20 % (L x W) 25 mm x 12 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3014492 Suntan TS14011J471MSB0B0R Electrolytic capacitor 5 mm 470 µF 63 V 20 % (L x W) 25 mm x 12 mm 1 pc(s)
Description
Features
- Tolerance 20%
- Wide temperature range
- Long life
- Low impedance
