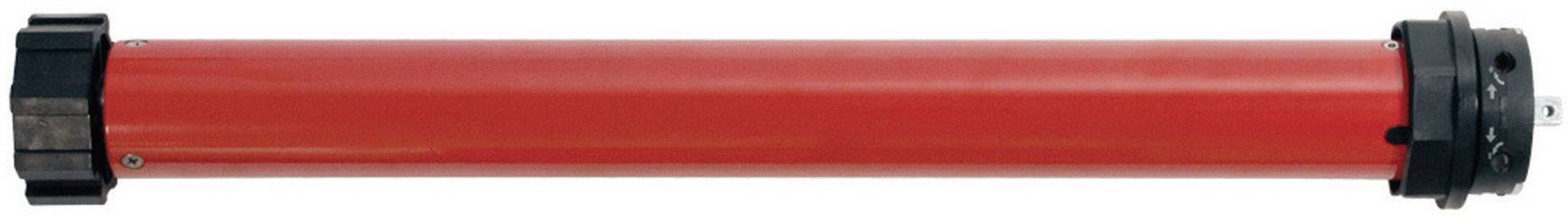

Superrollo Professional RM20MM SR20225 Tubular motor 60 mm 44 kg 20 Nm
EAN:
Part number:
Item no:
Total (€ 57.99 / piece)
€ 57.99
incl. VAT
14-day return policy included
Highlights & Details
Tubular motor 20 Nm/SW60 RM20MM
- Easy installation
Technical specifications
- Protection class IP44
- Switch-on duration: 4 min
- Cable length: 2 m
- Shaft type: SW40
- End-switch range: 22 U
- Shutter surface: 8 m on plastic shutters (4 kg/m²), 5 m on aluminium/wood shutters (7 kg/m²).
- Product type
Tubular motor
- Suitable for shutter axle Ø
60 mm
- Dim
(Ø x L) 45 mm x 500 mm
- Rotational speed
15 U/min
- Length
500 mm
- Tensile force (max.)
44 kg
- Max. current consumption
0.64 A
- Limit switched
mechanical
- Obstacle detection
No
- Operating voltage
230 V AC
- (Ø)
45 mm
- Hub
Not required
- Torque
20 Nm
- Lead length
2 m
- Rotational speed
15 RPM.
- Current consumption
0.64 A
- Traction (max.) (details)
44 kg
- Nominal power
145 W
- Operating voltage
230 V/ 50 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 646762 Superrollo Professional RM20MM SR20225 Tubular motor 60 mm 44 kg 20 Nm
Certificate
Certificate 646762 Superrollo Professional RM20MM SR20225 Tubular motor 60 mm 44 kg 20 Nm
Description
Convenient - automation of the shutter, in order to open and close it by pressing a button or on a timer. Secure - 5 year guarantee. Simple installation and start-up. Insert into the existing roller shutter shaft, connect, adjust, and it's done!
Features
- Incl. adapter, driver, bearing, safety clip and setting tool.
Scope of delivery
- Tubular motor
- User manual.
