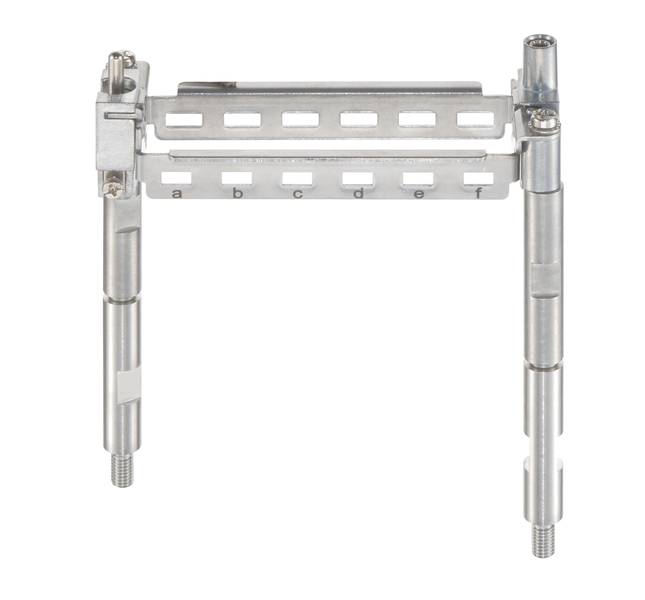

Support frame 09400169934 HARTING Content: 1 pc(s) Support frame
Packaging type
Piece
Product type
Support frame
Type
09 40 016 9934
Manufacturer part #
09400169934
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Net weight: 252 g
- Conductor cross-section: 4 ... 10 mm² PE terminal power side;1 ... 2.5 mm² PE terminal (signal)
- Tightening torque: 0,5 Nm mounting screws M3;1,5 Nm fixing screws M4;6 Nm bolts 0,8 Nm PE terminal 1 ... 2.5 mm2;1,5 Nm PE terminal 4 ... 10 mm2
- Accessory type: Retaining frame
- Accessory description: For up to 6 individual modules;a ... f
- Material accessories: Zinc die-cast; stainless steel
- Design size 16 B
- Packaging type
Piece
- Type
09 40 016 9934
- Product type
Support frame
- Manufacturer part #
09400169934
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Max. temperature
+125 °C
Other
Other
Other
Documents & Downloads
Datasheet
Datasheet 3008226 Support frame 09400169934 HARTING Content: 1 pc(s) Support frame
Datasheet 3008226 Support frame 09400169934 HARTING Content: 1 pc(s) Support frame
User & Safety Instructions
User & Safety Instructions 3008226 Support frame 09400169934 HARTING Content: 1 pc(s) Support frame
Description
Mounting frames, for up to 6 individual modules, a ... f, size: 16 B.
