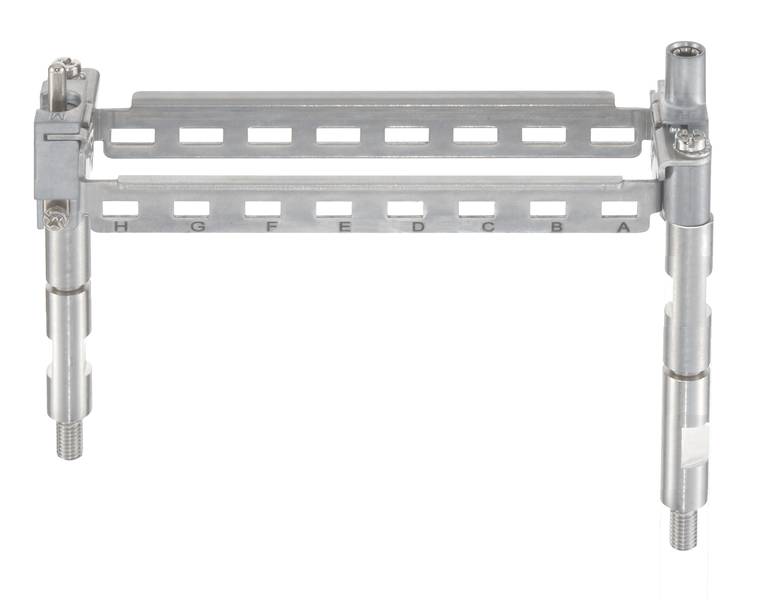

Support frame 09400249935 HARTING Content: 1 pc(s) Support frame
Packaging type
Piece
Product type
Support frame
Type
09 40 024 9935
Manufacturer part #
09400249935
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Net weight: 150 g
- Note: Caution! Can only be used in conjunction with HAN® 24 HPR EasyCon short housing!
- Conductor cross-section: 4 ... 10 mm² PE terminal power side;1 ... 2.5 mm² PE terminal (signal)
- Tightening torque: 0,5 Nm mounting screws M3;1,5 Nm fixing screws M4;6 Nm bolts 0,8 Nm PE terminal 1 ... 2.5 mm2;1,5 Nm PE terminal 4 ... 10 mm2
- Accessory type: Retaining frame
- Accessory description: For up to 8 individual modules;A … H;low design
- Material accessories: Zinc die-cast; stainless steel
- Design size 24 B
- Housing series: HAN® HPR EasyCon
- Packaging type
Piece
- Type
09 40 024 9935
- Product type
Support frame
- Manufacturer part #
09400249935
- Content
1 pc(s)
- Material
Stainless steel
- Max. temperature
+125 °C
Other
Other
Other
Documents & Downloads
Datasheet
Datasheet 3008240 Support frame 09400249935 HARTING Content: 1 pc(s) Support frame
Datasheet 3008240 Support frame 09400249935 HARTING Content: 1 pc(s) Support frame
User & Safety Instructions
User & Safety Instructions 3008240 Support frame 09400249935 HARTING Content: 1 pc(s) Support frame
Description
Bracket, for up to 8 single modules, A H, low design, size: 24 B.
