SVS Nachrichtentechnik 1-channel Radio kit incl. remote control Max. range (open field): 250 m 12 V, 24 V
EAN:
Part number:
Item no:
Highlights & Details
1-channel radio set switching mode
- Radio set of transmitter and receiver
- Made in Germany
- Small design of transmitter and receiver
Technical specifications
- Product type
Radio kit
- Features
incl. remote control
- Type
4064161285696
- Operating voltage
12 V
24 V
- Channels
1
- Version
Assembled
250 m
- Transmission frequency
433,62 und 434,22 MHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2147091 SVS Nachrichtentechnik 1-channel Radio kit incl. remote control Max. range (open field): 250 m 12 V, 24 V
User & Safety Instructions 2147091 SVS Nachrichtentechnik 1-channel Radio kit incl. remote control Max. range (open field): 250 m 12 V, 24 V
Description
The 1-channel radio set contains a 2-channel transmitter (192402) and a 1-channel receiver (646454). This combination enables the radio set to be operated in switching mode. One transmitter button switches the receiver output permanently active and the other button switches it permanently inactive again.
Both normally open and normally closed contacts are available at the receiver for the output. LEDs on the transmitter and receiver provide information about the function and transmission behavior and indicate the status of the power supply.
The products of the SH-12 radio series work extremely without interference due to their special transmission characteristics. The interference-resistant radio transmission with extremely short response times can achieve very high ranges.
For severe narrow-band interference or the use of several parallel radio systems, the working frequency can be set to suit individual requirements. The SH-12 radio series can be operated both unidirectional and bidirectional. In bi-directional communication, the transmitter automatically adjusts its transmission behavior to the quality of the radio link.
This text is machine translated.
Both normally open and normally closed contacts are available at the receiver for the output. LEDs on the transmitter and receiver provide information about the function and transmission behavior and indicate the status of the power supply.
The products of the SH-12 radio series work extremely without interference due to their special transmission characteristics. The interference-resistant radio transmission with extremely short response times can achieve very high ranges.
For severe narrow-band interference or the use of several parallel radio systems, the working frequency can be set to suit individual requirements. The SH-12 radio series can be operated both unidirectional and bidirectional. In bi-directional communication, the transmitter automatically adjusts its transmission behavior to the quality of the radio link.
This text is machine translated.
Features
- 2 adjustable frequencies
- Safe and low-interference signal transmission
- Radio system with feedback
- Operating voltage transmitter: 12 V DC alkaline battery
- Receiver operating voltage 12 – 24 V DC / 12V AC
- Outputs: Potential-free changeover contacts (230V AC 10A / 30V DC 5A)
- Temperature range: -20°C to +65°C.
Scope of delivery

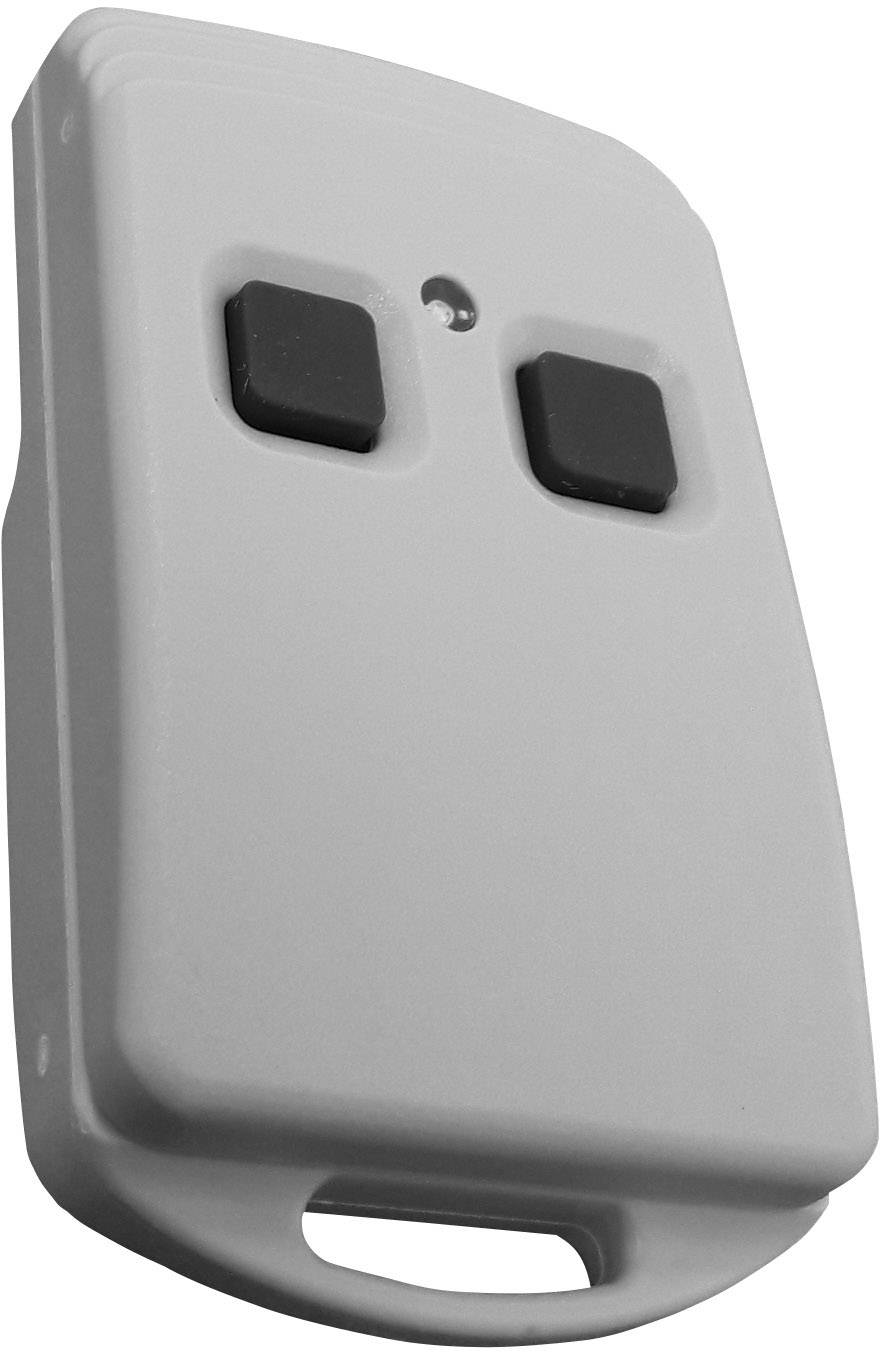

- Handheld transmitter

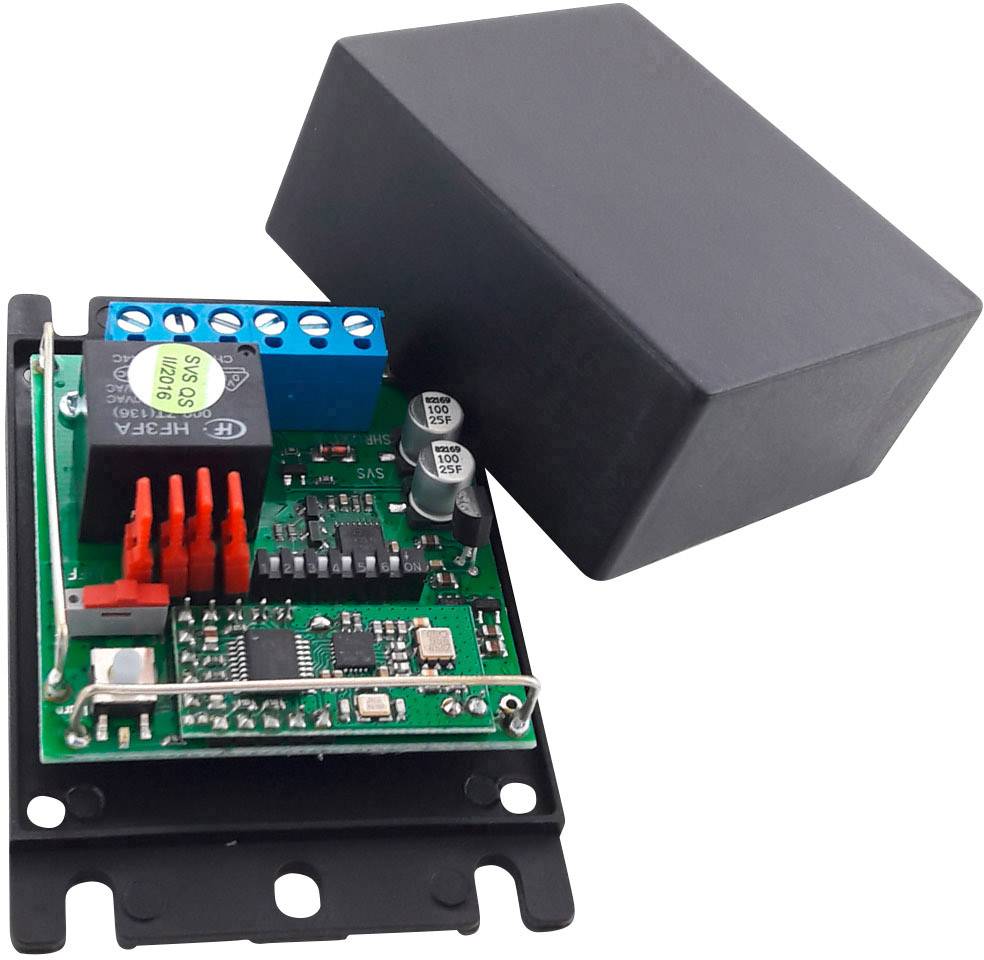

- Radio receiver with integrated bracket antenna
- User manual.
Hints
This set can be extended as desired with products of the SH-12 series.
Alternatively, other operating modes can be set on the receiver.
The free-field range is only achieved under optimum conditions.
Caution: SH-7 Series products are not compatible with SH-12 Series products.
