SVS Nachrichtentechnik 4-channel Radio kit incl. remote control Max. range (open field): 1000 m 12 V, 30 V
EAN:
Part number:
Item no:
Highlights & Details
4-channel radio set SHT-12 C4 hand-held transmitter incl. SHR-12 L4 receiver
- Radio set of transmitter and receiver
- Made in Germany
- Range up to 1000 m outdoors
Technical specifications
- Product type
Radio kit
- Features
incl. remote control
- Type
4064161285689
- Operating voltage
12 V
30 V
- Channels
4
- Interfaces
Radio
- Version
Assembled
1000 m
- Transmission frequency
433,62 und 434,22 MHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2147090 SVS Nachrichtentechnik 4-channel Radio kit incl. remote control Max. range (open field): 1000 m 12 V, 30 V
User & Safety Instructions 2147090 SVS Nachrichtentechnik 4-channel Radio kit incl. remote control Max. range (open field): 1000 m 12 V, 30 V
Description

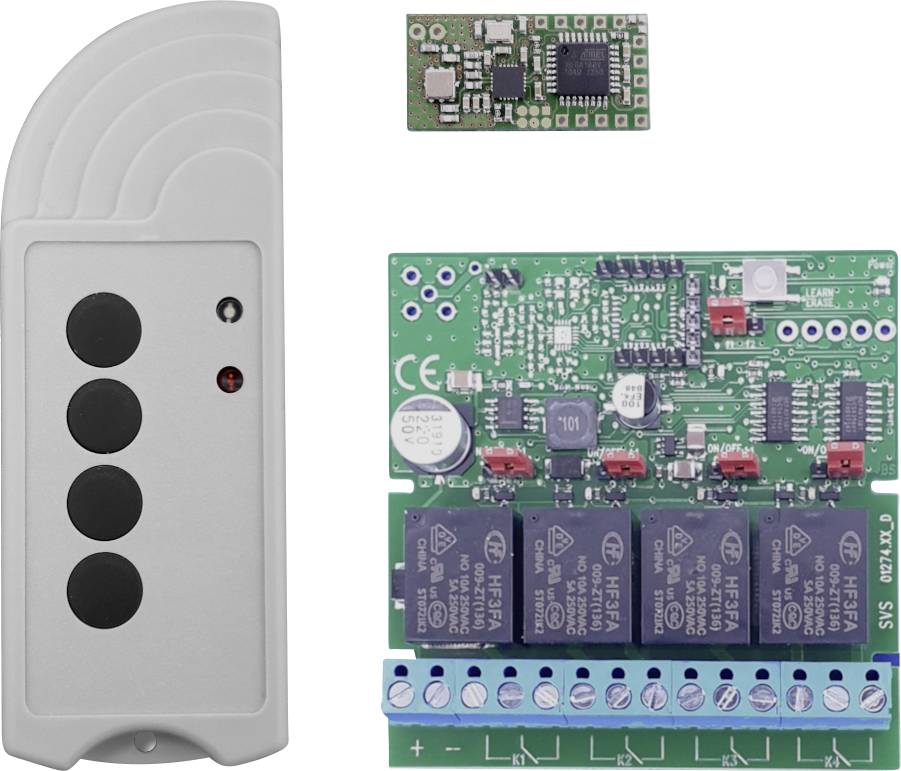

The 4-channel radio set contains a 4-channel hand-held transmitter (646455) and a 4-channel receiver (640537). The combination enables the remote control of up to 4 functions.
The 4 buttons of the transmitter are permanently assigned to the 4 outputs of the receiver. Each output of the receiver consists of a potential-free changeover contact and can be operated either in momentary or toggle mode.
Key operation: Transmitter input and receiver output behave identically. The output is only active as long as the button is pressed.
Toggle mode: Pressing a button activates the output permanently. Another press of the button switches the output permanently inactive again.
Both normally open and normally closed contacts are available for connection at the receiver for each output. LEDs on the transmitter and receiver provide information about the function and transmission behavior and indicate the status of the power supply.
The products of the SH-12 radio series work extremely without interference due to their special transmission characteristics. With the interference-resistant radio transmission with extremely short response times ranges of up to 1000m can be achieved.
For severe narrow-band interference or the use of several parallel radio systems, the working frequency can be set to suit individual requirements. The SH-12 radio series can be operated both unidirectional and bidirectional. In bi-directional communication, the transmitter automatically adjusts its transmission behavior to the quality of the radio link.
This text is machine translated.
The 4 buttons of the transmitter are permanently assigned to the 4 outputs of the receiver. Each output of the receiver consists of a potential-free changeover contact and can be operated either in momentary or toggle mode.
Key operation: Transmitter input and receiver output behave identically. The output is only active as long as the button is pressed.
Toggle mode: Pressing a button activates the output permanently. Another press of the button switches the output permanently inactive again.
Both normally open and normally closed contacts are available for connection at the receiver for each output. LEDs on the transmitter and receiver provide information about the function and transmission behavior and indicate the status of the power supply.
The products of the SH-12 radio series work extremely without interference due to their special transmission characteristics. With the interference-resistant radio transmission with extremely short response times ranges of up to 1000m can be achieved.
For severe narrow-band interference or the use of several parallel radio systems, the working frequency can be set to suit individual requirements. The SH-12 radio series can be operated both unidirectional and bidirectional. In bi-directional communication, the transmitter automatically adjusts its transmission behavior to the quality of the radio link.
This text is machine translated.
Features
- 2 adjustable frequencies
- Safe and low-interference signal transmission
- Radio system with feedback
- Operating voltage transmitter: 12 V DC alkaline battery
- Receiver operating voltage 12 – 24 V DC
- Outputs: Potential-free changeover contacts (230V AC 10A / 30V DC 5A)
- Temperature range: -20°C to +65°C.
Scope of delivery

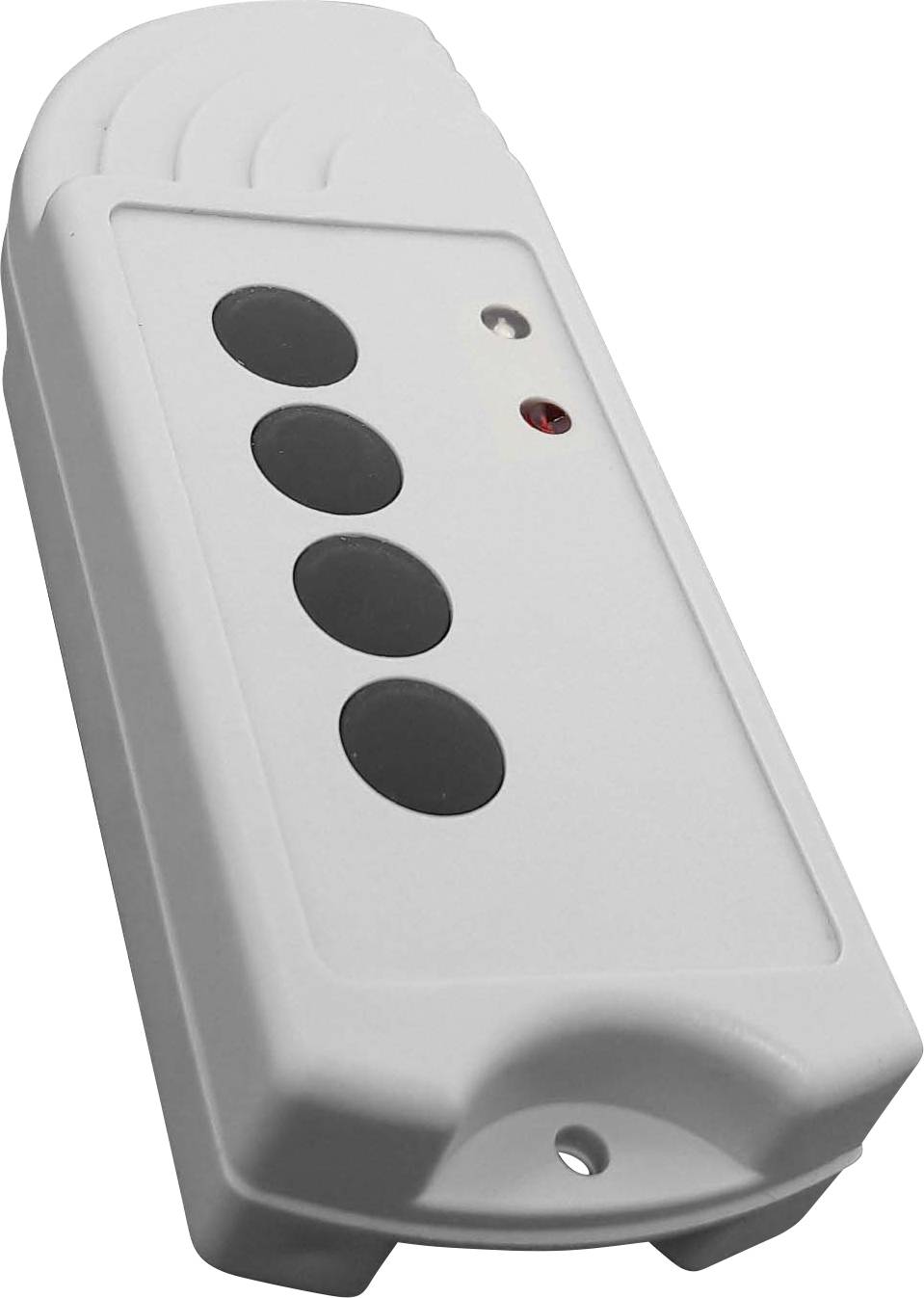

- Handheld transmitter

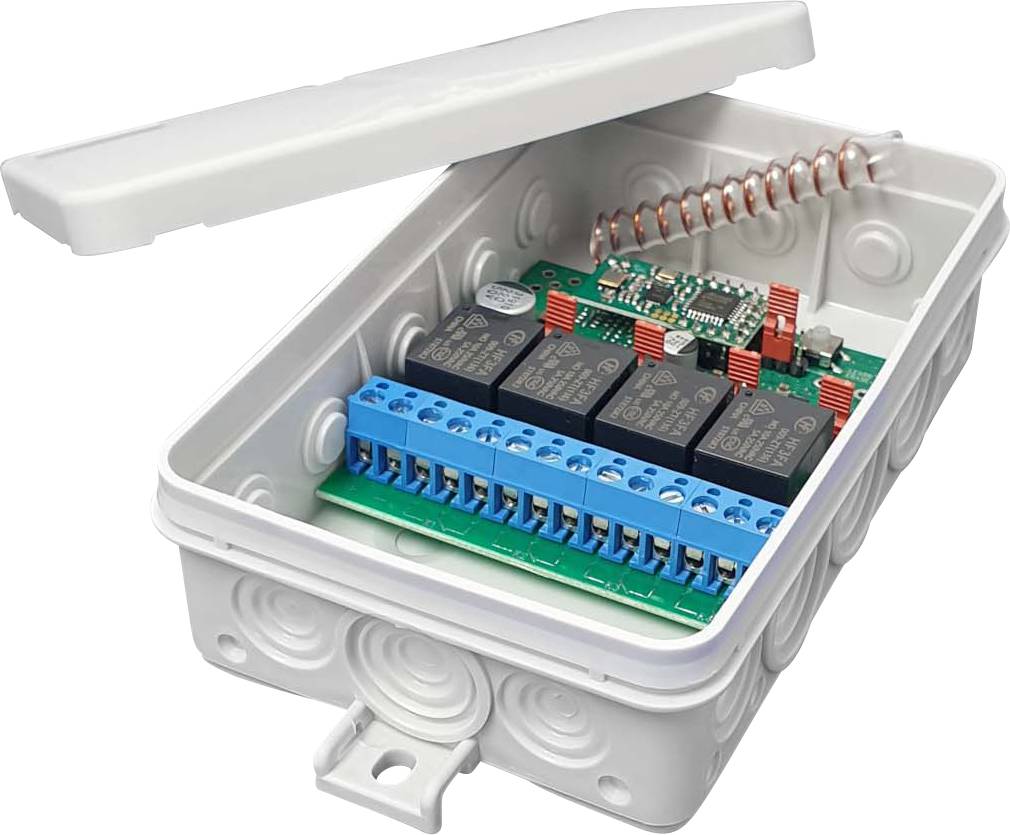

- Radio receiver with integrated λ/4-wire antenna
- User manual.
Hints
This set can be extended as desired with products of the SH-12 series.
The free-field range is only achieved under optimum conditions.
Caution: SH-7 Series products are not compatible with SH-12 Series products.
