SVS Nachrichtentechnik 4-channel Radio kit incl. stationary transmitter Max. range (open field): 750 m 12 V, 24 V

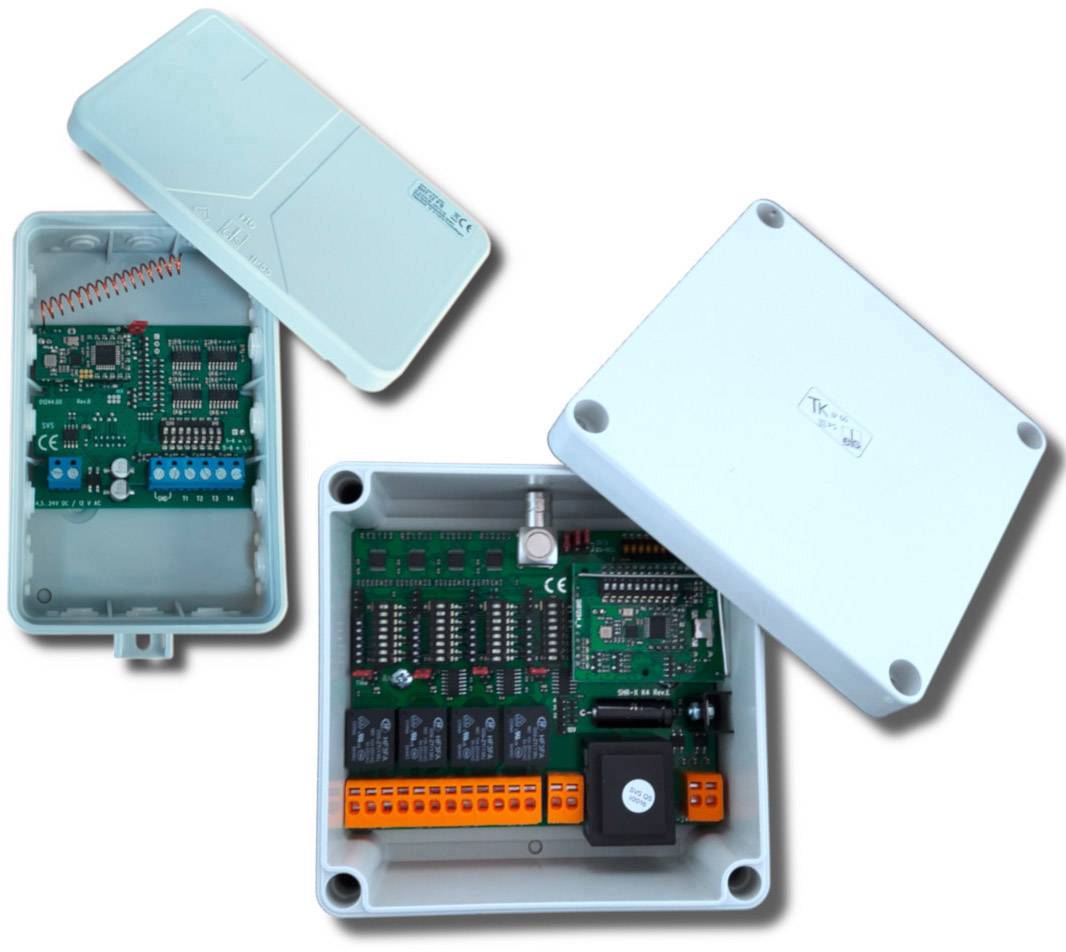

The 4-channel radio set includes a 4-channel radio transmitter (1550004) and a 4-channel multifunction receiver (2148518). The many setting options and functions of these components enable the remote control of up to 4 functions in different application areas.

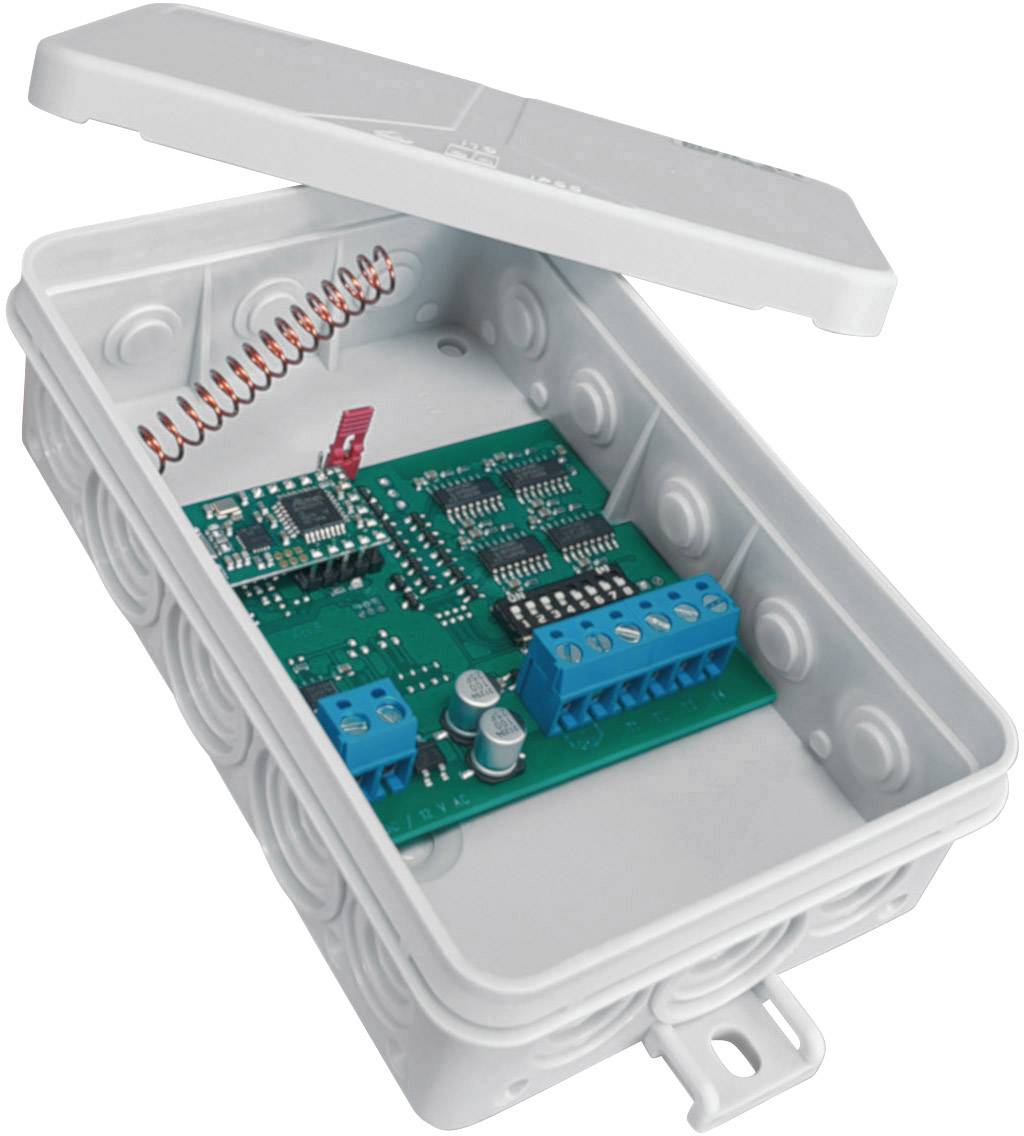

For each input of the wireless transmitter, either the button or the switch mode can be set. In momentary mode, the transmitter sends a signal as long as the input is set. In switching mode, only the setting or resetting of the input is transmitted with individual signals.

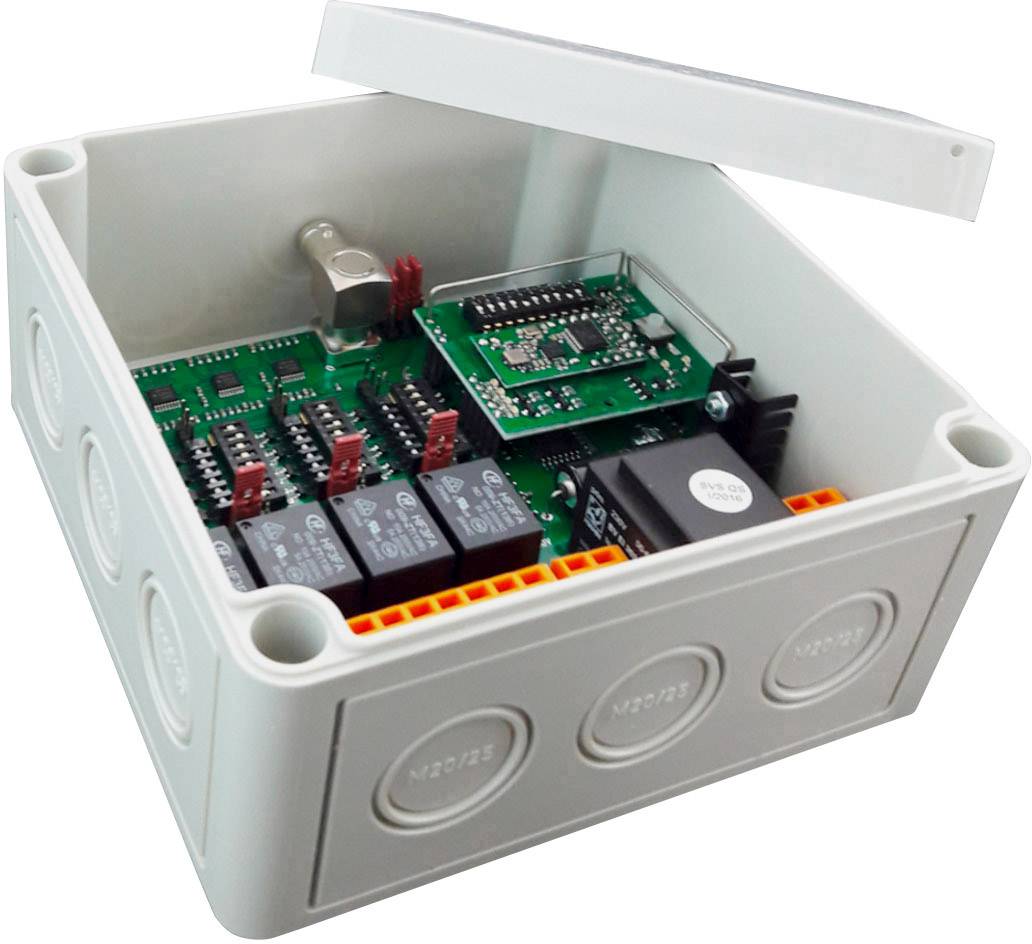

The 4-channel multi-function receiver SHR-12 K4 also allows the use of several operating modes. With each output, a selection field can be used to individually set which transmission commands are to be responded to and which operating mode is to be used. Key, timer, switching and toggle modes are available.

LEDs on the transmitter and receiver provide information about the function and transmission behavior and indicate the status of the power supply.

In order to increase the range to up to 1000m, the radio receiver can be upgraded with an external antenna.

The products of the SH-12 radio series work extremely without interference due to their special transmission characteristics. The interference-resistant radio transmission with extremely short response times can achieve very high ranges.

For severe narrow-band interference or the use of several parallel radio systems, the working frequency can be set to suit individual requirements. The SH-12 radio series can be operated both unidirectional and bidirectional. In bi-directional communication, the transmitter automatically adjusts its transmission behavior to the quality of the radio link.

This text is machine translated.
