Name: Sygonix SY-6330454 RF-CCTV camera set incl. 2 cameras 1280 x 720 p 2.4 GHz
Brand: Sygonix
SKU: 3165227

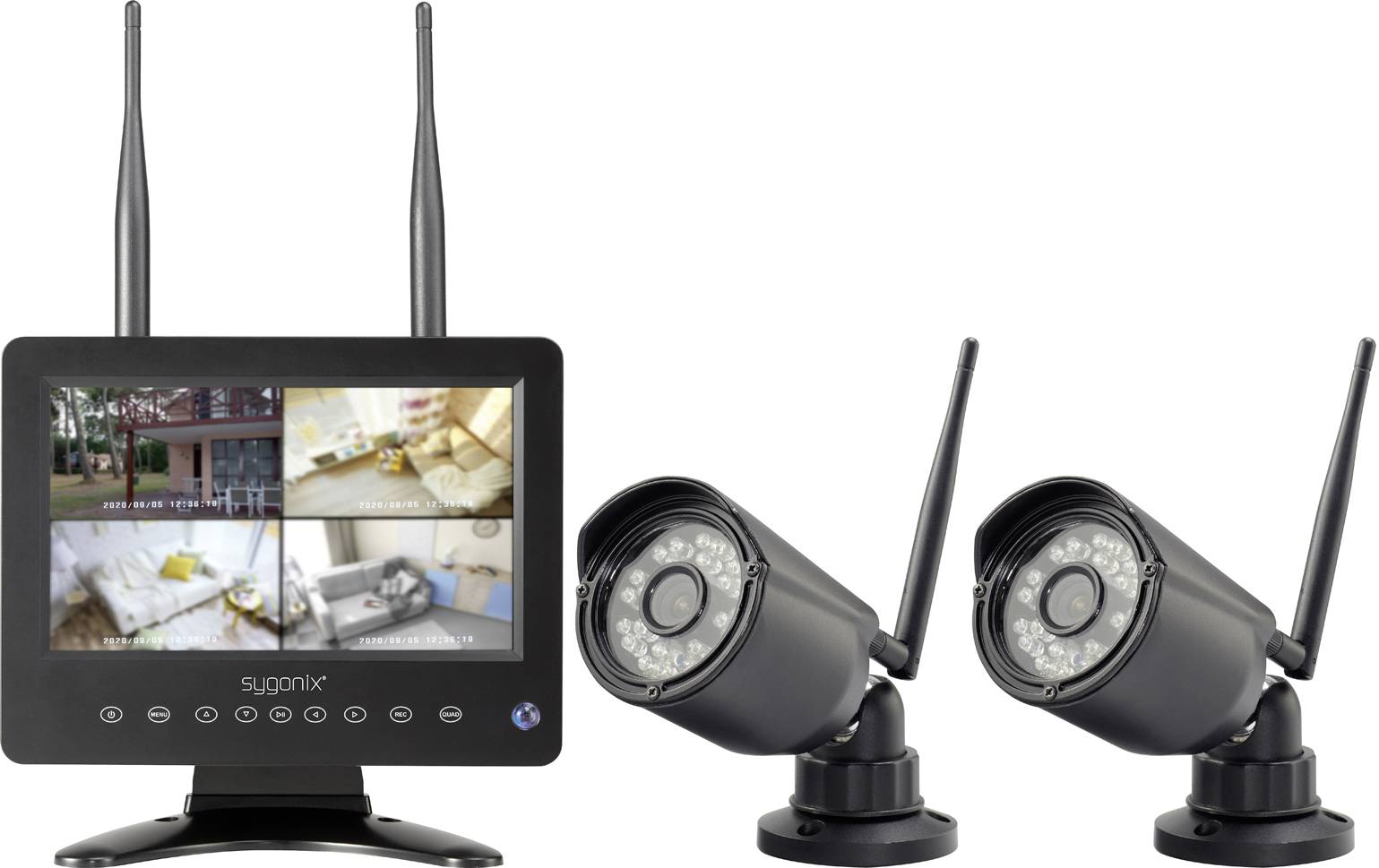

Surveillance kit with a monitor and two wireless cameras, designed for security and monitoring in indoor or outdoor areas.<br><br>Surveillance set with monitor and two wireless cameras, ideal for ensuring safety and monitoring both interior and exterior spaces.

Surveillance camera set with monitor, camera, and remote control. The monitor displays the 'Camera Settings' menu.

Wireless surveillance camera system with monitor, camera, and remote control. The monitor displays a menu with symbols for settings.

A wireless surveillance camera with monitor. The camera has an antenna for signal transmission. The monitor shows connections on the back.

A black barbell with two screw collars at the ends, suitable for weightlifting or home fitness exercises.

'Security camera with night vision LEDs and antenna for wireless surveillance.'

A monitor with two aerials displays a blue screen menu with six icons. Above this is the text 'Camera Setting'.

Side view of a black monitor with two large antennas pointing upwards. The monitor sits on a slender, curved stand.

A black surveillance camera with an antenna, mounted sideways, with a cable connection at the base.

A surveillance system comprising a monitor, camera, remote control, two aerials, two power supplies, cables, and mounting hardware.

A surveillance monitor with four split screens displays camera images from an interior and exterior area.

A surveillance monitor displays a camera view of an exterior area. On the right, the corresponding outdoor camera is mounted on a wall.

A surveillance system with a monitor and four cameras, supporting quad mode, displaying up to four cameras simultaneously.

A hand is holding a smartphone displaying a surveillance camera view with the date '2020/09/05' and time. The screen shows a building.

'Pan-and-tilt surveillance camera: 90° tilt and 360° rotation; suitable for comprehensive all-round monitoring.'

1/15

Our service for you

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Sygonix wireless surveillance set 720P

Supports up to 4 cameras (4x mode)
Incl. 2 cameras
Remote display via iOS & Android
Resolution: 1280 x 720 pixels
Display resolution 800 x 480 pixels

Technical specifications

Monitoring operation:
Display: 17.78 cm (7") TFT LCD (16:9)
NTSC/PAL video standard
Frequency range 2.400 GHz - 2.483 GHz (FHSS)
Reception range: Up to 150 m (line of sight)
Receive sensitivity -89 dBm
Video output: 1-channel CVBS
Audio output: No.
MPEG4 video compression
Recording format ASF
Frame rate for recording: 30 fps with VGA, 20 fps with HD 720p
Storage capacity: SD/SDHC/SDXC cards up to 128 GB
Power supply 12 VDC, 1A
Power consumption: Max. 6 W.
Input values (power supply unit): 100 - 240 VAC, 50/60 Hz, max. 0.4 A.
Output values (power supply unit): 12 VDC, 1 A.
Camera.
Frequency range 2.400 GHz - 2.483 GHz (FHSS)
Transmission power < 17 dBm
Range: Up to 150 m (line of sight)
Protection class IP65
Power supply 5 VDC, 1 A
Power consumption: Max. 3 W.
Motion detection: Through picture detection, max. 10 m.
Input (power supply unit): 100 - 240 VAC, 50/60 Hz, max. 0.3 A.
Output (power supply) 5 VDC, 1 A

Product type: CCTV camera set

CCTV features: IR LEDs
Microphone
Saves footage on SD card

Signal standard: RF

Sensor type: CMOS

Sensor size: 6.35 mm (1/4")

Used at: Outdoors

: 150 m

: IP65

Frequency: 2.4 GHz

Recording mode: Manual
Movement detection
Preset

Focal length: 4,3 mm

Max. viewing angle hor.: 70°

Vertical viewing angle: 70°

Resolution (max.): 1280 x 720 p

Power supply: 230 V (via PSU), included

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3165227 Sygonix SY-6330454 RF-CCTV camera set incl. 2 cameras 1280 x 720 p 2.4 GHz

Conformity certificate

Conformity certificate 3165227 Sygonix SY-6330454 RF-CCTV camera set incl. 2 cameras 1280 x 720 p 2.4 GHz

Warranty Terms

Warranty Terms 3165227 Sygonix SY-6330454 RF-CCTV camera set incl. 2 cameras 1280 x 720 p 2.4 GHz

Description

Up to 150 meters everything in a view
With the Sygonix wireless surveillance set with a visibility range of up to 150 meters, four cameras can be used simultaneously and if needed extended. The transmitted video resolution of the wireless surveillance monitor is 720 pixels and can be individually adjusted per camera. Moreover, the surveillance set also possesses different recording modes: Either manually, according to schedule or practically according to the integrated motion detection.
Automatic transfer via APP
The camera angle is 70° horizontal as well as vertical. Also simultaneous recording and playback is possible. The recordings of up to four channels are automatically saved individually on an SD card, which is not included in delivery. Moreover, they can be viewed quickly and easily on iOS and Android-enabled devices via APP.

This text is machine translated.
