TCS TÜR Control FVK22000300 Door bell camera bus Black
EAN:
Part number:
Item no:
Highlights & Details

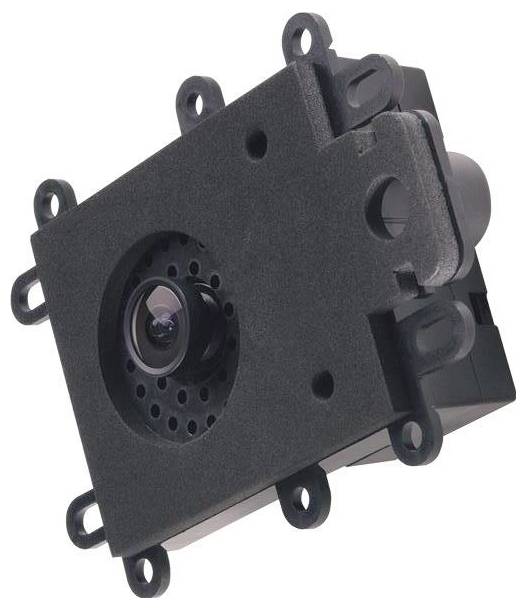

Door intercom bus PANEL-MOUNTED CAMERA AND MOUNTING FRAME
- For easy mounting behind customer-side front panels or in letter-box systems
- Vertical bracket for installation camera FVK220x-0300
- Use in indoor and protected outdoor areas
- Mounting form: Behind front panels provided by the customer
- This text is machine translated.
Technical specifications
- Protection class: IP21 or IP56 in combination with mounting frame VKR10
- Input current 70 mA
- Permissible ambient temperature -20 °C to +50 °C.
- UV resistance: Unlimited
- Front panel thickness 5 mm max.
- Mounting dimensions for the cut-out (H x W) 76 x 72 mm
- Product type
Door bell camera bus
- Mounting type (outdoor)
Surface-mount
- Factory colour
Black
- Resolution
700 TVL
- Width
105 mm
- Height
80 mm
- Depth
35 mm
Documents & Downloads
Datasheet
Datasheet 3766549 TCS TÜR Control FVK22000300 Door bell camera bus Black
User & Safety Instructions
User & Safety Instructions 3766549 TCS TÜR Control FVK22000300 Door bell camera bus Black
Description
Features
- Colour camera with 0.8 cm (1/3 inch) Sony CCD
- Switching color / black-white: Automatic
- 90 degree diagonal view angle
- Focal length f = 3.6 mm
- Light sensitivity: 0.1 lux at F2.0
Hints
PAL, installation, plastic, black
