Name: TDK ACM2012-900-2P-T001 Gleichtaktdrosseln/Filter für Stromleitungen Choke Common mode SMT 0805 220 nH 90 Ω 400 mA 1 pc(
Brand: TDK
SKU: 3555216
Availability: InStock

'A rectangular electronic component with metal ends and a central red coil, possibly an inductor, used in electrical circuits.'

Packaging type

Single

Product type

Choke

Type

SMT

Inductance (L)

220 nH

Max. temperature

105 °C

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

90 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.73 / piece)

€ 0.73

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TDK common mode filter/chokes ACM2012-900-2P-T001

High reliability in temperature range from 40 to +105 °C.
Impedance variation: Extensive range for a wide range of applications.
Common-mode EMI measurement: Suppression of common clock interference possible without signal distortion.
Operating temperature range -40°C to +105°C.
Complies with AEC-Q200.
This text is machine translated.

Technical specifications

Packaging type: Single

Product type: Choke

Features: Common mode

Type: SMT

Type: 0805

Inductance (L): 220 nH

Impedance at 100 MHz: 90 Ω

Test frequency: 100 MHz

Nominal voltage: 50 V DC

Nominal current: 400 mA

Material: Duplex steel

Length: 2 mm

Width: 1.2 mm

Height: 1.2 mm

Min. temperature: -40 °C

Max. temperature: 105 °C

Weight: 0.01 g

Content: 1 pc(s)

Dim: (L x W x H) 2 x 1.2 x 1.2 mm

RoHS-compliant: Yes

Type: Gleichtaktdrosseln/Filter für Stromleitungen

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Impedance at 100 MHz

Type

Inductance (L)

Max. temperature

TDK ACM2012-900-2P-T001 Gleichtaktdrosseln/Filter für Stromleitungen Choke Common mode SMT 0805 220 nH 90 Ω 400 mA 1 pc(s) Single

Item no:3555216

Fast track dispatch on Thu 15 Oct

90 Piece(s)Conrad Electronic

This article

90 Ω

SMT

220 nH

105 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.73^*

TDK ACM1211-701-2PL-TL01 Gleichtaktdrosseln/Filter für Stromleitungen Choke Common mode SMD 1.33 µH 6 mΩ 700 Ω 8 A 1 pc(s) Single

Item no:3555213

Fast track dispatch on Thu 15 Oct

92 Piece(s)Conrad Electronic

700 Ω

SMD

1.33 µH

85 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

TDK ACM12V-701-2PL-TL00 Gleichtaktdrosseln/Filter für Stromleitungen Choke Common mode SMD 7.6 µH 6 mΩ 700 8 A 1 pc(s) Piece

Item no:3555214

Fast track dispatch on Thu 15 Oct

95 Piece(s)Conrad Electronic

700

SMD

7.6 µH

125 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

TDK ACM1513-551-2PL-TLHF Gleichtaktdrosseln/Filter für Stromleitungen Choke Common mode SMD 1.1 µH 4 mΩ 550 Ω 10 A 1 pc(s) Piece

Item no:3555215

Fast track dispatch on Thu 15 Oct

96 Piece(s)Conrad Electronic

550 Ω

SMD

1.1 µH

85 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

TDK ACM7060-701-2PL-TL01 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD 2824 1.5 µH 15 mΩ 700 Ω 4 A 1 pc(s)

Item no:3555224

Fast track dispatch on Thu 15 Oct

95 Piece(s)Conrad Electronic

700 Ω

SMD

1.5 µH

85 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.29^*

TDK ACM70V-701-2PL-TL00 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD 2824 7.5 µH 15 mΩ 700 Ω 4 A 1 pc(s)

Item no:3555225

Fast track dispatch on Thu 15 Oct

74 Piece(s)Conrad Electronic

700 Ω

SMD

7.5 µH

125 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

TDK ACM90V-701-2PL-TL00 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD 6.9 mH 700 Ω 5 A 1 pc(s) Tape on Mini reel

Item no:3555227

Fast track dispatch on Thu 15 Oct

90 Piece(s)Conrad Electronic

700 Ω

SMD

6.9 mH

125 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.49^*

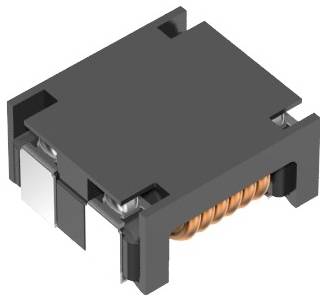

TDK ACM1211-102-2PL-TL01 Gleichtaktdrosseln/Filter für Stromleitungen Choke High current 33.7 µH 14 mΩ 6 A 1 pc(s) Piece
