Name: TDK-Lambda PXC-M10-48WS15 DC/DC converter (print) 15 V 670 mA Content 1 pc(s)
Brand: TDK-Lambda
SKU: 2255880
Availability: BackOrder

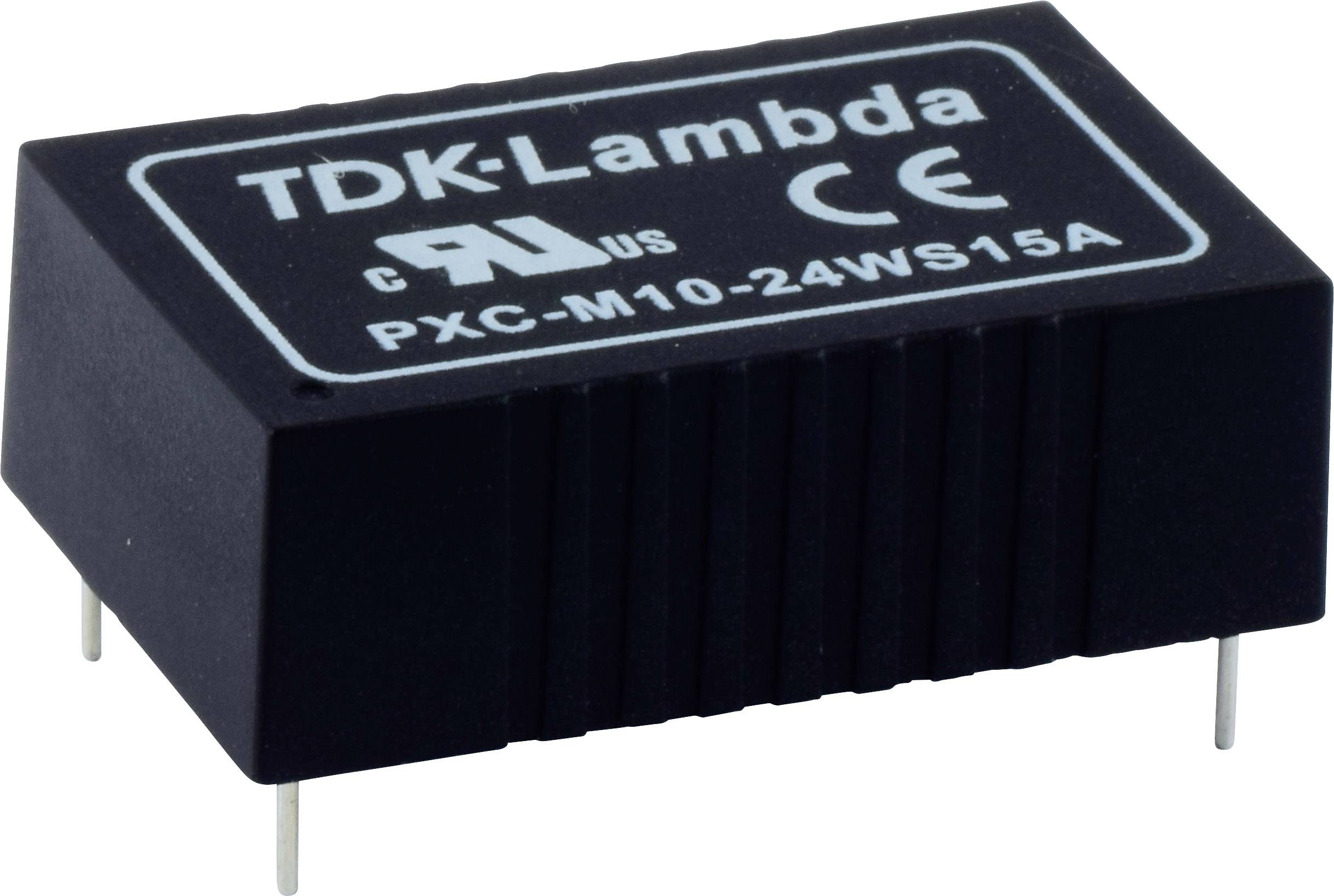

Black TDK-Lambda voltage converter with 'PXC-M10-24WS15A' inscription, CE and UL certification symbols, four connection pins.

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu, 11 Feb 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 63.99 / piece)

€ 63.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DC DC Converters

Medical approval according to 60601-1 (3rd Edition)2MOPP, 5kVac insulation for 1 minuteLow patient leakage current 0.25 < μACompact medical 4:1 DC-DC converter (24V/48Vnom.)

Technical specifications

Product type: DC/DC converter (print)

Type: PXC-M10-48WS15

Min. input voltage: 18 V

Input voltage (max.): 75 V

Output voltages: 15 V

Max. output current: 670 mA

Output current (max.) - rounded: 670 mA

Efficiency (max.): 89 %

Insulation voltage: 5000 V AC

Enclosure: DIP 24

Operating temperature (min.): -40 °C

Operating temperature (max.): +77 °C

Dim: (L x W x H) 31.8 x 20.3 x 10.2 mm

Height: 10.2 mm

Length: 31.8 mm

Width: 20.3 mm

RoHS-compliant: Yes

Weight: 14 g

Content: 1 pc(s)

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Min. input voltage

Output current (max.) - rounded

Output voltages

TDK-Lambda PXC-M10-48WS15 DC/DC converter (print) 15 V 670 mA Content 1 pc(s)

Item no:2255880

Dispatches on Thu, 11 Feb 2027

Conrad Electronic

This article

75 V

18 V

670 mA

15 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 63.99^*

TDK-Lambda PXC-M03-24WD12 DC/DC converter (print) 12 V 125 mA Content 1 pc(s)

Item no:2255870

Dispatches on Fri 30 Oct

24 Piece(s)Conrad Electronic

36 V

9 V

125 mA

12 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 51.99^*

TDK-Lambda PXC-M03-24WS12 DC/DC converter (print) 12 V 250 mA Content 1 pc(s)

Item no:2255863

Dispatches on Thu, 11 Feb 2027

Conrad Electronic

75 V

18 V

250 mA

12 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 51.99^*

TDK-Lambda PXC-M03-48WD12 DC/DC converter (print) 12 V 125 mA Content 1 pc(s)

Item no:2255865

Dispatches on Thu, 11 Feb 2027

Conrad Electronic

75 V

18 V

125 mA

12 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 51.99^*

TDK-Lambda PXC-M03-48WD15 DC/DC converter (print) 15 V 100 mA Content 1 pc(s)

Item no:2255887

Dispatches on Thu, 11 Feb 2027

Conrad Electronic

75 V

18 V

100 mA

15 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 51.99^*

TDK-Lambda PXC-M03-48WS15 DC/DC converter (print) 15 V 200 mA Content 1 pc(s)

Item no:2255879

Dispatches on Thu, 11 Feb 2027

Conrad Electronic

75 V

18 V

200 mA

15 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 48.99^*

TDK-Lambda PXC-M03-48WS24 DC/DC converter (print) 24 V 125 mA Content 1 pc(s)

Item no:2255890

Dispatches on Thu, 11 Feb 2027

Conrad Electronic

75 V

18 V

125 mA

24 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 51.99^*

TDK-Lambda PXC-M06-48WD15 DC/DC converter (print) 15 V 200 mA Content 1 pc(s)

Item no:2255876

Dispatches on Thu, 11 Feb 2027

Conrad Electronic

75 V

18 V

200 mA

15 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

TDK-Lambda PXC-M06-48WS12 DC/DC converter (print) 12 V 500 mA Content 1 pc(s)

Item no:2255869

Dispatches on Thu, 11 Feb 2027

Conrad Electronic

75 V

18 V

500 mA

12 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

TDK-Lambda PXC-M06-48WS15 DC/DC converter (print) 15 V 400 mA Content 1 pc(s)

Item no:2255883

Dispatches on Thu, 11 Feb 2027

Conrad Electronic

75 V

18 V

400 mA

15 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

Documents & Downloads

Datasheet

Datasheet 2255880 TDK-Lambda PXC-M10-48WS15 DC/DC converter (print) 15 V 670 mA Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2255880 TDK-Lambda PXC-M10-48WS15 DC/DC converter (print) 15 V 670 mA Content 1 pc(s)

Warranty Terms

Warranty Terms 2255880 TDK-Lambda PXC-M10-48WS15 DC/DC converter (print) 15 V 670 mA Content 1 pc(s)

Description

The PXC-M DC-DC converter range has a wide 4:1 input voltage range, medical approval, 5 kV AC input/output isolation voltage, 3/6/10W output power and a standard DIP 24 housing. The modules are suitable for a wide range of applications, especially in medical applications – including applications with patient contact thanks to 2 x MOPP – and battery-operated applications.The compact DC-DC-modules convert 9-36 V DC or 18-75 V DC input voltage in 3.3, 5, 12, 15, 24, ±5, ±12 or ±15 V DC. Since their inputs each cover two typical DC supply ratings (12 and 24 V and 48 V respectively), they facilitate storage by improving availability and reducing costs.
