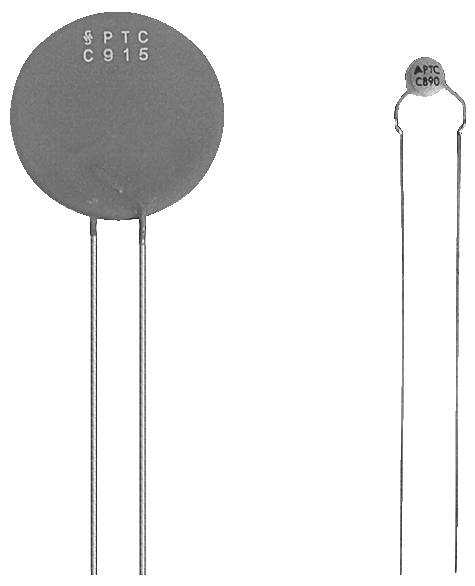

TDK PTC thermistor Radial lead 1.2 Ω 1 pc(s)
Part number:
Item no:
Product type
PTC thermistor
Type
Radial lead
Resistance
1.2 Ω
Tolerance ±
25 %
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
Highlights & Details
TDK electronics PTC-resistor 30V 120° 1R2 4.3A
Our service for you
Technical specifications
- Ceramic PTC thermistors protect electrical consumers such as motors, transformers, etc., and electronic circuits (line card)
- ESD Packaging: No ESD
- Series B599
- Delivery form: Loose
- Diameter, Resistance element 11 mm
- Diameter, connection wire 0.6 mm
- Resistance tolerance: ±25 %
- Rated temperature 120°C.
- Max. OPERATING VOLTAGE (DC) 30 V DC
- Max. OPERATING VOLTAGE (AC) 30 V AC
- Nominal voltage: 24 V
- Max. permissible switching current at Umax 4.3 A
- Switching current: 1,200 mA
- Residual current at Umax 70 mA
- Approvals UL
- Product type
PTC thermistor
- Type
Radial lead
- Resistance
1.2 Ω
- Tolerance ±
25 %
- Manufacturer part #
B59965C0120A070
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
B59965C0120A070
- Height
14.5 mm
- Mounting type
PCB mount
- Nominal current
600 mA
- CS
5 mm
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3465071 TDK PTC thermistor Radial lead 1.2 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3465071 TDK PTC thermistor Radial lead 1.2 Ω 1 pc(s)
Description
PTC thermistor B59 25% RM5.08
This text is machine translated.
This text is machine translated.
Features
- PTC resistor
- In contrast to plastic-based PTC's, the ceramic PTC thermistor reverts to its initial resistance value even after often cools down.
- They respond to impermissibly high currents and protect when predefined temperature limits are exceeded; the power loss absorbed by the entire circuit is limited by increasing the resistance and reducing the current to a harmless residual value.
- The PTC thermistor is not replaced, but performs its protection function immediately after a short cooling down time.
- Cold-conducting disc, sheathed
- Pinhole gap 5mm
