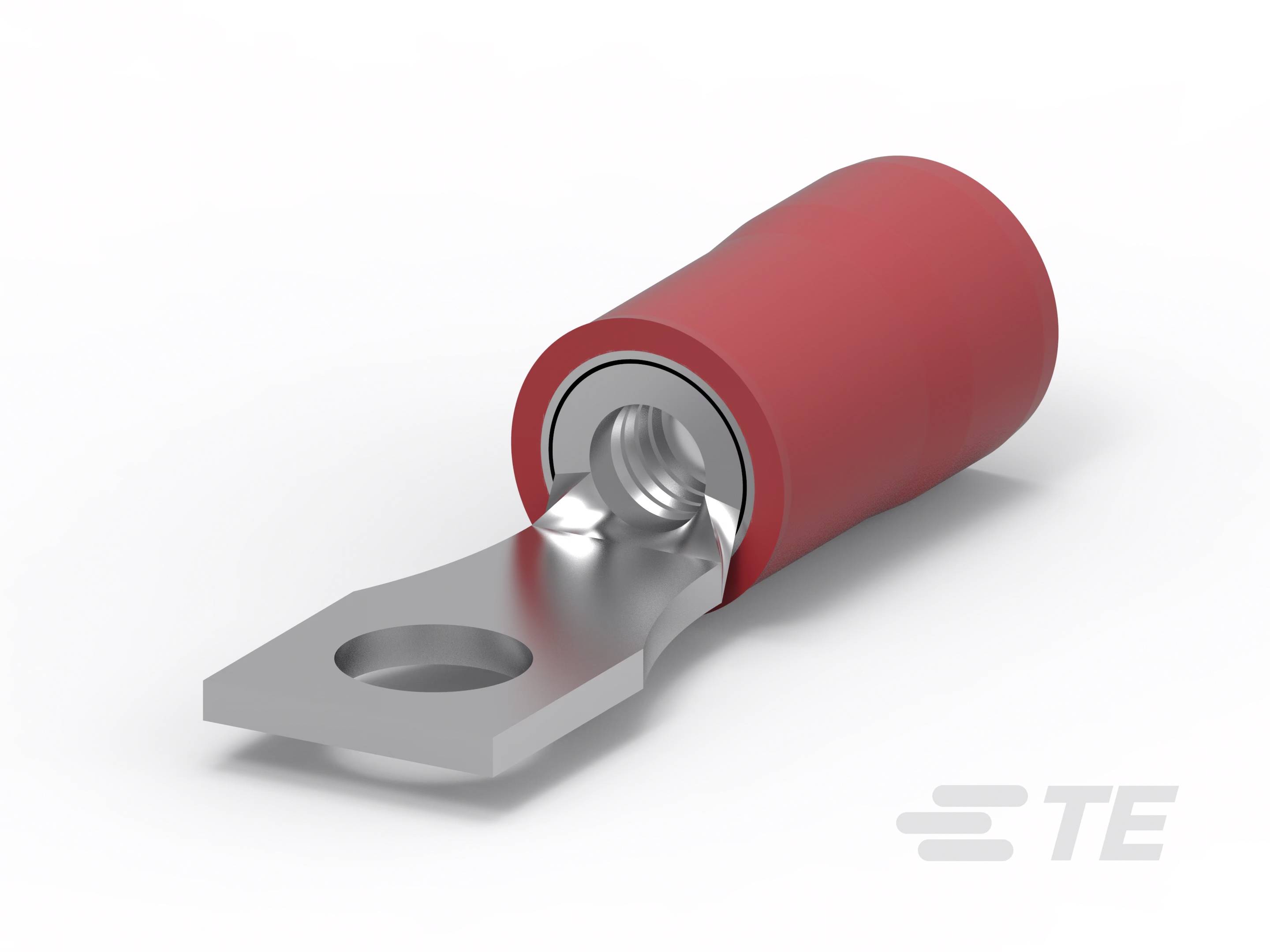

TE Connectivity 320629 Ring terminal Cross section (max.)=1.42 mm² Hole Ø=3.51 mm Partially insulated 1 pc(s) Box
Packaging type
Box
Product type
Ring terminal
Hole Ø
3.51 mm
Insulation type
Partially insulated
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
TE CONNECTIVITY 320629
- 0.3 - 1.42 mm²
Our service for you
Technical specifications
- Packaging type
Box
- Product type
Ring terminal
- Hole Ø
3.51 mm
- Insulation type
Partially insulated
- Content
1 pc(s)
- Manufacturer part #
320629
- Type
320629
- AWG max.
16
- AWG (min.)
22
- max. cross section
1.42 mm²
- Min. cross section
0.3 mm²
- Weight
0.797 g
- Dimensions
Product Length: 21.5 mm, Stud Diameter: 3.51 mm, Tongue Thickness: 0.84 mm, Compatible Insulation Diameter (Max): 3.18 mm, Compatible Insulation Diameter Range: 2.03 - 3.18 mm
- Cross-section range
0.3 - 1.42 mm²
- RoHS-compliant
Yes
- Support sleeve
Yes
Documents & Downloads
Datasheet
Datasheet 3367753 TE Connectivity 320629 Ring terminal Cross section (max.)=1.42 mm² Hole Ø=3.51 mm Partially insulated 1 pc(s) Box
User & Safety Instructions
User & Safety Instructions 3367753 TE Connectivity 320629 Ring terminal Cross section (max.)=1.42 mm² Hole Ø=3.51 mm Partially insulated 1 pc(s) Box
Information
Information 3367753 TE Connectivity 320629 Ring terminal Cross section (max.)=1.42 mm² Hole Ø=3.51 mm Partially insulated 1 pc(s) Box
Description
Terminals NYL-RING 22-16 RED #6 M3.5+
