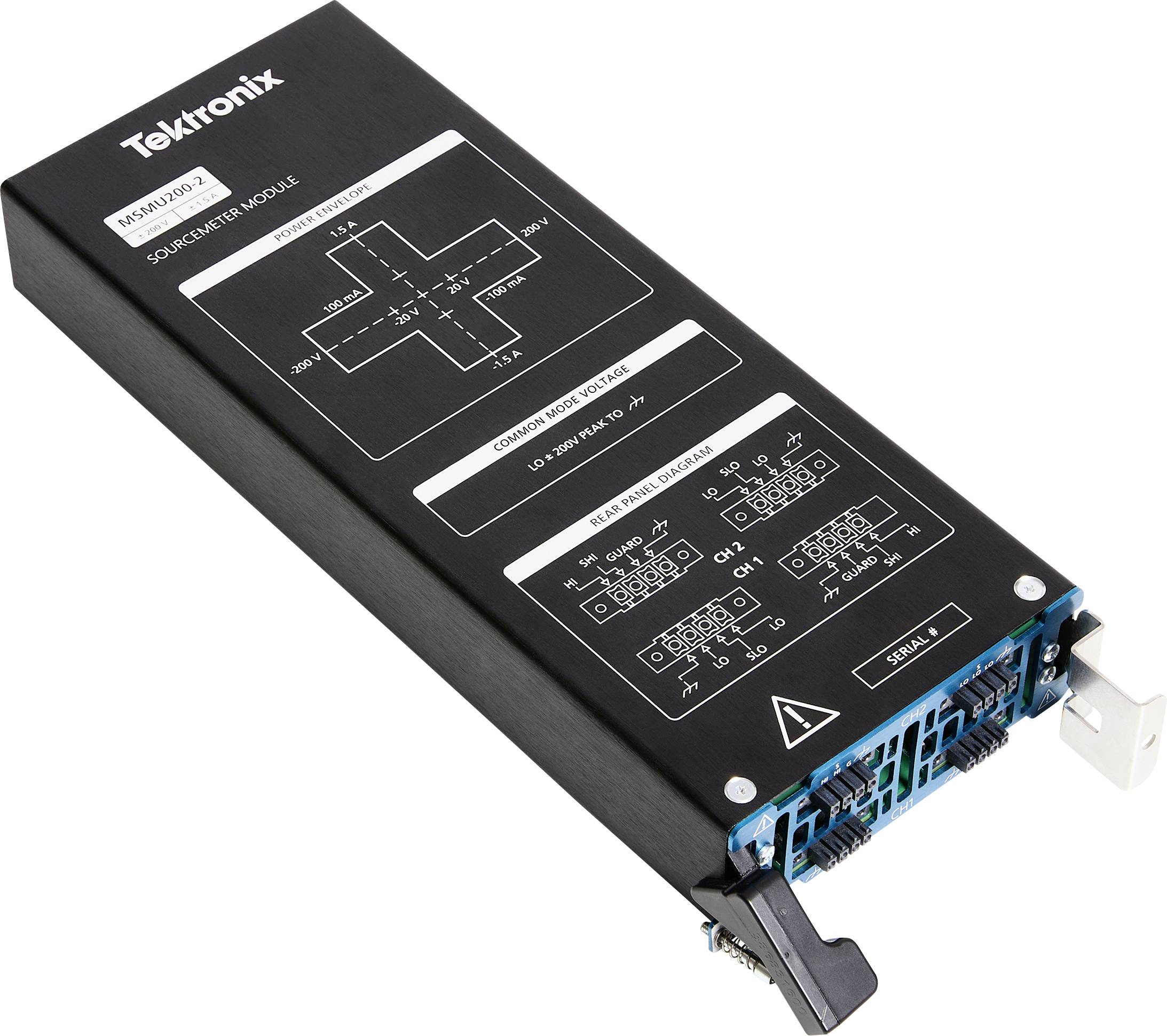

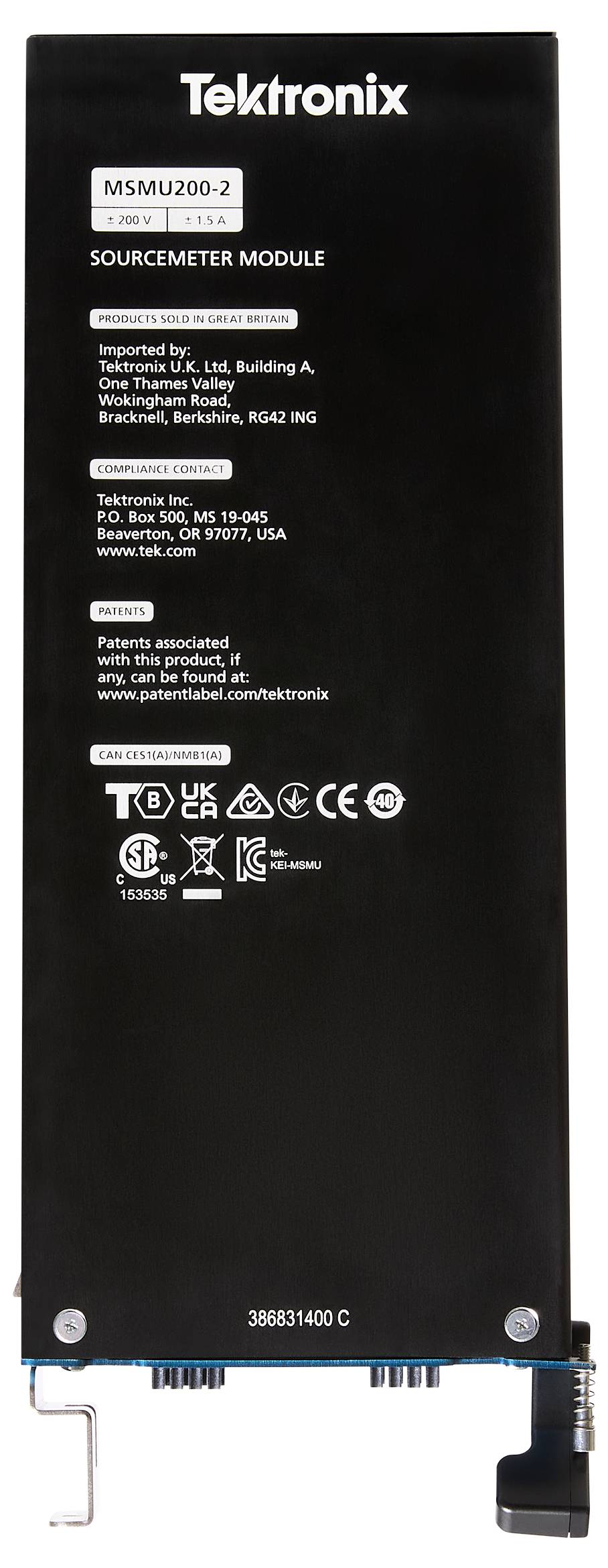

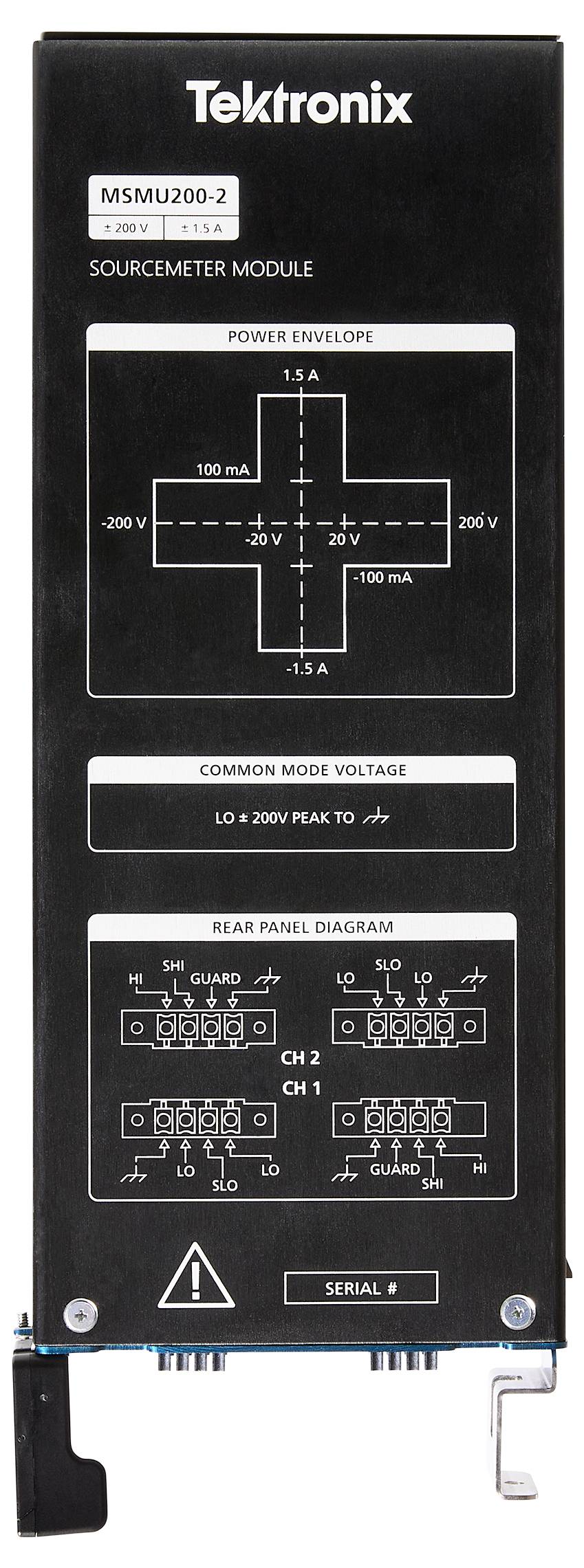

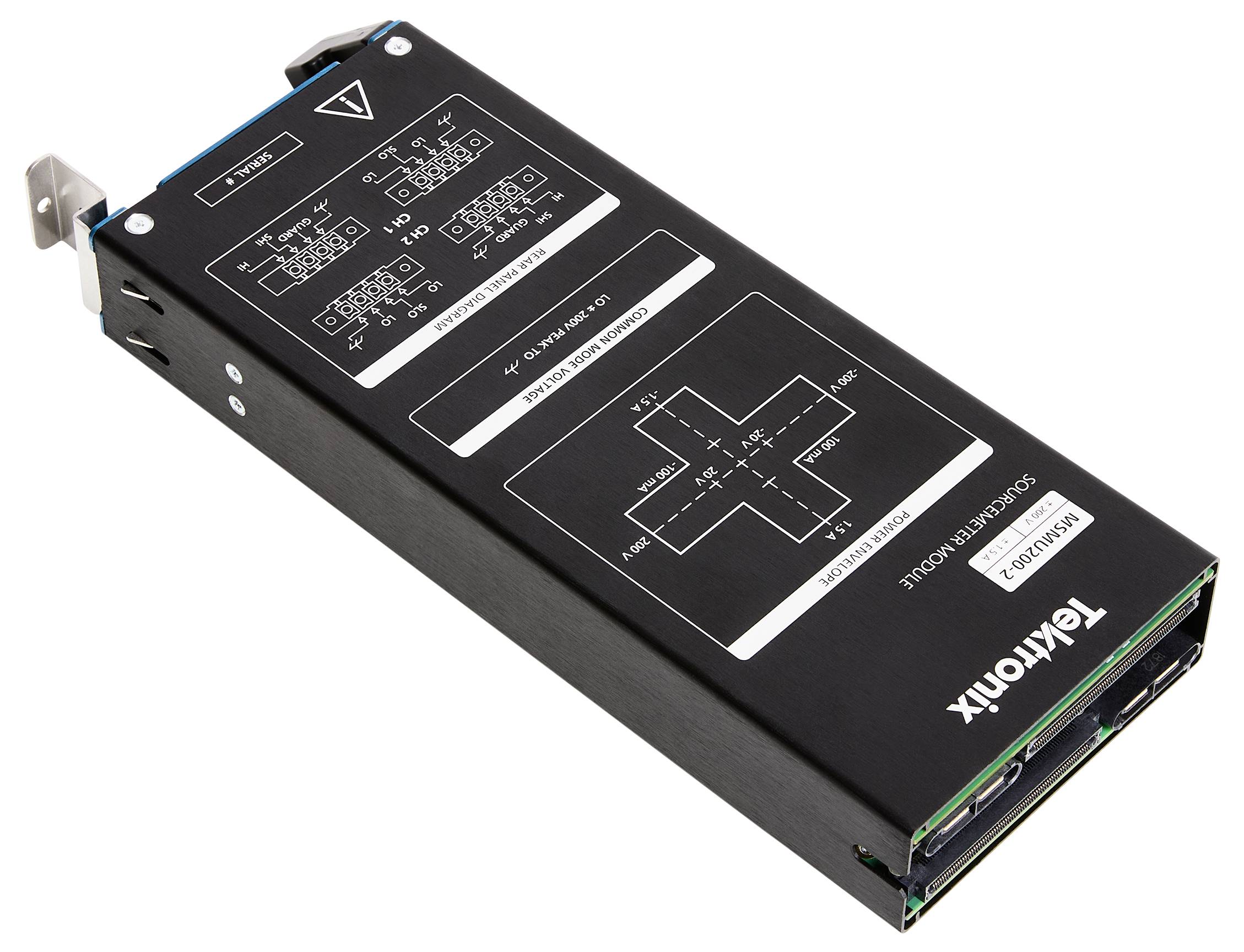

Tektronix MSMU200-2 + R5 SMU module (Source Measure Unit / Source Measuring Unit) 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 19,295.00 / piece)
€ 19,295.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
MSMU200-2 SMU module, 30 W, 200 V, 1.5 A, + 5 years total protection plan (R5)
- Four-quadrant operation
- Asymmetrical limit / compliance (independent positive/negative limits)
- Advanced remote sensing (remote sensing) with auto sense resistors
- Contact check and transient protection
- High capacity load capacity
Technical specifications
- Protection features: Input surge protection
- Product type
SMU module (Source Measure Unit / Source Measuring Unit)
- Compatible with
Tektronix
- Type
Modular slot card / plug-in module
- Weight
1.25 kg
- Calibration service
Factory standard
- Reading category
CAT I
- Width
112 mm
- Height
39.6 mm
- Length
312 mm
- Depth
312 mm
- Type
MSMU200-2 + R5
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 3841705 Tektronix MSMU200-2 + R5 SMU module (Source Measure Unit / Source Measuring Unit) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3841705 Tektronix MSMU200-2 + R5 SMU module (Source Measure Unit / Source Measuring Unit) 1 pc(s)
Description
Main applications:
Semiconductor validation and reliability testing
Optoelectronics (characterization of VCSEL, LED, laser diodes)
Functional test in air, space and defense technology
High-density production test environments
5-year Comprehensive Protection Plan (R5)
This text is machine translated.
Semiconductor validation and reliability testing
Optoelectronics (characterization of VCSEL, LED, laser diodes)
Functional test in air, space and defense technology
High-density production test environments
5-year Comprehensive Protection Plan (R5)
This text is machine translated.
Features
- 2 CHANNELS, 30 W, 200 V, 1.5 A
- Measurement resolution: Down to the femtoampere range (FA)
- Digitizer (digitizer): 1 MSa/s ADC for voltage and current
Scope of delivery
- MSMU200-2 SMU-module

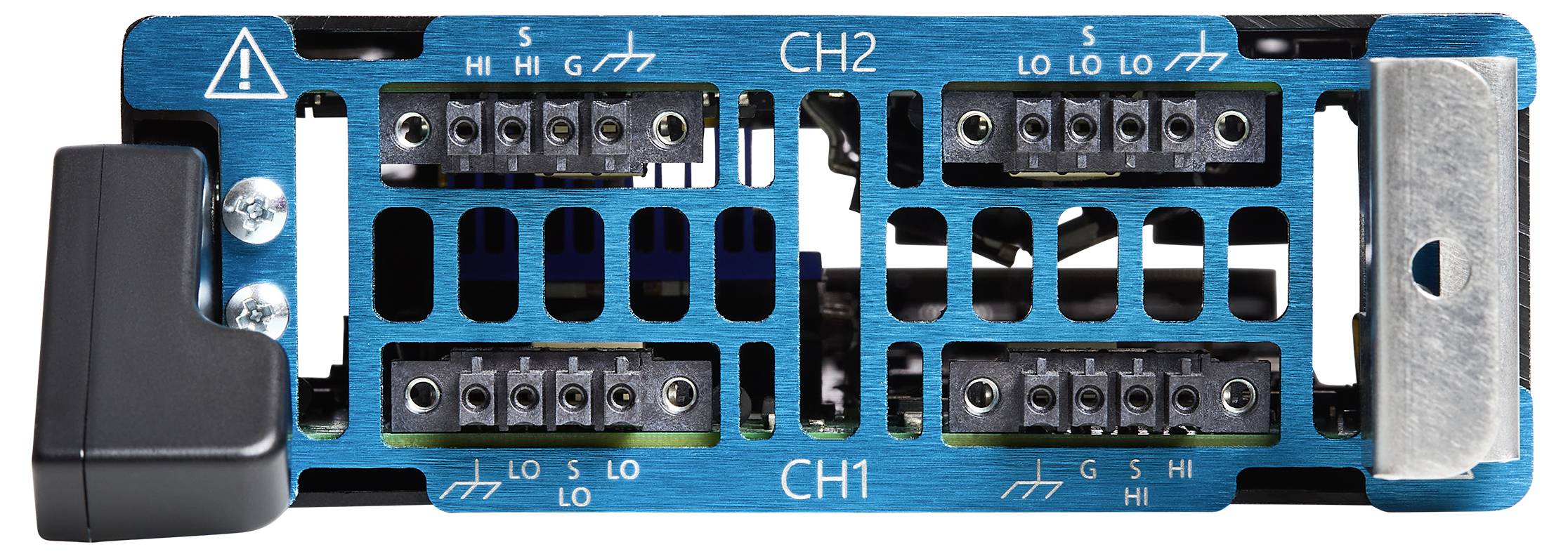

- 4-pole screw terminal blocks (4)
