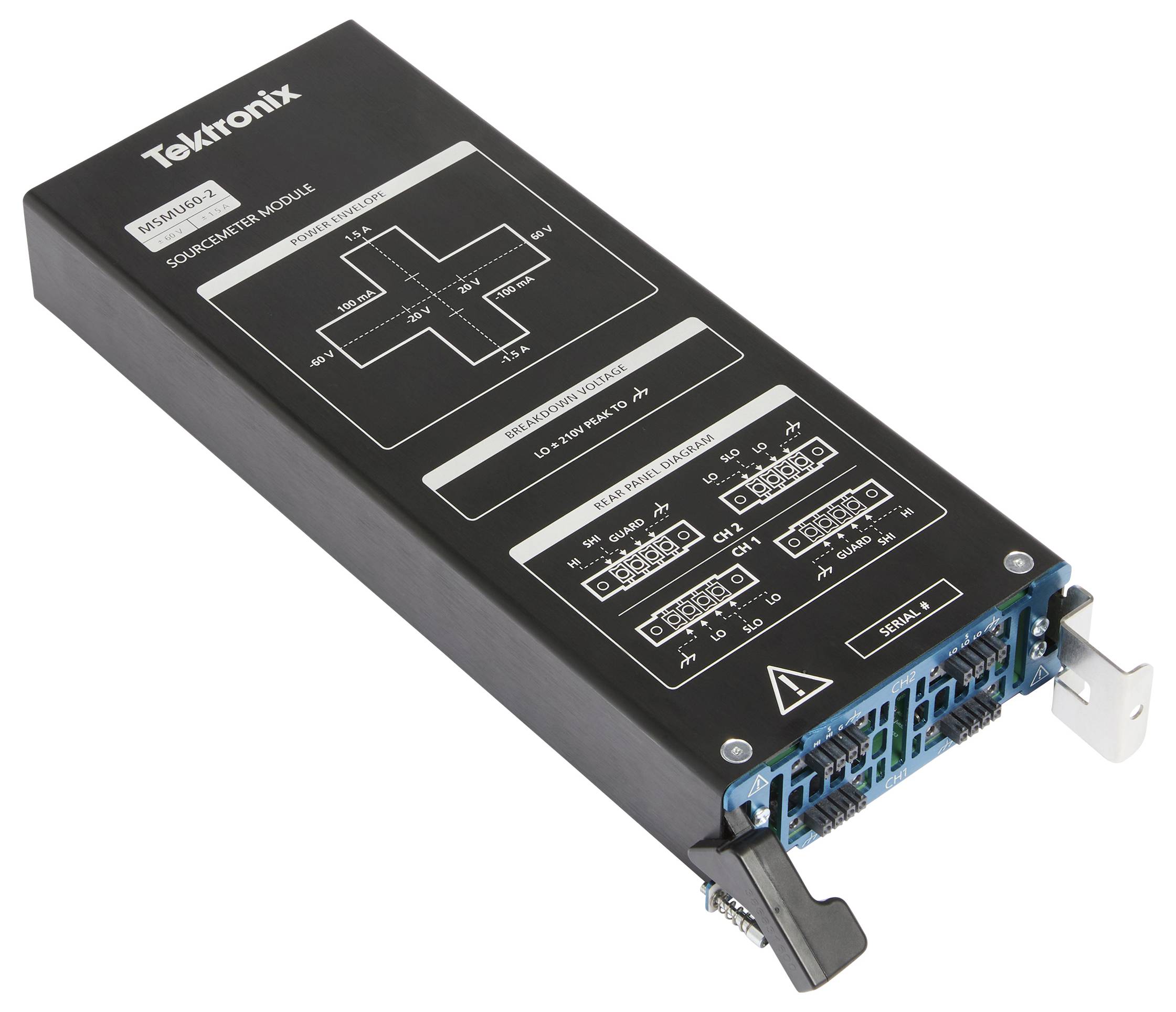

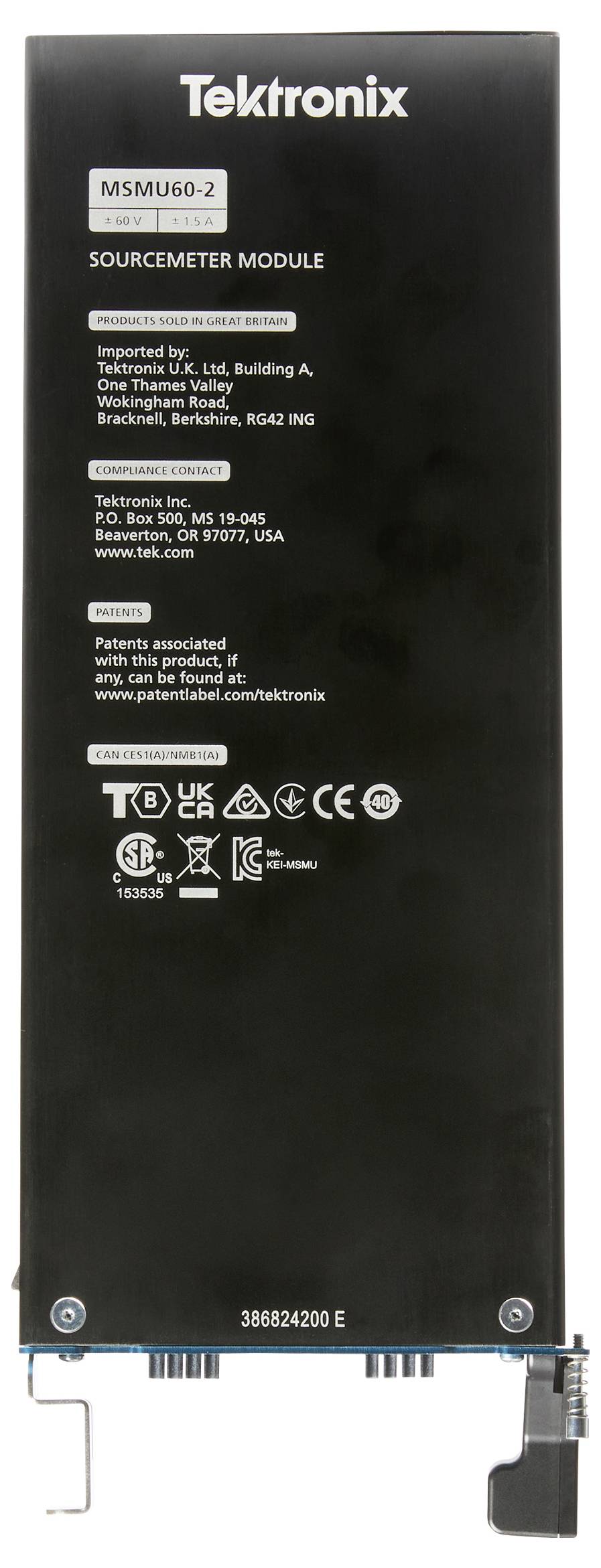

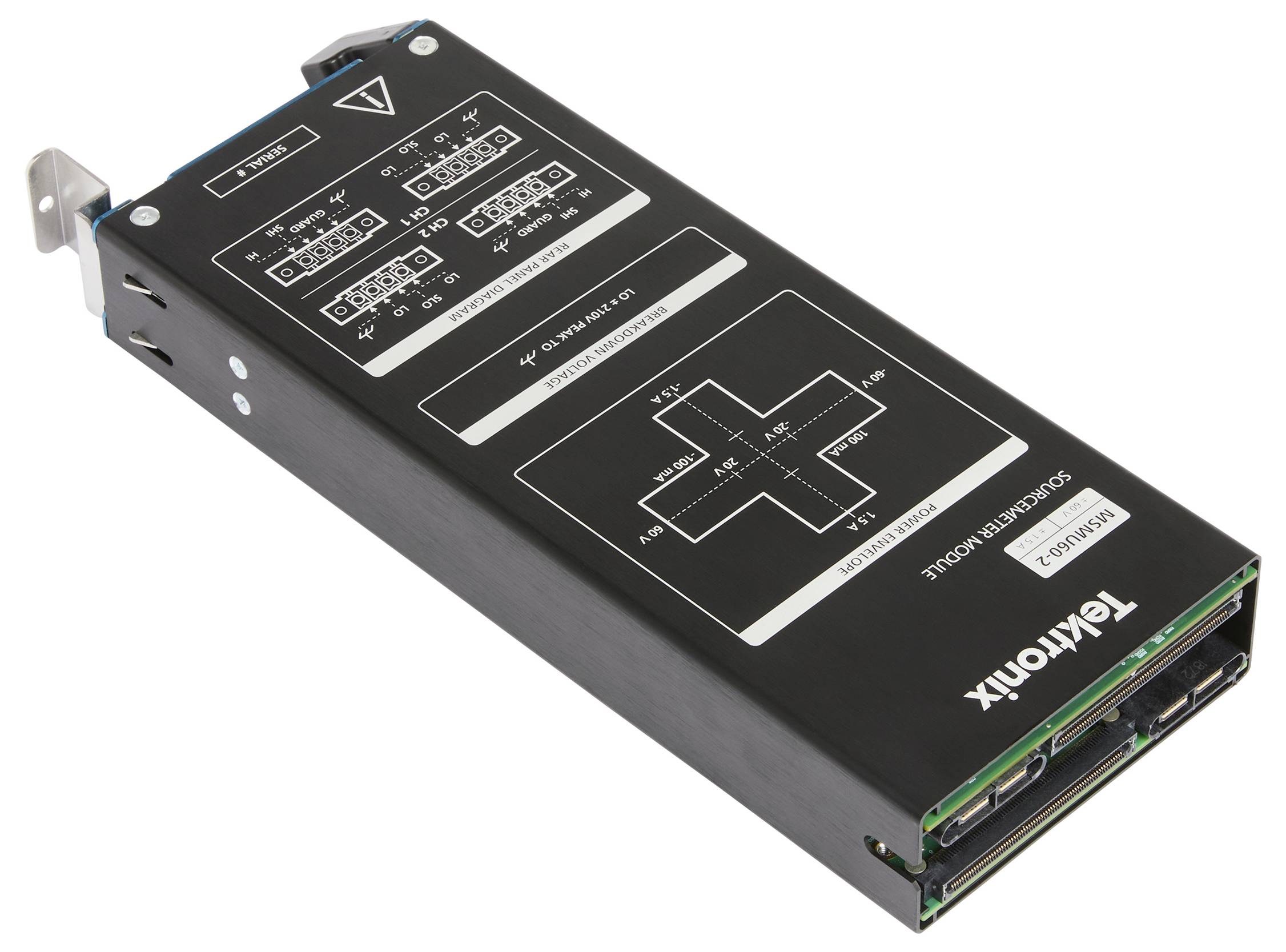

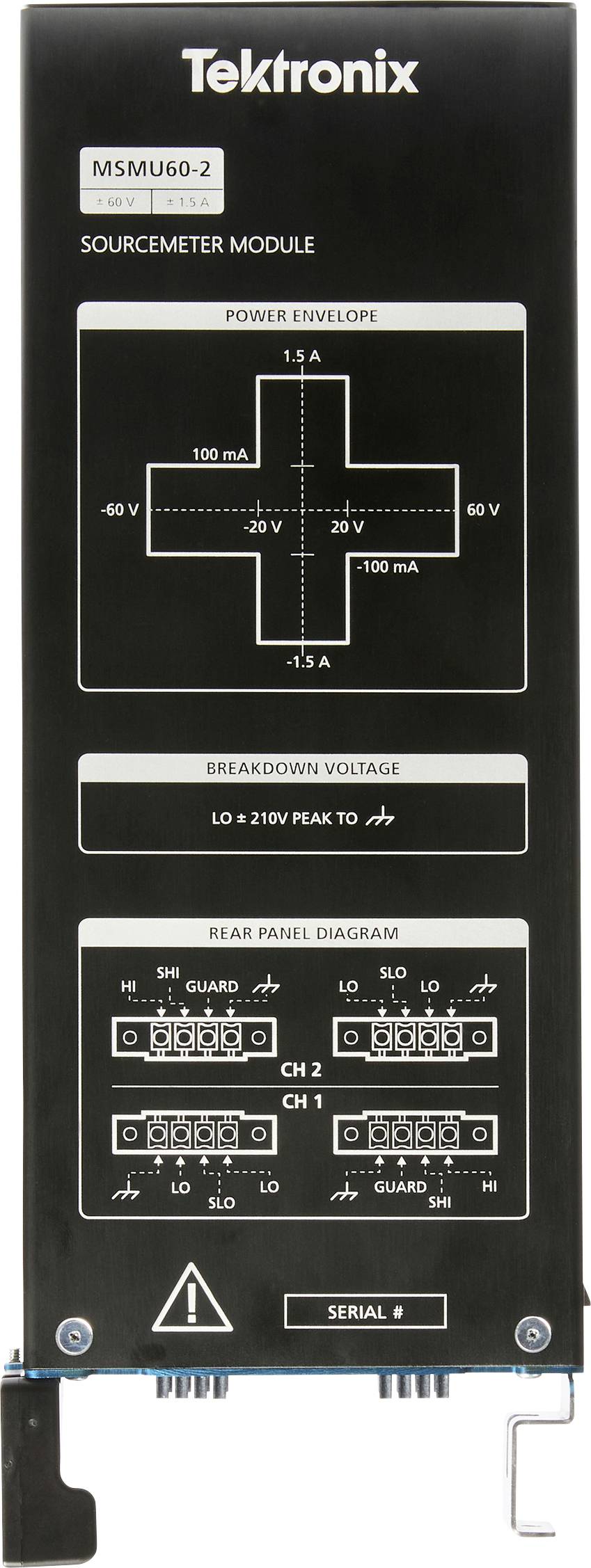

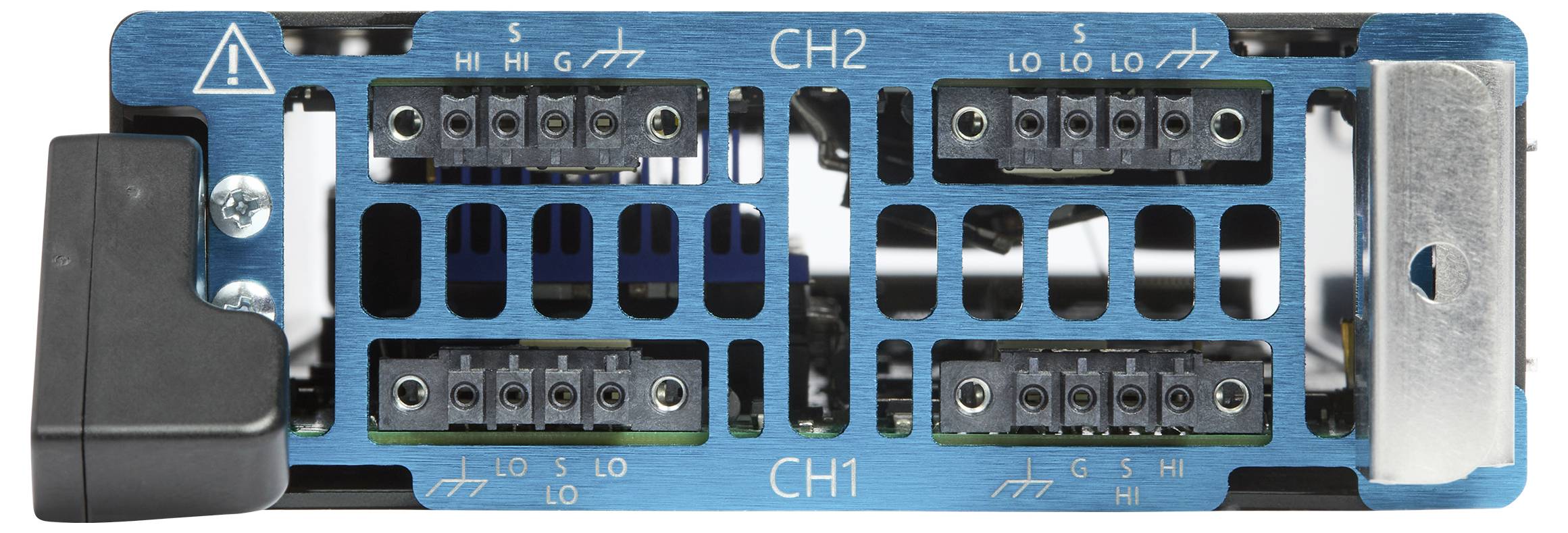

Tektronix MSMU60-2 MSMU60-2 Module 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 15,105.00 / piece)
€ 15,105.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Tektronix MP5000 modular precision test system
- Modular architecture
- -1U rack-mountable chassis with 3 rear-access module slots
- -Supports up to 6 channels per chassis
- -Mix-and-match SMU and PSU modules for flexible configurations
- -Swappable module without removing/powering down the mainframe
- -High-performance SMU modules
- SMU modules:
- -2 Ch, 30W, 60V
- -1 MSa/s digitaliser for Voltage and Current
- -Femtoamp-level measurement sensitivity
- -Asymmetrical compliance and enhanced protection
- Advanced Automation & Software
- -TSP Toolkit:
- -Visual studio code-based IDE
- -On-instrument script debugging
- -Automated TSP script generation with channel sync
- -Driver support: Python & IVI
- -Web Interface: Browser-based control and monitoring
- -Connectivity & Integration:
- -TSP-Link: Synchronize up to 32 mainframes
- -18 Digital I/O pins for hardware handshaking
- USB 3.0 and 1 Gigabit Ethernet for fast data streaming
Technical specifications
- Product type
Module
- Compatible with
Tektronix
- Height
1 U
- Type
MSMU60-2
Documents & Downloads
Datasheet
Datasheet 3479071 Tektronix MSMU60-2 MSMU60-2 Module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3479071 Tektronix MSMU60-2 MSMU60-2 Module 1 pc(s)
Description
The MP5000 series is Tektronix's next generation modular precision test platform engineered to meet the evolving demands of automated test equipment (ATE) in validation and production workflows. Designed with a compact 1U form factor, it supports up to six configurable SMU or PSU channels per chassis and scales to 192 channels in parallel—maximising rack space, throughput, and test flexibility.
This text is machine translated.
This text is machine translated.
Hints
Source Measure Unit (SMU) Modules:
Configurations:
-2 CH, 30W, 60V, 1.5A
-2 Ch, 30W, 200V, 1.5A (with extended range pulse)
-Measurement resolution: Down to femtoampere (FA) level
-Digitizer: 1 MSA/s ADC for voltage and current
Features:
-Four-quadrant operation
-Asymmetrical compliance (independent positive/negative limits)
-Enhanced remote sensing with AutoSense resistors
Contact Check and transient protection
-High capacitive load capacity
TSP Toolkit:
-Visual studio code-based IDE
-On-instrument script debugging
-Automated TSP script generation with channel sync
Instrument simulation and waveform preview
-Python API integration
-Data export (.csv, .xlsx)
