Teledyne LeCroy USB-T0S3-A01-X Protocol analyser USB
EAN:
Part number:
Item no:
Number
Total (€ 6,772.27 / piece)
€ 6,772.27
plus VAT.
Highlights & Details
USB 3.0 Protocol Analyzer Advisor T3 Standard
- For USB 2.0/3.0
- Simultaneous recording USB 2.0 and USB 3.0
Technical specifications
- Interfaces
USB 2.0
USB 3.2 1st Gen (USB 3.0)
- Interfaces
USB
- Product type
Protocol analyser
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1628644 Teledyne LeCroy USB-T0S3-A01-X Protocol analyser USB
Description
The advisor T3 is an ultra-portable Super Speed USB-Analyzer, the leading accuracy at an exceptional price. The advisor was developed to each engineering precision-USB-protocol test tools into the hands and contains all the essential functions for the Super Speed USB-debugging.
The advisor T3 is based on Teledyne LeCroy's Voyager Analyzer platform with fast signal lock and no-compromise 5 Gbps recording accuracy. The advisor was developed to inline between the host and device to sit and offers loss-free recording of USB 2.0 or USB 3.0 data traffic. Each event is provided with a time stamp, the logical condition changes and LFPS-signals. With its intelligent scheduling detection mode captures the advisor seamlessly in-band reset and hot-behavior between devices.
The advisor T3 Standard Edition offers even more powerful triggering for 2.0/3.0. For high-speed power user, the Pro upgrade option advanced triggering, real-time metrics and other functions of the Voyager Pro software for the advisor T3 standard model.
This text is machine translated.
The advisor T3 is based on Teledyne LeCroy's Voyager Analyzer platform with fast signal lock and no-compromise 5 Gbps recording accuracy. The advisor was developed to inline between the host and device to sit and offers loss-free recording of USB 2.0 or USB 3.0 data traffic. Each event is provided with a time stamp, the logical condition changes and LFPS-signals. With its intelligent scheduling detection mode captures the advisor seamlessly in-band reset and hot-behavior between devices.
The advisor T3 Standard Edition offers even more powerful triggering for 2.0/3.0. For high-speed power user, the Pro upgrade option advanced triggering, real-time metrics and other functions of the Voyager Pro software for the advisor T3 standard model.
This text is machine translated.
Features

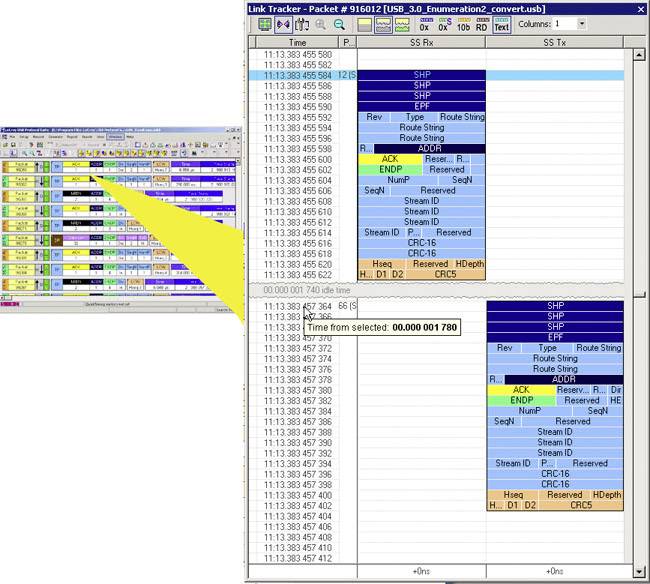

- CATC Trace Analysis Software System - expand/collapse transfers for the quick interpretation of USB-data traffic
- 2 GB recording capacity - Record long recording sessions for analysis and problem solving
- Rohbit-Aufzeichnung/10 - Bit-Fehlererkennung displays and correlate to higher-level package structures of low-level-10-Bit-Symbolen
- Full support for SSC and Data Encryption - almost locking and accurate capture on 5 Gbps signals
- Hardware triggering triggering both 2.0 and 3.0-log events to important data traffic, specific errors or data patterns to isolate
- Full class decoding SCSI storage, 3.0 Hub, PTP/Still Image, printer, PictBridge, Media Transfer Protocol (MTP), and all common USB device classes
- Hardware filtering - Automatic Exclude not necessary and redundant symbols, including idles, TS1, TS2, SKPs and LFPS-sequences
- Intelligent reporting system for the automatic reporting of Event Metrics and display of over 20 frequent USB-protocol errors. The LTSSM-View offers a graphical model of the logical connection states that occur within a traces
- Advanced Viewing - View TLP-messages and header as well as logical transaction and transfer layers of the USB-protocol
- External Trigger In/Out External Trigger and sync cable (available separately) allow synchronized recordings between several advisors or advisor and Voyager
