Teledyne LeCroy ZS2500A Tastkopf für Digitaloszilloskop Active high-impedance probe 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Total (€ 6,725.00 / piece)
€ 6,725.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Teledyne LeCroy, 2.5 GHz, 0.6 pF, 1 MΩ high-resistance active probe
- The Teledyne LeCroy ZS-A series probes are active probes with a high impedance, low capacitance and a high signal reliability up to 4 GHz. A small form factor and a large selection of accessories ensure that the probes of the ZS-A series can cope with any difficult measuring task.
Technical specifications
- Bandwidth 2.5 GHz
- Input capacity 0.6 pF
- DC input resistance 1 MΩ
- Dynamic Input Range ±8 V (DC or AC pk)
- Offset range ±12 V
- Attenuation ÷10
- Non-destructive max. voltage: 20 V
- Rise time (10-90%): 180 hp
- Cable length: 1,3 m
- Interface: ProBus
- Product type
Active high-impedance probe
- Compatible with
Teledyne LeCroy
- Type
Active probe with ProBus interface
- Weight
110 g
- Calibration service
ISO / Factory standard
- Reading category
CAT I
- Type
Tastkopf für Digitaloszilloskop
Manufacturer's standards (with certificate)
Documents & Downloads
Datasheet
Datasheet 3814863 Teledyne LeCroy ZS2500A Tastkopf für Digitaloszilloskop Active high-impedance probe 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3814863 Teledyne LeCroy ZS2500A Tastkopf für Digitaloszilloskop Active high-impedance probe 1 pc(s)
Description
High impedance reduces the switching load over the entire oscilloscope bandwidth. Engineers often have to measure high frequency signals with high signal fidelity. Typical passive probes with Hohem Input-R and -C offer good response at lower frequencies, but load the circuit too strongly at higher frequencies and distort the signals. The ZS-A series is characterized both by a high input R (1 MΩ) and a low input C (0.6 pF to 0.9 pF) to reduce the switching load over the entire bandwidth of probe and oscilloscope.
This text is machine translated.
This text is machine translated.
Features
- High signal reliability up to 4 GHz bandwidth
- Low circuit load - High input impedance and low capacity
- Models with 4 GHz, 2.5 GHz, 1.5 GHz and 1 GHz
- 1 MΩ input resistance
- 0.6 pF to 0.9 pF input capacitance
- ±8 V to ±15 V dynamic input range
- ±12 V to ±15 V Offset range
- Wide selection of tips and ground connections
- Easy to use, integrated in the oscilloscope

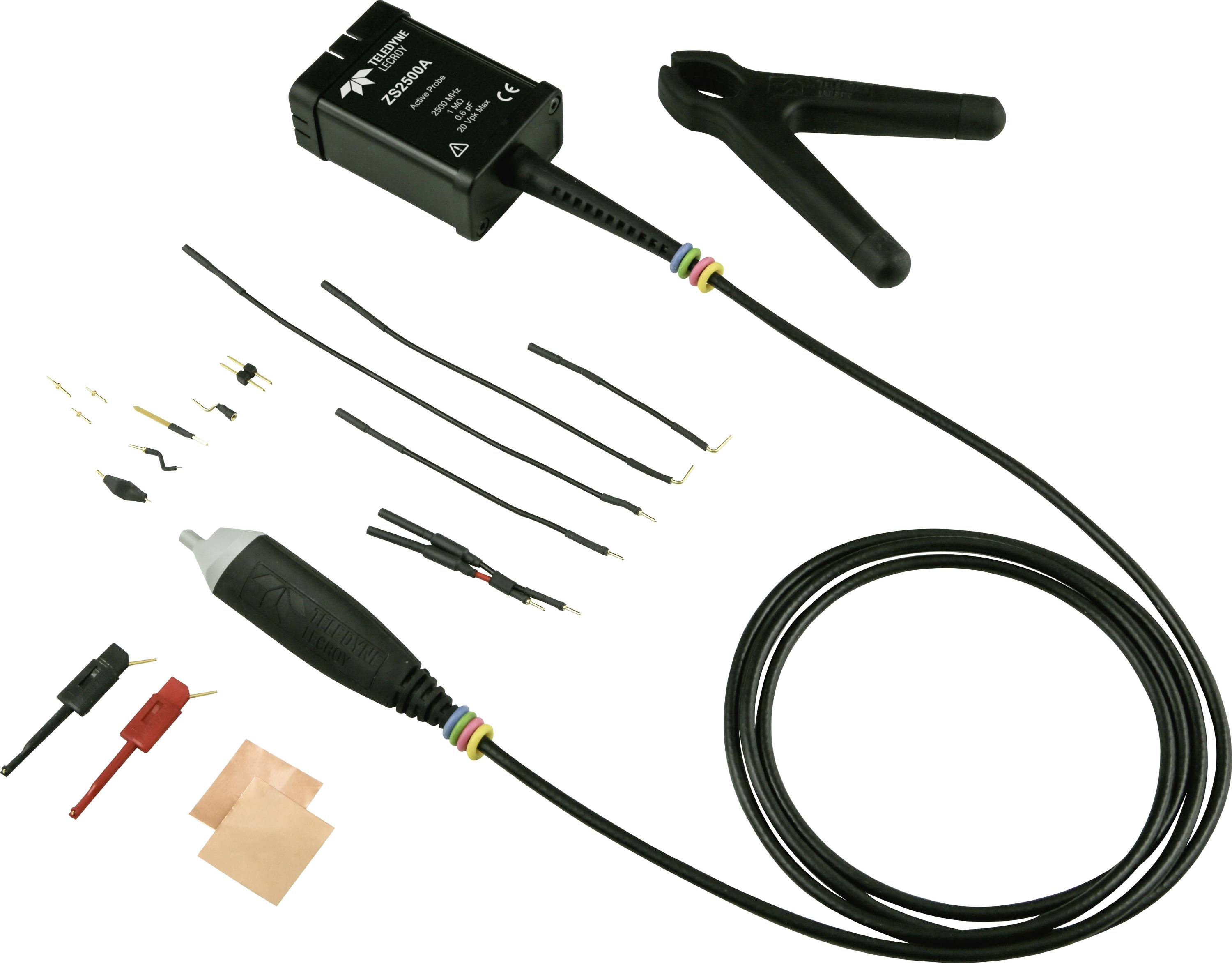

Scope of delivery
- 1× Active voltage probe ZS2500A with ProBus interface
- 1× Hands-free probe holder
- 1× Calibration certificate
- 2× Standard straight probe tips
- 1× Spring-loaded probe tip
- 1× 2.54 mm square pin adapter
- 2× 2.54 mm PCB adapter
- 1× Narrow ground spring
- 1× Width of ground spring
- 1× offset mass
- 2× Copper band pads
- 1× Short straight pin line
- 1× Long straight pin cable
- 1× Short angled pin line
- 1× Long angled pin cable
- 1× Y-adapter line
- 1× Pair micro clamping laboratory gripper
- User manual/documentation
