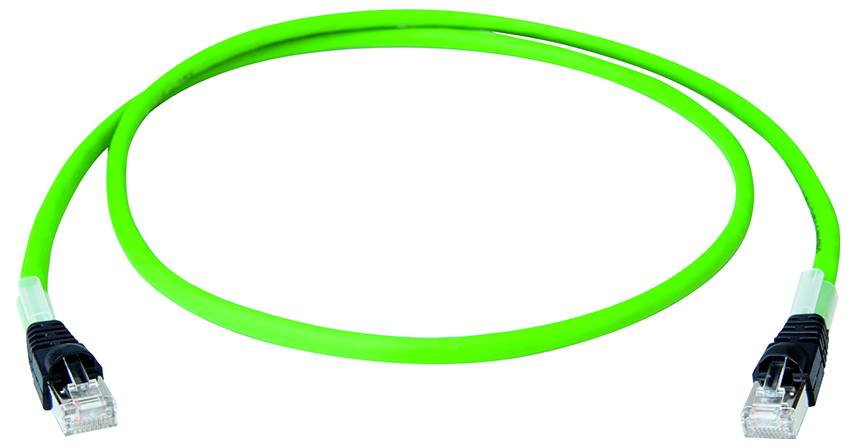

Telegärtner 100017308 RJ45 Patch cable CAT 6A S/FTP 0.5 m incl. bend relief 1 pc(s)

The requirements of the industry for the safe and consistent transmission of ever increasing amounts of data demand cabling solutions that can withstand current and future demands. In order to meet the ever increasing demands, Telegärtner is constantly working on the development of new products and on the further development of its existing product portfolio. The UL-listed raw cable used for the assemblies (CM, E344985) complies with the specification S/FTP 4x2xAWG26/7 CAT.7 and supports the protocol types EtherCAT and Ethernet/IP in addition to PROFINET. The cable with PUR-sheath is resistant to oils and UV-radiation, halogen-free and flame-resistant and can be used in a temperature range of -40 to 85 °C. The patch cables are suitable for connecting devices between machines and terminals in the protected control cabinet. The molded RJ45 connectors with lock lever protection and length marking offer a secure grip when plugging and unplugging.

Specifications:
Proven plug quality for permanently high-quality connections,
Wide range with lengths from 0.5 m to 15 m,
The shielded RJ45 connectors are CAT.6A (ISO/IEC) compliant with IEC 60603-7-51.
Through the connection of 8 wires this industrial cabling system can transfer Gigabit Ethernet with high system reserve and thus offers a high investment protection,
Extended temperature range for use in harsh environments,
Suitable for 4PPoE according to IEEE 802.3bt,
S/FTP CAT.6A (ISO/IEC) cable available with PUR, PE or PVC sheath,
SF/UTP CAT.5 cable available with PUR or PVC sheath

Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Protection class IP20 - IP20
Short term: S/FTP CAT.6A (ISO/IEC) PUR
Length 0.5 m
