Name: Telegärtner 100027522 100027522 BNC feedthrough BNC socket - BNC socket 0 cm 1 pc(s)
Brand: Telegärtner
SKU: 1090901
Availability: InStock

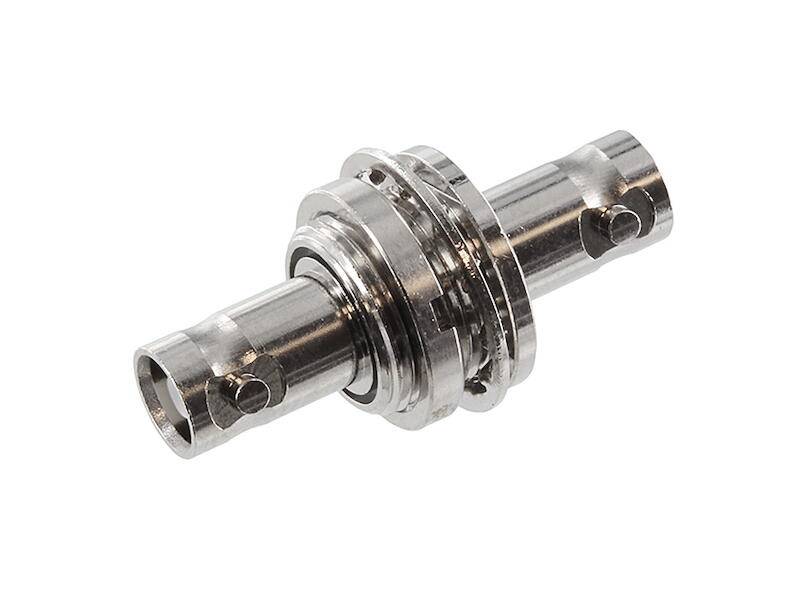

A silver BNC adapter with a threaded connection, photographed from the side. It is used to connect cables with BNC connectors in technical devices.

Technical drawing of a cylindrical component with dimensions. Main diameter 17mm, length 35.9mm, side screws and nuts.

1/2

Image similar

Product type

BNC feedthrough

Type A

BNC socket

Type B

BNC socket

Connector type

Adapter, hole mount

Impedance

75 Ω

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

36 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

BNC plug connector

BNC socket - BNC socket

Technical specifications

Mounting dimensions: Z04

Product type: BNC feedthrough

Type A: BNC socket

Type B: BNC socket

Connector type: Adapter, hole mount

Impedance: 75 Ω

Content: 1 pc(s)

Cable length: 0 cm

Case material: Brass nickel plated

Manufacturer part #: 100027522

Factory colour: Silver (metallic)

Insulation material: PTFE

RoHS-compliant: Yes

Type: 100027522

Weight: 0.014

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1090901 Telegärtner 100027522 100027522 BNC feedthrough BNC socket - BNC socket 0 cm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1090901 Telegärtner 100027522 100027522 BNC feedthrough BNC socket - BNC socket 0 cm 1 pc(s)

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
