Telegärtner TELEGÄRTNER KARL GÄRTNER - BNC-Einbaubuchse print abgewinkelt Telegärtner TELEGÄRTNER KARL GÄRTNER - BNC-Ein
Product type
Adapter
Type
TELEGÄRTNER KARL GÄRTNER - BNC-Einbaubuchse print abgewinkelt
Factory colour
Silver (metallic)
Content
1 pc(s)
UKCA
yes
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Telegärtner TELEGÄRTNER KARL GÄRTNER - BNC-Einbaubuchse print abgewinkelt N/A 100132568 Silver (metallic) 1 pc(s)

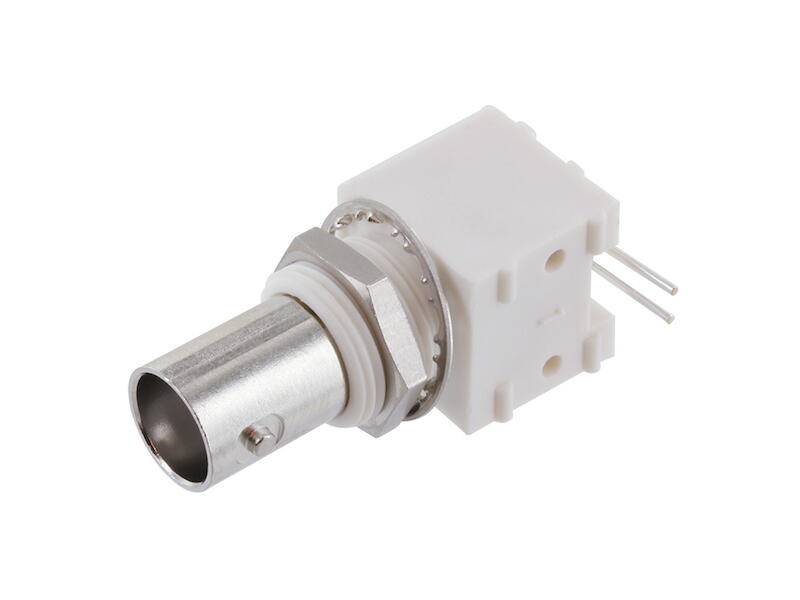

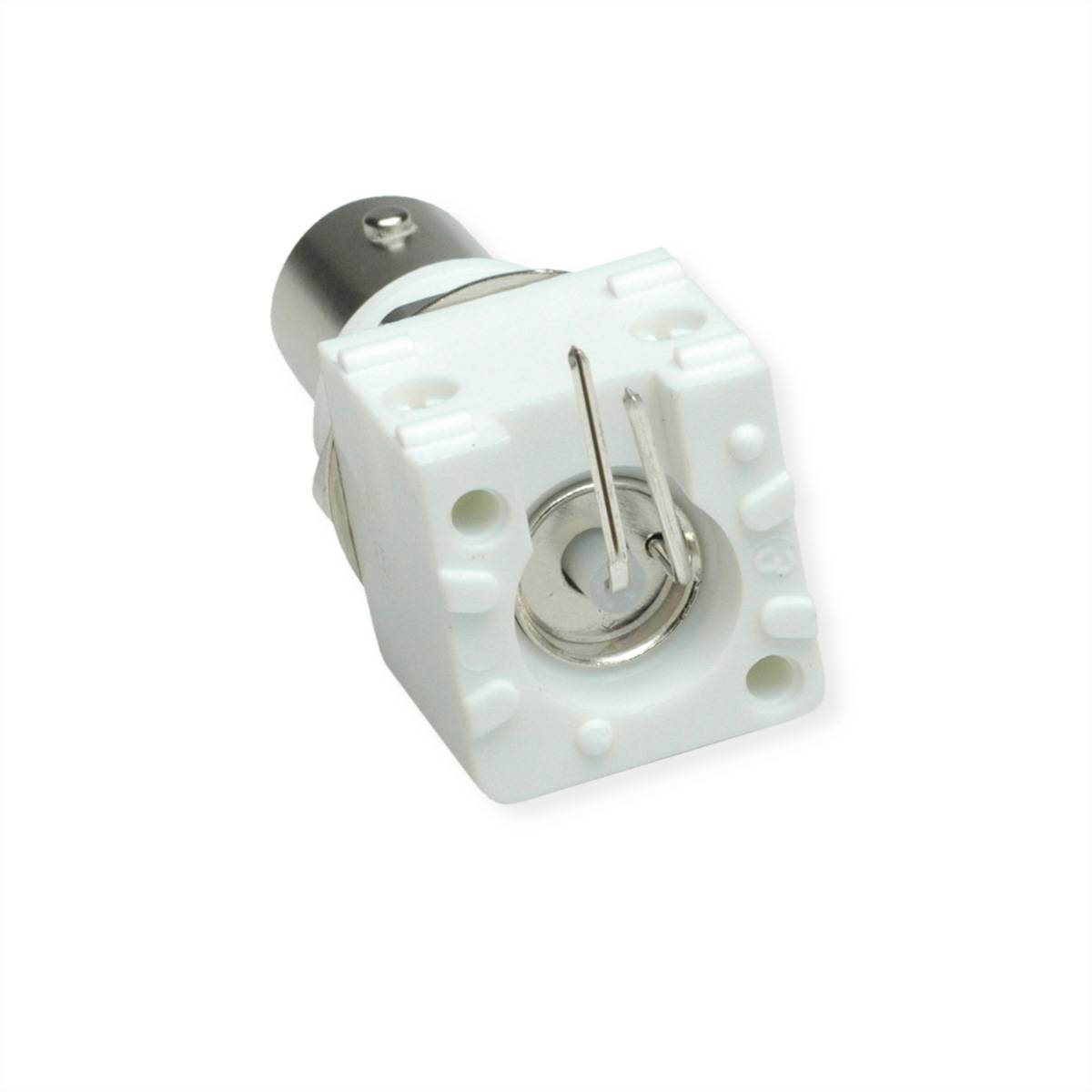

- Telegärtner T100132568 BNC-Bld-in Bush 50 ohm print angled
Technical specifications
- Product group: Coaxial plug
- Product type:BNC-LTP angle-mounted socket
- Colour: Silver
- Number of ports: 1
- Page 1 Type of connection: BNC connector
- Page 1 Type of connection: Female (female)
- Page 2 Type of connection: Solder connection
- Protection type (IP code) IP54
- With straight plug
- Surge impedance 50 Ohm
- Frequency range (max.) 4 GHz
- Height: 16 mm
- Width 14.8 mm
- Depth: 35 mm
- Weighs 12.8 g
- Packaging height 20 mm
- Package width 90 mm
- Packaging depth 130 mm
- Package weight: 0,012 kg
- Gross weight: 0.012
- Type
TELEGÄRTNER KARL GÄRTNER - BNC-Einbaubuchse print abgewinkelt
- Product type
Adapter
- Factory colour
Silver (metallic)
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3798505 Telegärtner TELEGÄRTNER KARL GÄRTNER - BNC-Einbaubuchse print abgewinkelt Telegärtner TELEGÄRTNER KARL GÄRTNER - BNC-Ein
User & Safety Instructions
User & Safety Instructions 3798505 Telegärtner TELEGÄRTNER KARL GÄRTNER - BNC-Einbaubuchse print abgewinkelt Telegärtner TELEGÄRTNER KARL GÄRTNER - BNC-Ein
Description

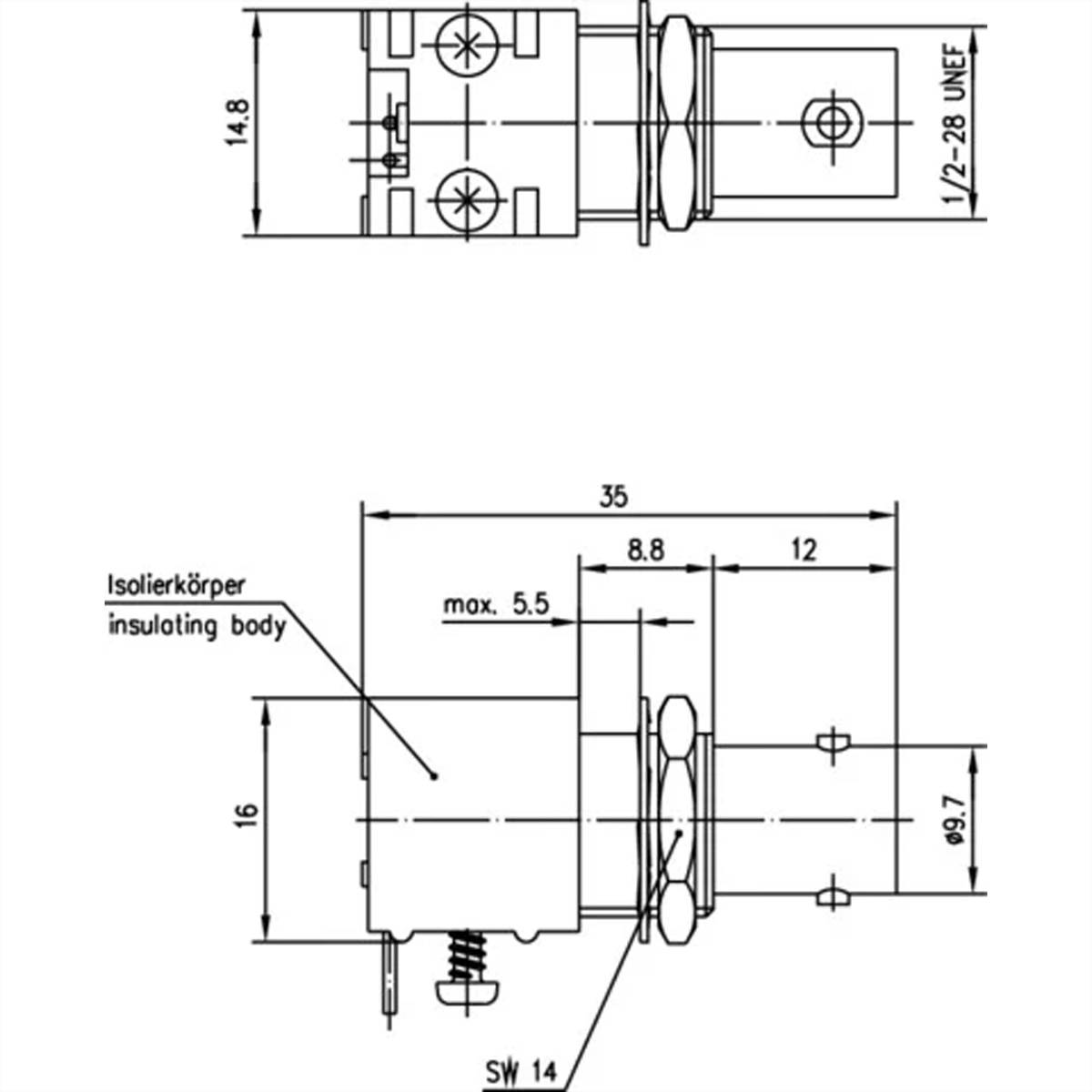

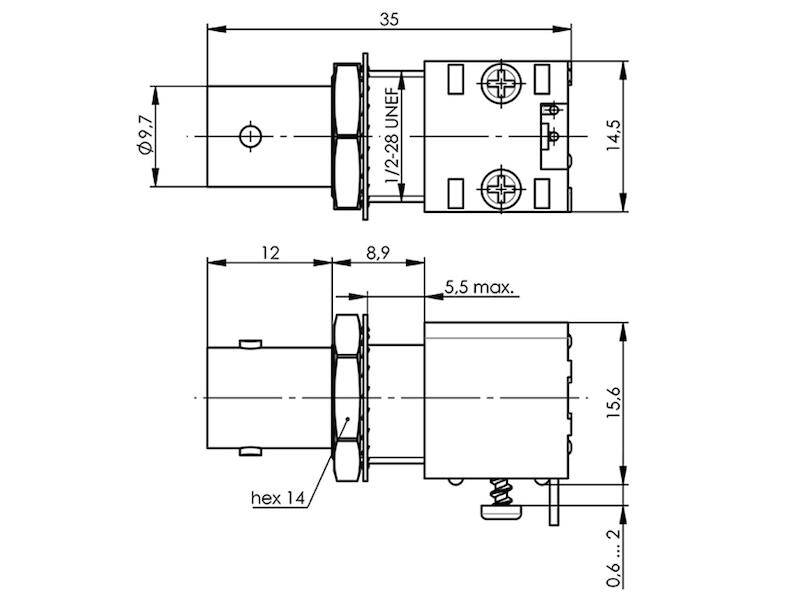

The BNC series comprises the most frequently used coaxial connectors, which can be used at a frequency of up to 4 GHz. They have a bayonet lock and are used in signal, data and video transmission. Product title: BNC JCK str Bkhd SD/SD PCB INSUL A Z50 (old part number J01001A0037). BNC panel jack for printed circuits, insulated installation. Wave impedance: 50 ohms Notes: Without fixing pins with fixing screws, soldering pin 90°; insulated. Mounting dimensions Z004/Z034
This text is machine translated.
Scope of delivery

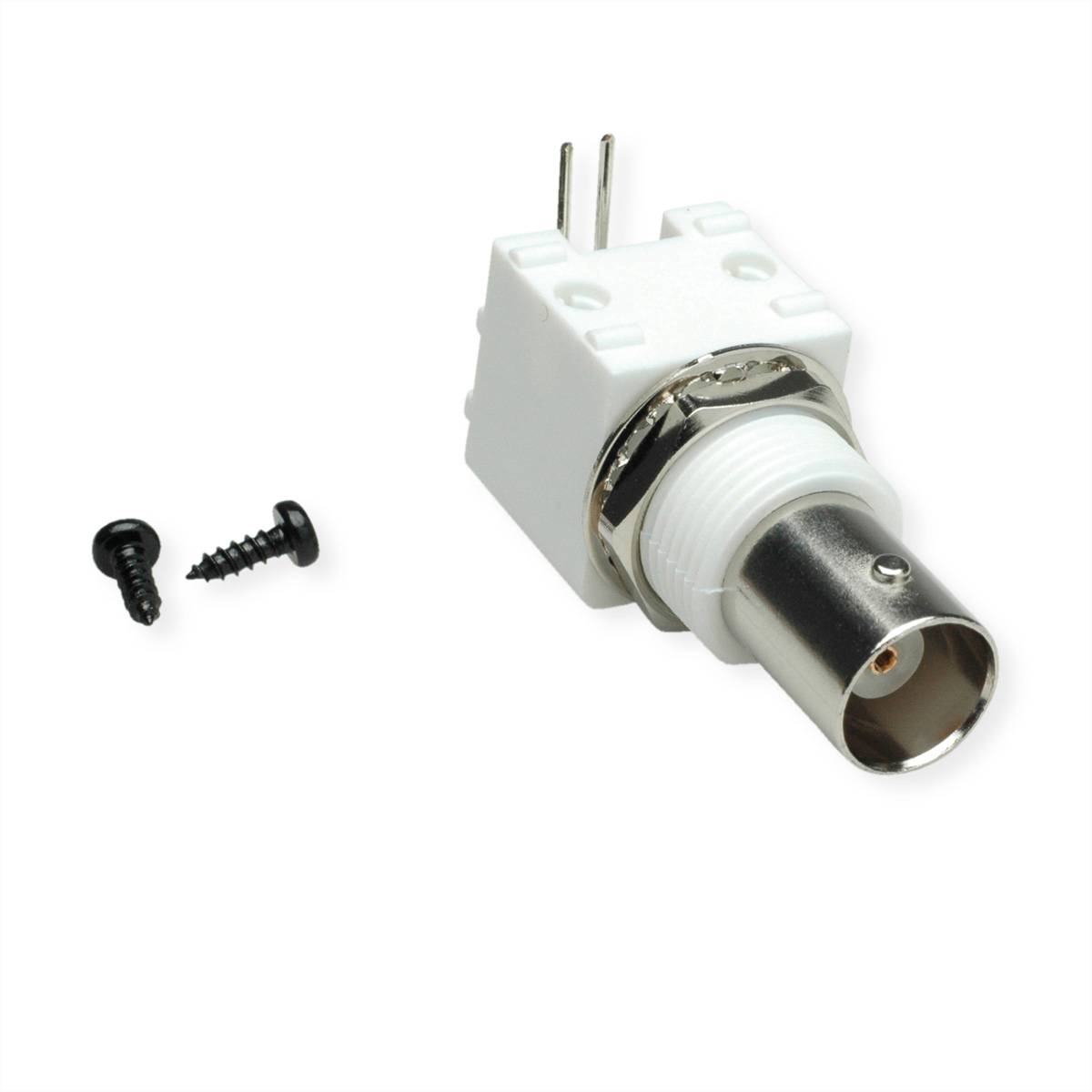

- Telegärtner BNC-Bld-in Bush 50 ohm
