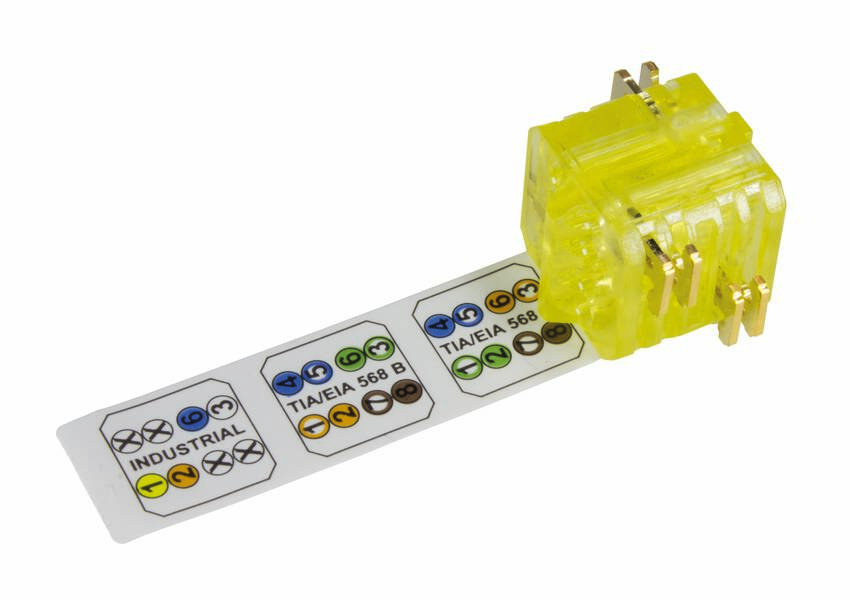

Terminal block 20820000001 HARTING Content: 1 pc(s) Terminal block
Packaging type
Piece
Product type
Terminal block
Number of pins
8
Type
20 82 000 0001
Manufacturer part #
20820000001
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Series: PreLink®
- Component: Completion block
- Connection type: PreLink® insulation displacement connection
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 10
- Colour insert: Yellow
- Standards EN 45545-2
- Net weight: 15 g
- Features: Suitable for connection of solid and flexible wires;Suitable for all PoE versions;Extremely fast preLink® connection technology
- Conductor cross-section: AWG 24 ... AWG 22
- Description: 8-pole
- PROFINET: Yes
- Vibration resistance: 5.72 m/s² according to IEC 61373 Category 1 Class B
- Approvals DNV GL
- Shock resistance: 5 g / 30 ms, 5 impacts / axle and direction according to IEC 61373 Category 1 Class B
- Wire outer diameter: 1.3 ... 1.6 mm
- Packaging type
Piece
- Type
20 82 000 0001
- Product type
Terminal block
- Manufacturer part #
20820000001
- Factory colour
Yellow
- Number of pins
8
- Connection
Cut & Clip connector
- Total no. of pins
8
- Content
1 pc(s)
- Max. temperature
85 °C
Other
Documents & Downloads
Datasheet
Datasheet 3005590 Terminal block 20820000001 HARTING Content: 1 pc(s) Terminal block
User & Safety Instructions
User & Safety Instructions 3005590 Terminal block 20820000001 HARTING Content: 1 pc(s) Terminal block
Description
Terminal block, 8-pin
