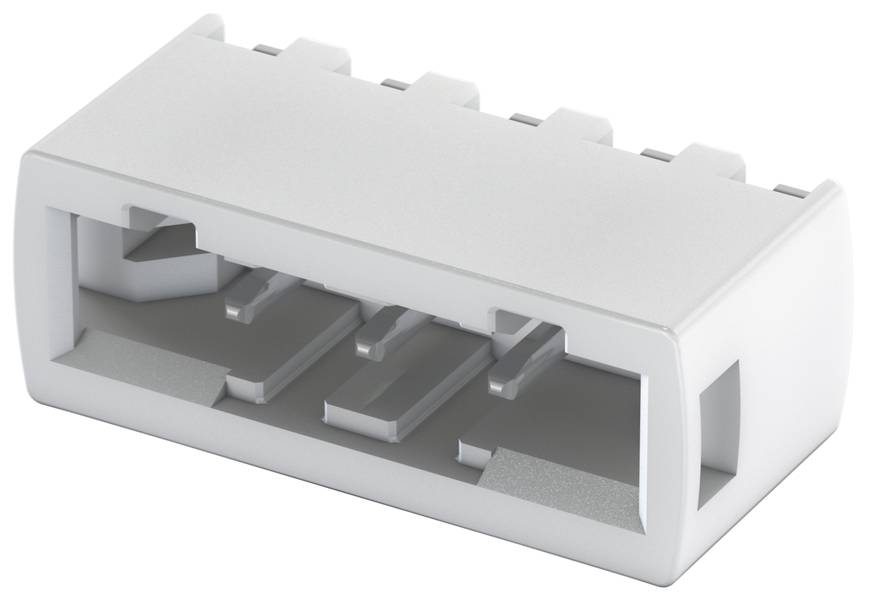

Terminal strip 14110413010160 HARTING Content: 600 pc(s) Terminal strip
Product type
Terminal strip
Number of pins
4
Type
14 11 041 3010 160
Manufacturer part #
14110413010160
Factory colour
White
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Range: Har-flexicon®
- Component: Baseboard
- Connection type: Reflow soldering connection (SMT)
- Type of connection: Circuit board to cable
- Number of contacts: 4
- Plug contact series 1
- Pitch, connection side 2.54 mm
- Rated current 6 A
- Insulation resistance >109 Ω
- Continuous resistance ≤ 20 mΩ
- Temperature limit: -40 ... +125 °C
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Liquid-crystal polymer (LCP)
- Colour insert: White
- Material contacts: Copper alloy; spring steel
- Contact surface: Sn over Ni connectors side; Sn over Ni connection side
- Material flammability class acc. To UL 94: V-0
- Net weight: 0.52 g
- Airway: 1.5 mm
- Creepage distance 1.6 mm
- Rated voltage: 160 V
- Dimensioning surge voltage: 2.5 kV
- Pollution level 3
- Plug-in force ≤ 20 N
- Pull force ≥ 4 N
- Description: Horizontal
- Vibration resistance 5-150 Hz, 5 g, 0.35 mm, 2h/axis
- Type
14 11 041 3010 160
- Product type
Terminal strip
- Manufacturer part #
14110413010160
- Factory colour
White
- Number of pins
4
- Connection
SMT
- Total no. of pins
4
- Content
600 pc(s)
Printed circuit board to cable
Other
160 V
4
Other
-40-125 °C
Other
2.5 kV
Soldering connection
Tin
2.54 mm
1
Liquid crystal polymer
Other
Other
6 A
Documents & Downloads
Datasheet
Datasheet 3008201 Terminal strip 14110413010160 HARTING Content: 600 pc(s) Terminal strip
User & Safety Instructions
User & Safety Instructions 3008201 Terminal strip 14110413010160 HARTING Content: 600 pc(s) Terminal strip
Description
Base panel, horizontal, rated current: 6 A, contacts: 4, copper alloy, Spring steel, Sn via Ni plug side, Sn via Ni connection side
