Testboy TV DAA 16 61811000 CEE adapter 16 mA 400 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 154.58 / piece)
€ 154.58
incl. VAT
14-day return policy included
Highlights & Details

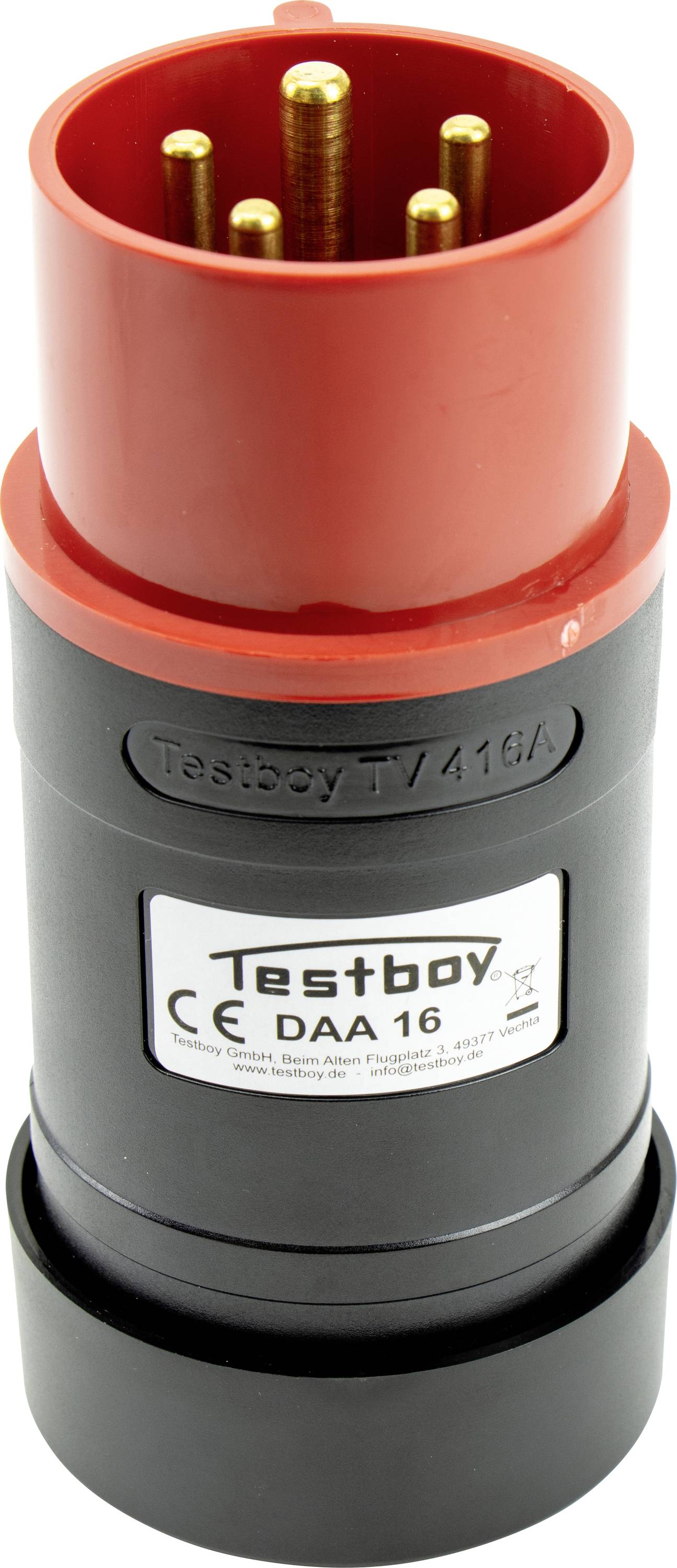

Testboy TV DAA 16 CEE adapter 16 A, 5-pin for installation tester
- For 5-pin CEE sockets (16 A)
- Five contact-proof 4 mm safety sockets for L1, L2, L3, N and PE
- Quick and safe connection of installation testers without dismantling the socket
- Ideal for tests according to DIN VDE 0100
Technical specifications
- Weight 220 g
- Product type
CEE adapter
- Nominal voltage
400 V
- Nominal current
16 mA
- Nominal current - rounded value
16 mA
- Type A
CEE connector (5-pin, 16 A)
- Type B
4 mm socket
- Type
CEE test lead adapter for 4 mm safety sockets
- Max. capacity
16A = CV5043
- Factory colour
Black
Red
- Dim
(L x W x H) 150 x 68 x 150 mm
- Length
150 mm
- Width
68 mm
- Height
150 mm
- No. of PG sockets
0
- Content
1 pc(s)
- Number of pins
5
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3857149 Testboy TV DAA 16 61811000 CEE adapter 16 mA 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3857149 Testboy TV DAA 16 61811000 CEE adapter 16 mA 400 V 1 pc(s)
Description
The Testboy TV DAA 16 CEE-adapter is the ideal solution for electricians, service technicians and test technicians, in order to carry out installation tests on power sockets efficiently and according to standard. With its 5-pole CEE plug it enables the direct lead-out on contact-safe 4 mm safety sockets. As a result, the measurements are carried out comfortably, clearly and with highest work safety – completely without opening the socket.
This text is machine translated.
This text is machine translated.
Features
- Robust plastic housing for professional use
Scope of delivery
- Testboy TV DAA 16 CEE-adapter
