testo 0572 1741 01 174 H Temperature data logger, RH data logger Unit of measurement Temperature, Humidity -20 up to 70
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Highlights & Details
testo 0572 1741 01 174 H Temperature data logger, RH data logger Unit of measurement Temperature, Humidity -20 up to 70 °C 0 up to 100 RH
- Professional software with Excel export function for programming the logger and for data analysis as well as for reporting reports in PDF-format
- Large temperature measurement range from -20 °C to +70 °C.
- Secure automatic data backup in case of empty battery or with changing the battery
- Convenient data storage for up to 16,000 readings
Technical specifications
- White
- Temperature resolution
0.1
- Sampling interval
1 min - 24 hrs
- Memory
16,000 measured values
- Battery life
1 year (15 min sampling rate, +25 °C)
- Dim
(L x W x H) 60 x 38 x 18.5 mm
- Weight
35 g
- Channels
2
- Height
18.5 mm
- Length
60 mm
- Width
38 mm
- Temperature reading range
-20 up to 70 °C
IP20
Manufacturer's standards (no certificate)
- Unit of measurement
Temperature
Humidity
- Type
174 H
- Reading accuracy temperature
0.5 °C
- Humidity reading range (max.)
100 RH
- Humidity reading range (min.)
0 RH
- Temperature reading range (max.)
70 °C
- Temperature reading range (min.)
-20 °C
- Temperature accuarcy (details)
0.1
- Power supply
CR 2032 button cell (2x), included
- Product type
Temperature data logger
Documents & Downloads
Datasheet
Datasheet 3489292 testo 0572 1741 01 174 H Temperature data logger, RH data logger Unit of measurement Temperature, Humidity -20 up to 70
User & Safety Instructions
User & Safety Instructions 3489292 testo 0572 1741 01 174 H Temperature data logger, RH data logger Unit of measurement Temperature, Humidity -20 up to 70
Description

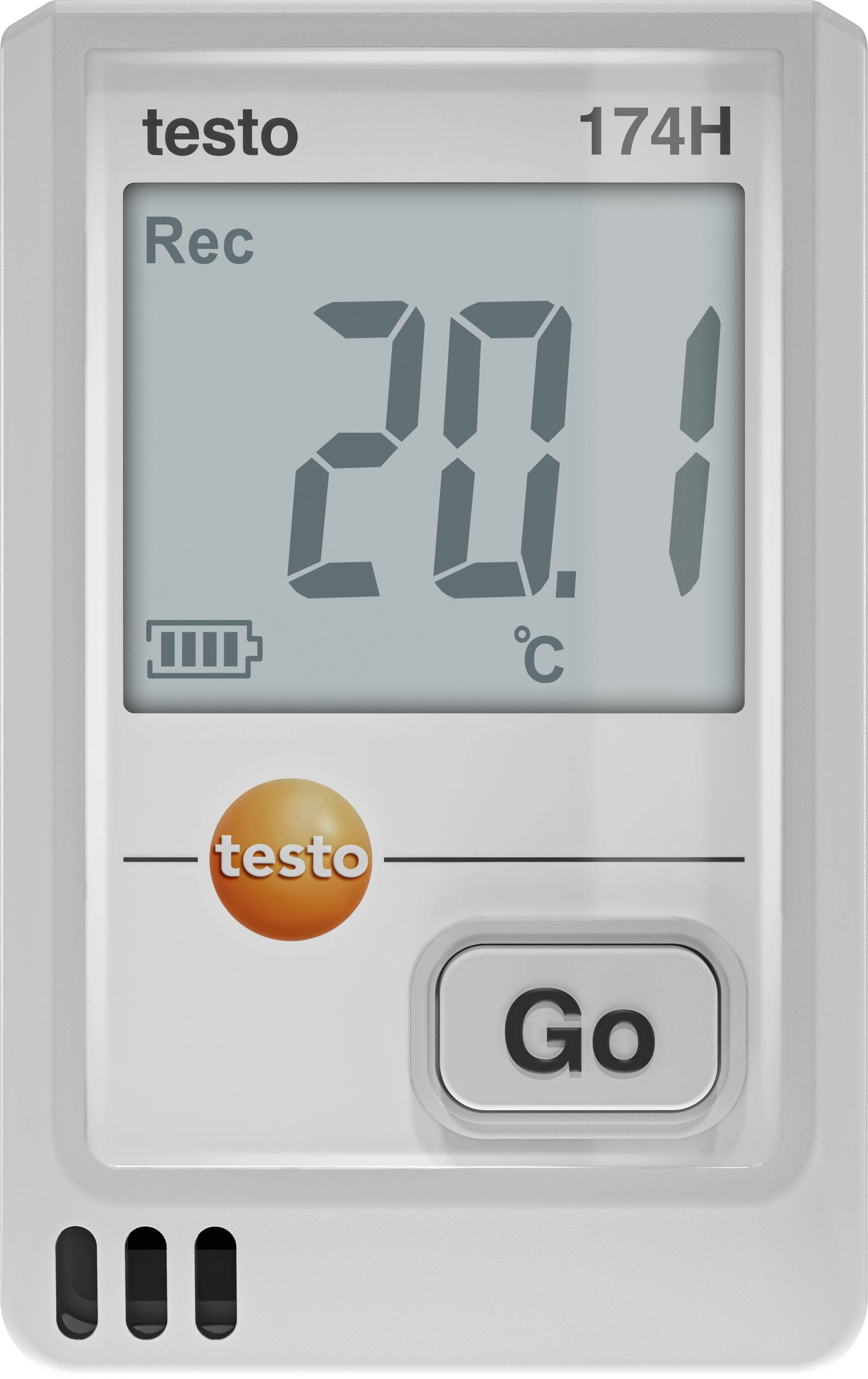

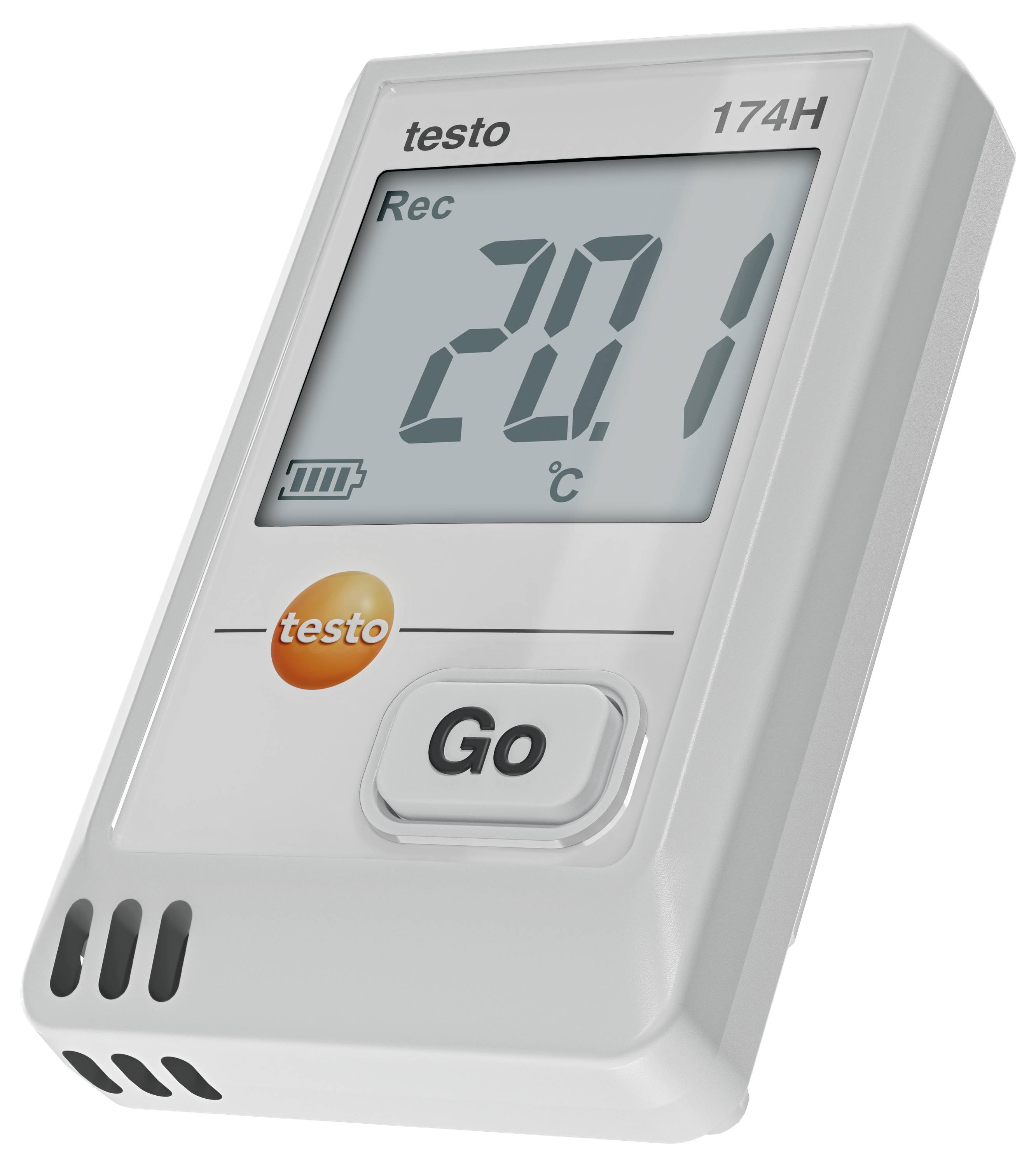

The mini data logger testo 174 H is suitable for monitoring during the storage of temperature and humidity-sensitive goods like food or in archives as well as for controlling the building climate. It reliably detects temperature and humidity within a measurement range of -20 °C to +70 °C, indicates current values and limit value violations and stores up to 16,000 measured values. With user-friendly programming and evaluation via a professional software including Excel export and PDF report generation it enables a precise and comfortable monitoring and documentation.
Programming and analysis of the data logger for temperature and humidity
You can choose between two software versions for programming and reading your data logger and evaluating the measured data on a PC:
ComSoft Basic software – available free download – for quick programming of the data logger and simple data analysis
ComSoft Professional software – additionally available optionally – offers different options for a more detailed analysis of the temperature and humidity values
Note: Please download the latest software version before starting up the USB logger. You can find it in the download area.
This text is machine translated.
Programming and analysis of the data logger for temperature and humidity
You can choose between two software versions for programming and reading your data logger and evaluating the measured data on a PC:
ComSoft Basic software – available free download – for quick programming of the data logger and simple data analysis
ComSoft Professional software – additionally available optionally – offers different options for a more detailed analysis of the temperature and humidity values
Note: Please download the latest software version before starting up the USB logger. You can find it in the download area.
This text is machine translated.
Scope of delivery
- Mini temperature data logger testo 174 H
- Wall bracket
- Battery (2 x CR 2032 Lithium)
- USB 2.0 data transfer cable
- Test report
