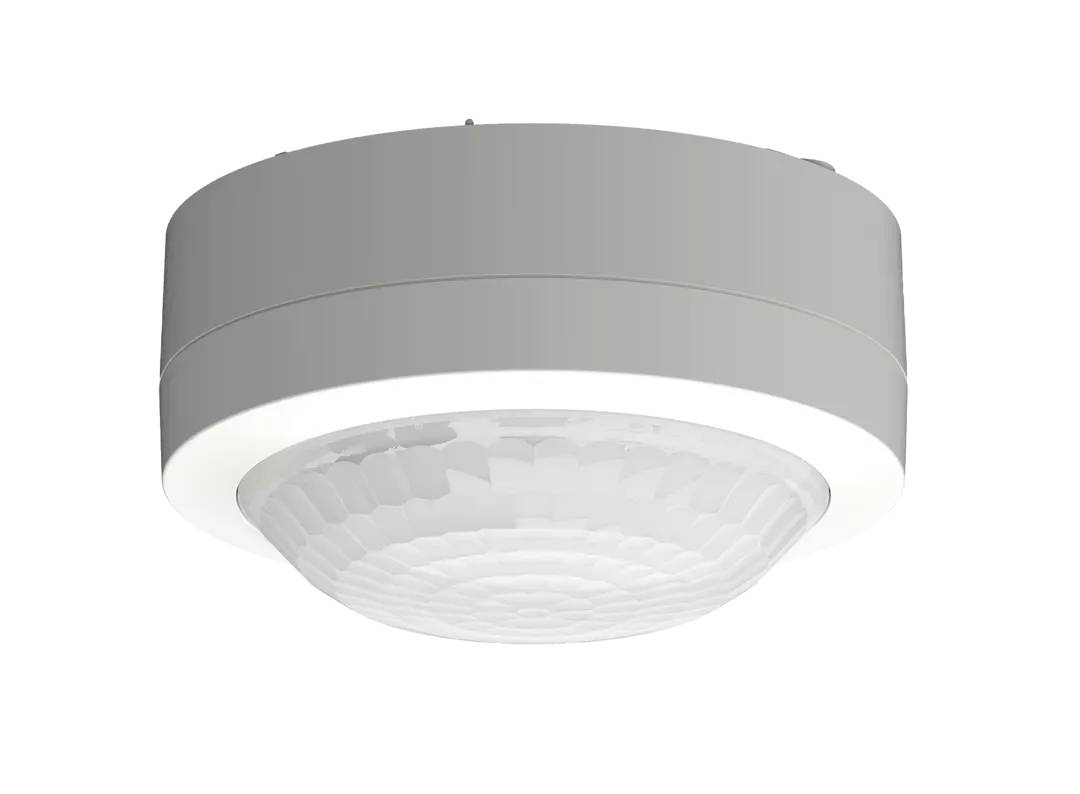

Theben 1030203 Surface-mount Motion detector IP21
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Horizontal coverage angle 0-360°
- Colour: white
- Type of connection: Screw terminal
- Halogen-free FALSE
- Surface protection: Untreated
- Nom. voltage: 230/230 V
- Product type
Motion detector
- Mounting type
Surface-mount
- Similar RAL
9010
IP21
- Type
Motion detector
- Width
90 mm
- Height
47 mm
- Dim
(W x H x D) 90 x 47 x 90 mm
- Depth
90 mm
- Material
Plastic
- Temp.
-5-40 °C
- Sensor type
Passive Infrared
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3819746 Theben 1030203 Surface-mount Motion detector IP21
User & Safety Instructions
User & Safety Instructions 3819746 Theben 1030203 Surface-mount Motion detector IP21
Information
Information 3819746 Theben 1030203 Surface-mount Motion detector IP21
Description
Motion detector (PIR) for surface mounting on the surface indoors, round detection range 360°, cross walking 8 m, sitting 3 m at 2, 5 m installation height, 1 channel light (relay 230 V), automatic motion and brightness-dependent control for lighting, mixing light, operation as a fully automatic, brightness switching value adjustable via potentiometer, follow-up time adjustable via potentiometer, Factory default setting allows immediate operation (brightness switching value 100 Lux, follow-up time 2 min.)
