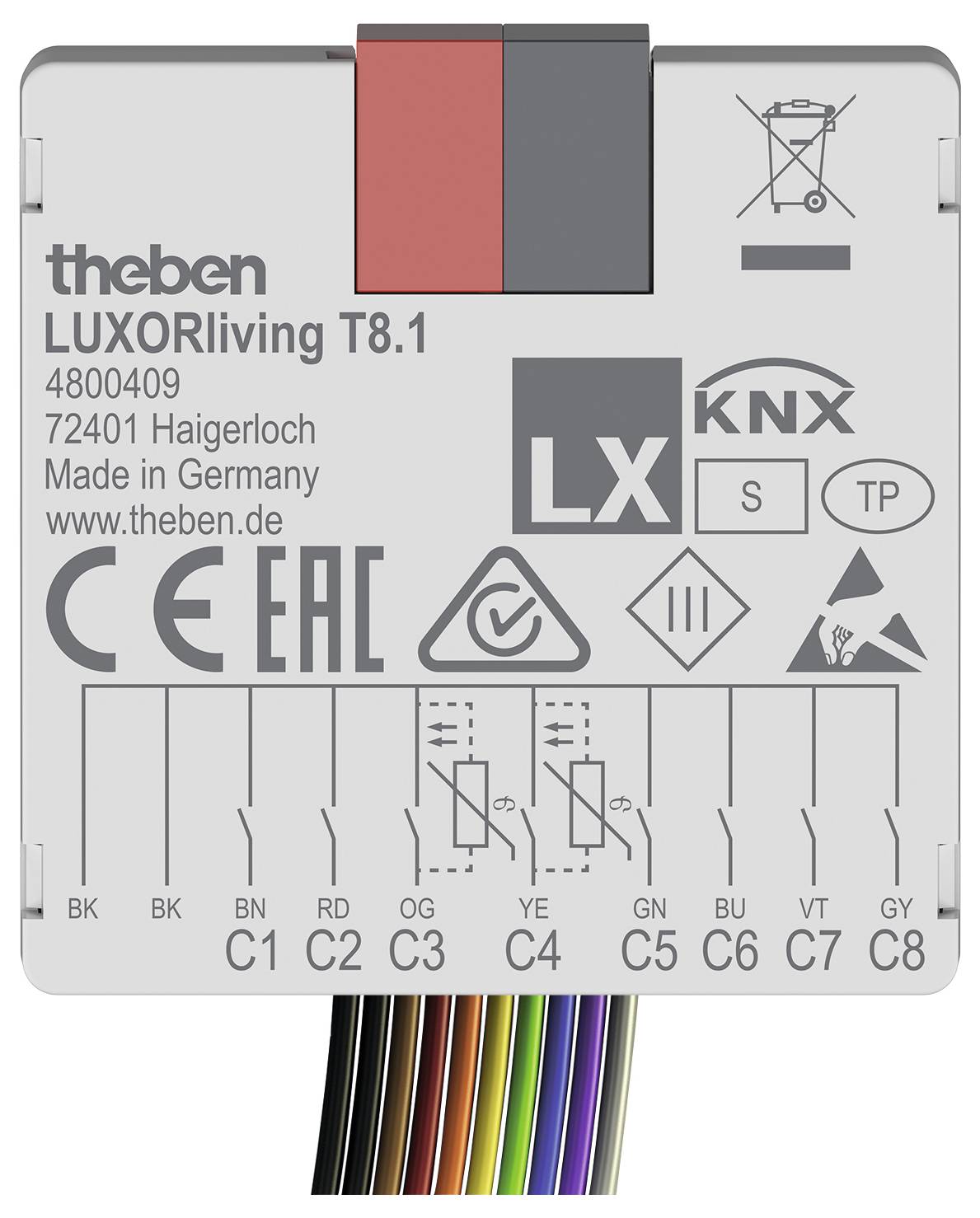

Theben 4800409 Interface LUXORliving T8.1
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Protection class (IP) IP20
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: LUXORLIVING
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With LED indicator: No.
- With bus connection: Yes
- Bus module removable: No.
- Controlling LED: No.
- Number of inputs: 8
- Input voltage: 5 V
- Type of input voltage: AC/DC
- External query voltage required: Yes
- Min Depth of the device socket 13 mm
- Product type
Interface
- Used at
Indoors
- Operating voltage
5 V DC/AC
- Data transfer (Smart Home)
Wired
- Channels
8
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547833 Theben 4800409 Interface LUXORliving T8.1
Description
Button interface/binary input for up to 8 channels for the Smart HOME SYSTEM LUXORLIVING, potential-free inputs, cable connection 10-pin, can be installed together with conventional sensors/switches in flush-mounted sockets, software functions: Switches/buttons, dimming, blinds, inputs/outputs can be parameterized, LED can be connected to output
