Theben 4800429 Actuator LUXORliving S16
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Actuator
- Max. switching capacity
2000 W
3680 W
- Data transfer (Smart Home)
Wired
- Channels
16
- Width
102 cm
- Height
155 cm
- Depth
76 cm
- Dim
(W x H x D) 102 x 155 x 76 cm
- Hub
Not required, optional for remote access
n.rel.
- Weight
0.593 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3360556 Theben 4800429 Actuator LUXORliving S16
User & Safety Instructions
User & Safety Instructions 3360556 Theben 4800429 Actuator LUXORliving S16
User & Safety Instructions 3360556 Theben 4800429 Actuator LUXORliving S16
Description

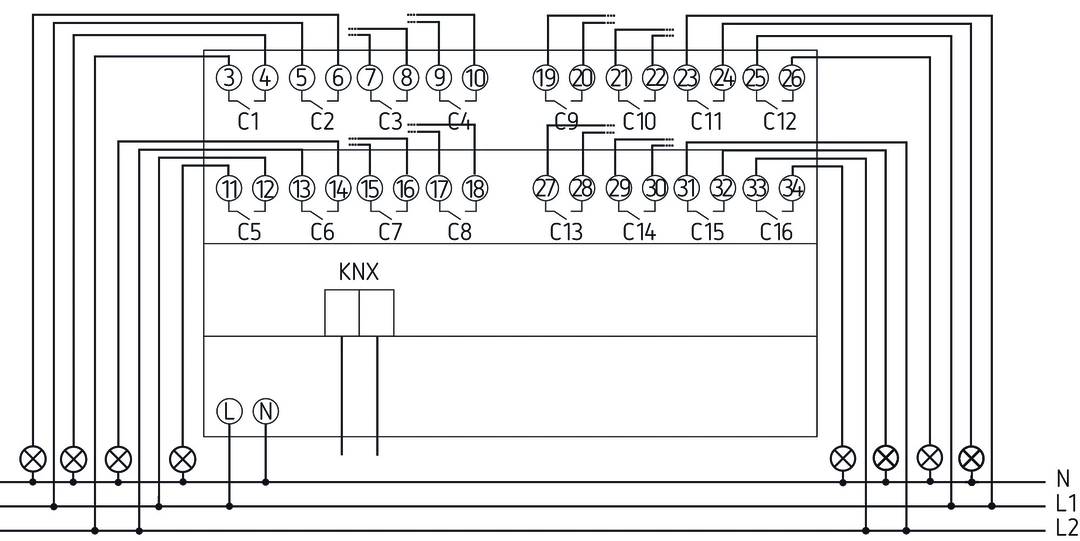

Switch actuator with relay outputs for 16 switching channels for the Smart HOME SYSTEM LUXORLIVING, LED switching status indicator for each channel, hand switch with status display (even without bus voltage), contact type (NC/NO) and participation in central commands like continuous on and central switching, switching functions: On/off, staircase light with pre-warning, feedback object for each channel, central objects with and without priority
