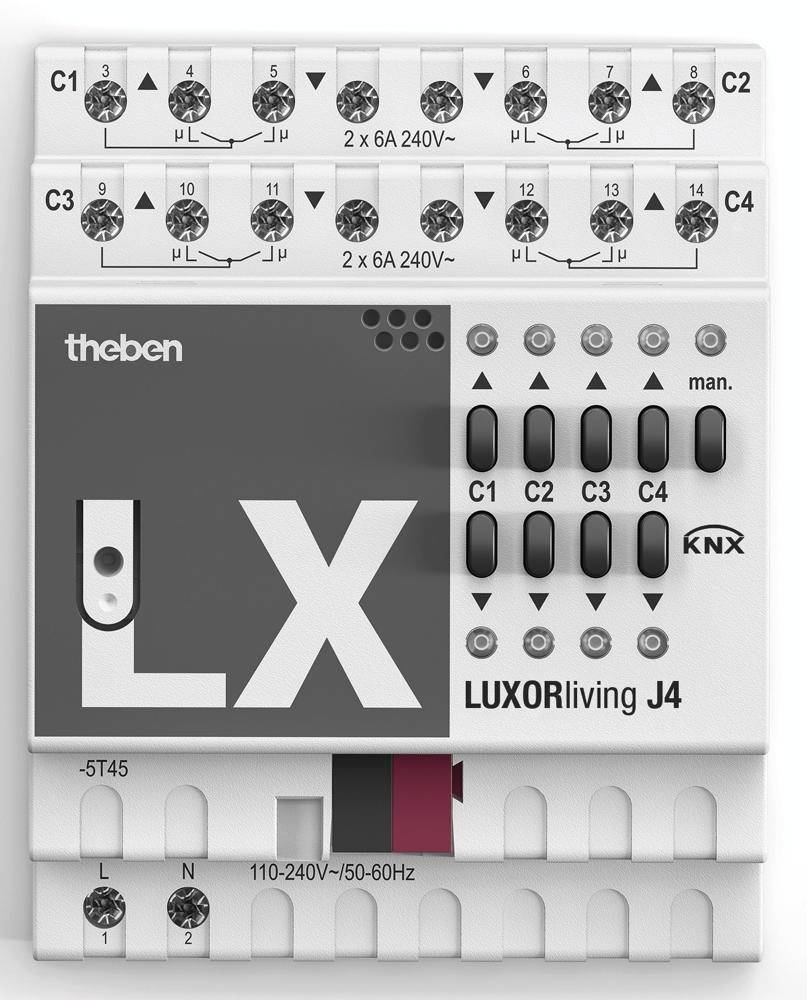

Theben KNX 4800450 Window blinds/shutter actuator LUXORliving J4
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Width: 4 TE
- Output: closer, 6A
- Switching output: potential-free, for SELV suitable when the whole device SELV switches
- Product type
Window blinds/shutter actuator
- Series
KNX
- Used at
Indoors
IP20
- Operating voltage
240 V AC
0.3 W
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
DIN rail
- Hub
Not required, optional for remote access
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2157939 Theben KNX 4800450 Window blinds/shutter actuator LUXORliving J4
User & Safety Instructions
User & Safety Instructions 2157939 Theben KNX 4800450 Window blinds/shutter actuator LUXORliving J4
User & Safety Instructions 2157939 Theben KNX 4800450 Window blinds/shutter actuator LUXORliving J4
Description
Blind actuator for the Smart Home System Luxor living, 4-way drive control, relay outputs for 4 drives, for example for blinds, shutters, awnings, manual operation on the device, slip correction, drive can be freely parameterized, hand switch UP/DOWN and LEDs, 4 NO contacts
