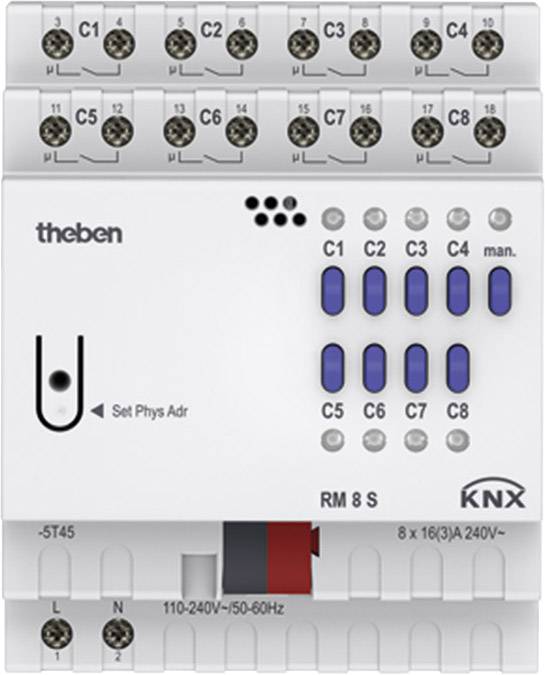

Theben KNX 4940220 Actuator RM 8 S KNX
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Stand-by power: ~0.3 W
- Mounting type: DIN-rail
- Width: 4 TE
- Connection type: KNX Bus Terminal
- Max. Conductor cross-section: Solid: 0.5 mm² (Ø 0.8) to 4 mm²; stranded conductor with wire-end sleeve: 0.5 mm² to 2.5 mm²
- Number of channels: 8
- contact type: Closer, 16 A, 3 A
- Ohm resistive load: 3680 W
- glow/halogen lamp load: 2000 W
- fluorescent lamp load (KVG) parallel compensated: 1300 W (140 µF)
- fluorescent lamp load (KVG) not compensated: 2000 VA 2000
- VA lamp load (EVG): 1200 W
- Compact fluorescent lamps: 300 W
- Inrush current: Max. 800 A / 200 µs
- Voltage output: 240 V AC
- Switching output: Potential-free
- Product type
Actuator
- Series
KNX
- Max. switching capacity
3680 W
IP20
- Operating voltage
240 V AC
0.3 W
- Data transfer (Smart Home)
Wired
- Channels
8
- Mounting type
DIN rail
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
n.rel.
DRA (DIN-rail adapter)
16 A
0.5 W
110-230 V
TRUE
FALSE
FALSE
TRUE
4
FALSE
IP20
TRUE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2157682 Theben KNX 4940220 Actuator RM 8 S KNX
User & Safety Instructions
User & Safety Instructions 2157682 Theben KNX 4940220 Actuator RM 8 S KNX
Description
KNX switch actuator with relay outputs for 8 switching channels, series mounting case width 4 TE, LED status indicator for each channel, hand switch with status display (even without the bus voltage), connections, Contact Type (NC/NO) and participation in central commands such as permanently on, permanently off, central and scene storage/retrieval, Switching Functions: on/off, impulse, a/Aus-Verzogerung according to DIN 18015-2, stair light with warned logical links: Lock, and, share, or. Status feedback object for each channel, central objects with and without priority, store and retrieve scenes (object), Scene object for each channel
This text is machine translated.
This text is machine translated.
