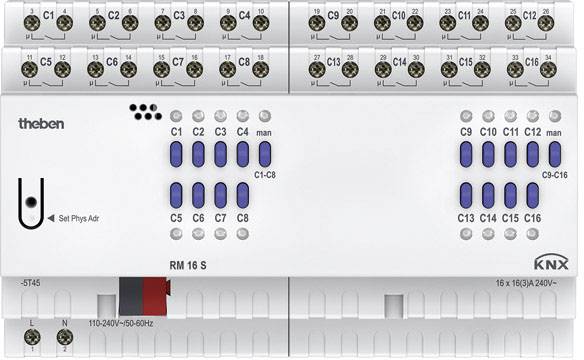

Theben KNX 4940225 Actuator RM 16 S KNX
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Stand-by power: ~0.5 W
- Mounting type: DIN-rail
- Width: 8 TE
- Connection type: KNX Bus Terminal
- Max. Conductor cross-section: Solid: 0.5 mm² (Ø 0.8) to 4 mm²; stranded conductor with wire-end sleeve: 0.5 mm² to 2.5 mm²
- Number of channels: 16
- contact type: Closer, 16 A, 3 A
- Ohm resistive load: 3680 W
- glow/halogen lamp load: 2000 W
- fluorescent lamp load (KVG) parallel compensated: 1300 W (140 µF)
- fluorescent lamp load (KVG) not compensated: 2000 VA 2000
- VA lamp load (EVG): 1200 W
- Compact fluorescent lamps: 300 W
- Inrush current: Max. 800 A / 200 µs
- Voltage output: 240 V AC
- Switching output: Potential-free
- Product type
Actuator
- Series
KNX
- Max. switching capacity
3680 W
- Used at
Indoors
IP20
- Operating voltage
240 V AC
- Data transfer (Smart Home)
Wired
- Channels
16
- Mounting type
DIN rail
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
DRA (DIN-rail adapter)
16 A
0.5 W
110-230 V
TRUE
FALSE
FALSE
TRUE
8
FALSE
IP20
TRUE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2157683 Theben KNX 4940225 Actuator RM 16 S KNX
User & Safety Instructions
User & Safety Instructions 2157683 Theben KNX 4940225 Actuator RM 16 S KNX
Description
KNX switch actuator with relay outputs for 16 switching channels, series mounting case width 8 TE, LED status indicator for each channel, hand switch with status display (even without the bus voltage), connections, Contact Type (NC/NO) and participation in central commands such as permanently on, permanently off, central and scene storage/retrieval, Switching Functions: on/off, impulse, a/Aus-Verzogerung according to DIN 18015-2, stair light with warned logical links: Lock, and, share, or. Status feedback object for each channel, central objects with and without priority, store and retrieve scenes (object), Scene object for each channel
