Buy TOOLCRAFT PCB holder (L x W x H) 165 x 330 x 125 mm 1 pc(s)

A black metal stand with adjustable clamps, suitable for musical instruments or technical equipment, on a white background.

Black tablet stand with two height-adjustable mountings, sturdy base and non-slip feet. Ideal for presentations.

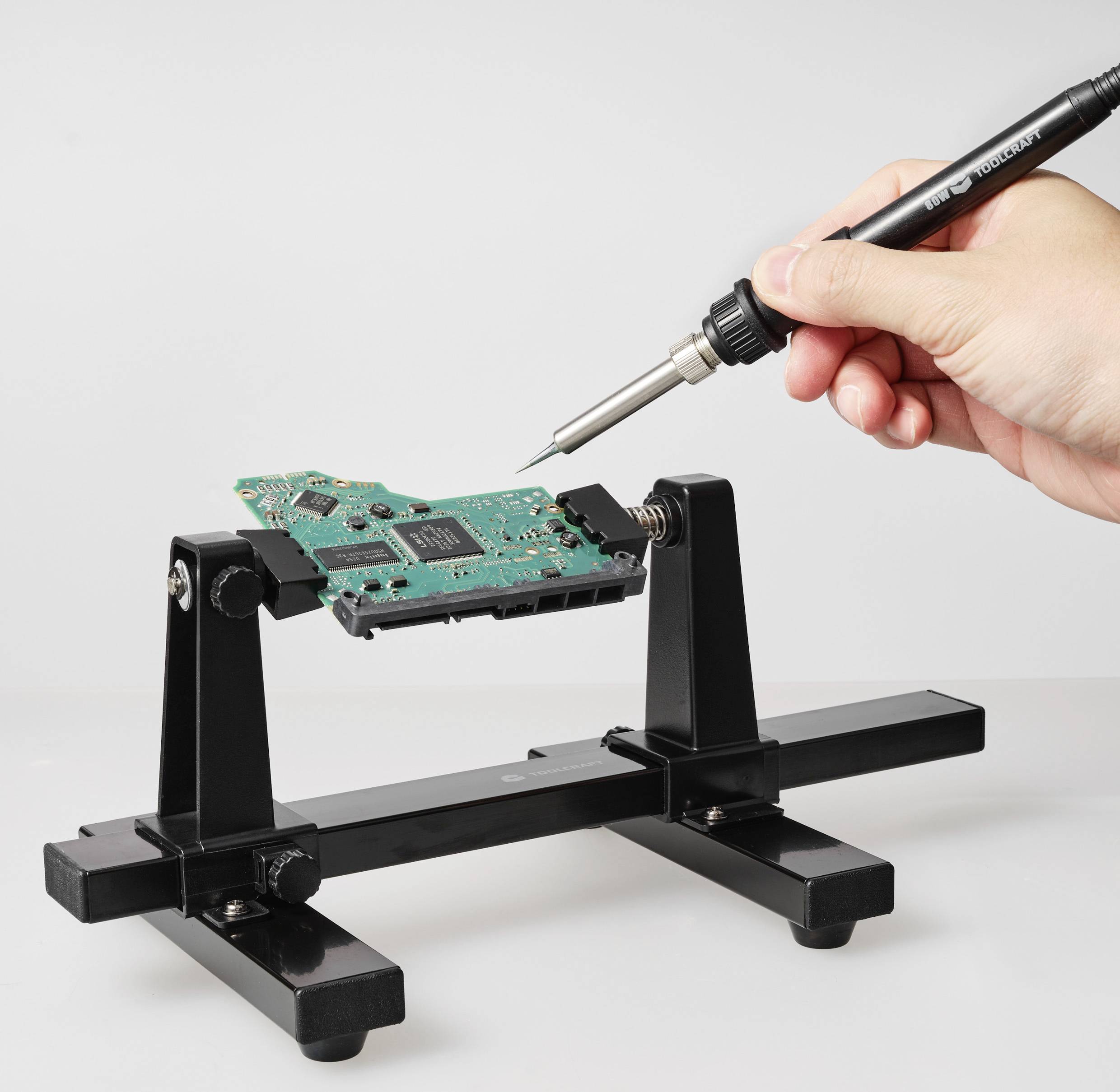

A hand holds a soldering iron over a circuit board that is secured in a holder.

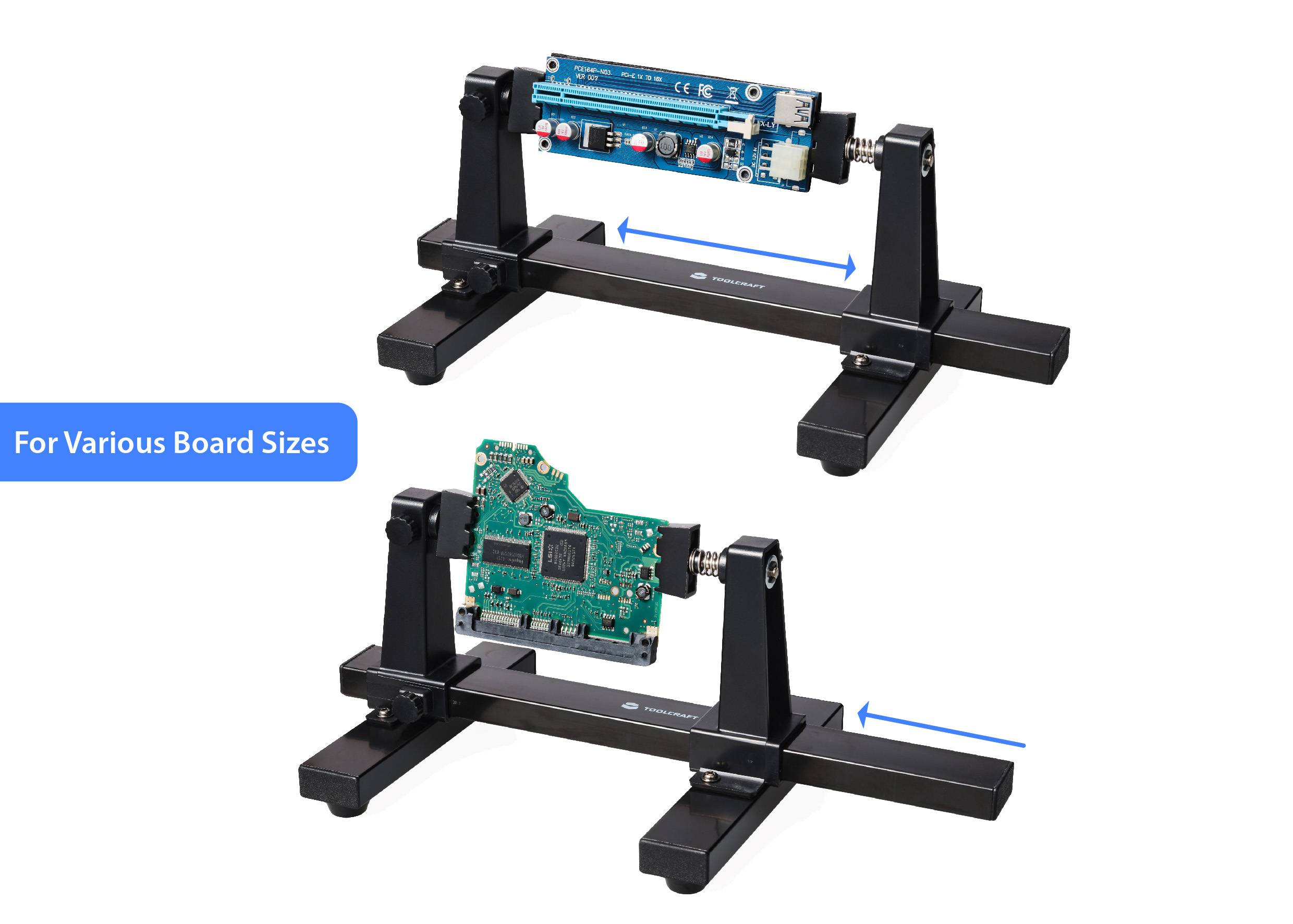

An adjustable holder shows two printed circuit board sizes it supports. Arrows illustrate adjustment possibilities.

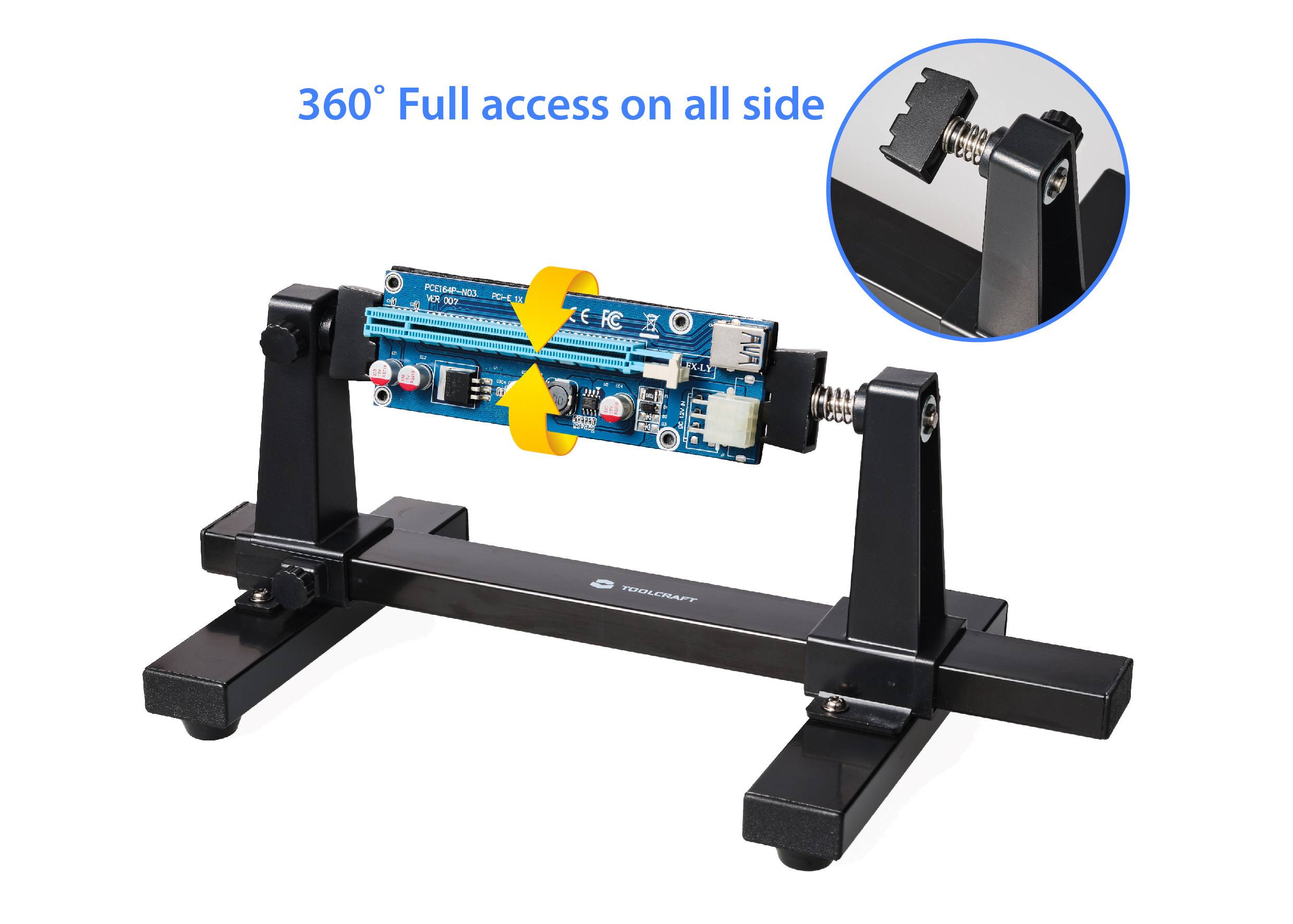

A rotatable PCB holder enables 360-degree access to all sides. A diagram shows the mounting in detail.

1/5

134 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 11.76 / piece)

€

Report legal concerns

Highlights & Details

Adjustable PCB holder

Span max. 220 mm
Clamp jaws rotatable by 360º
Anti-slip feet

Technical specifications

Dim. (W x H x D): 330 x 125 x 165 mm
Weight: 455 g

Width: 330 mm

Height: 125 mm

Length: 165 mm

Type: 1372161

Dim: (L x W x H) 165 x 330 x 125 mm

RoHS-compliant

Product type: PCB holder

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1372161 TOOLCRAFT PCB holder (L x W x H) 165 x 330 x 125 mm 1 pc(s)

Description

The clamp jaws feature grooves of different size in order to hold boards of different thickness. One of the two clamp jaws features a spring in order to facilitate insertion and removal of the board.

Scope of delivery

PCB holder
2x foot
Operating instructions
