TOOLCRAFT TO-11347413 Battery circuit breaker 12 V DC, 24 V DC
EAN:
Part number:
Item no:
Number
Total (€ 9.99 / piece)
€ 9.99
incl. VAT
14-day return policy included
Highlights & Details

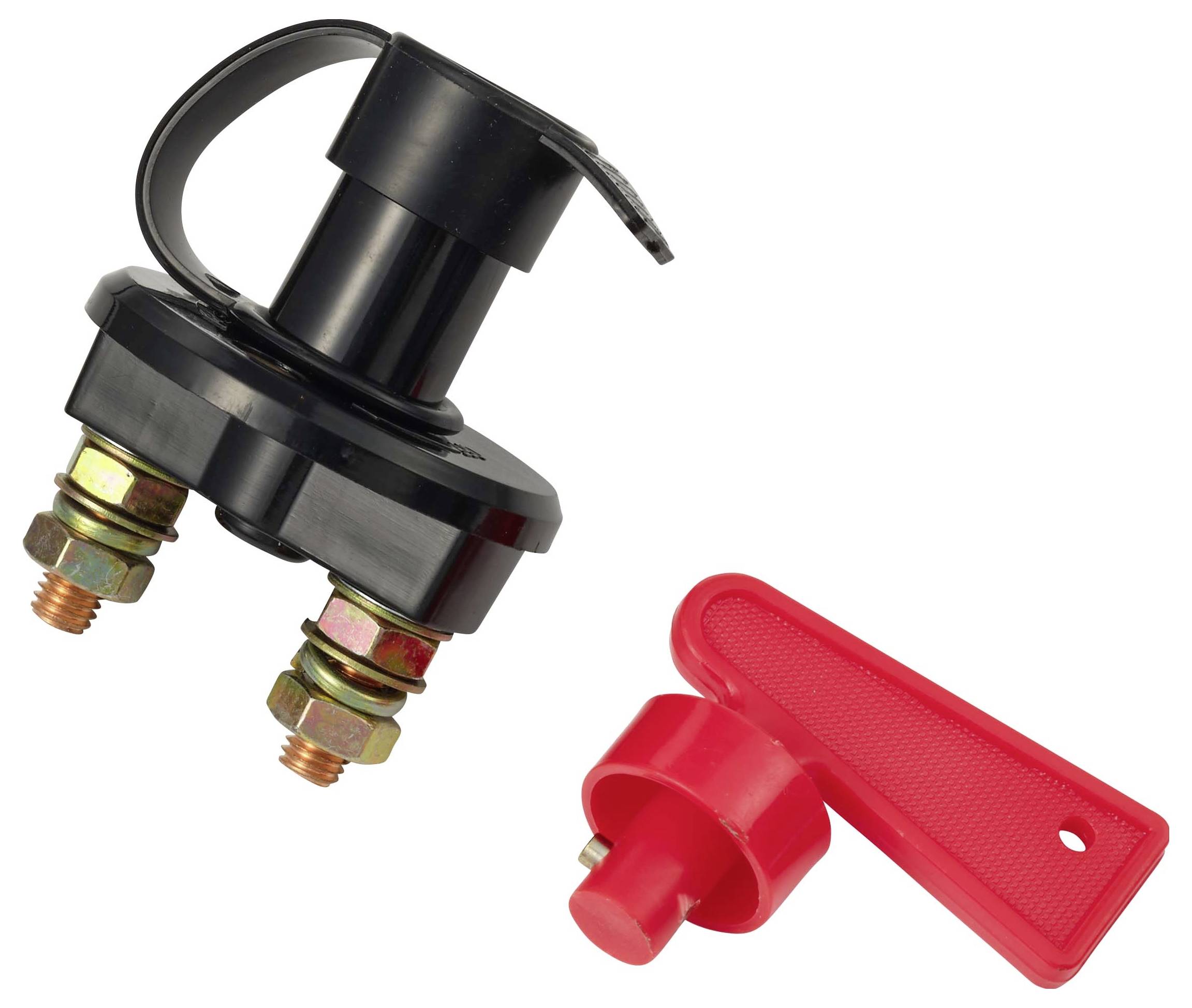

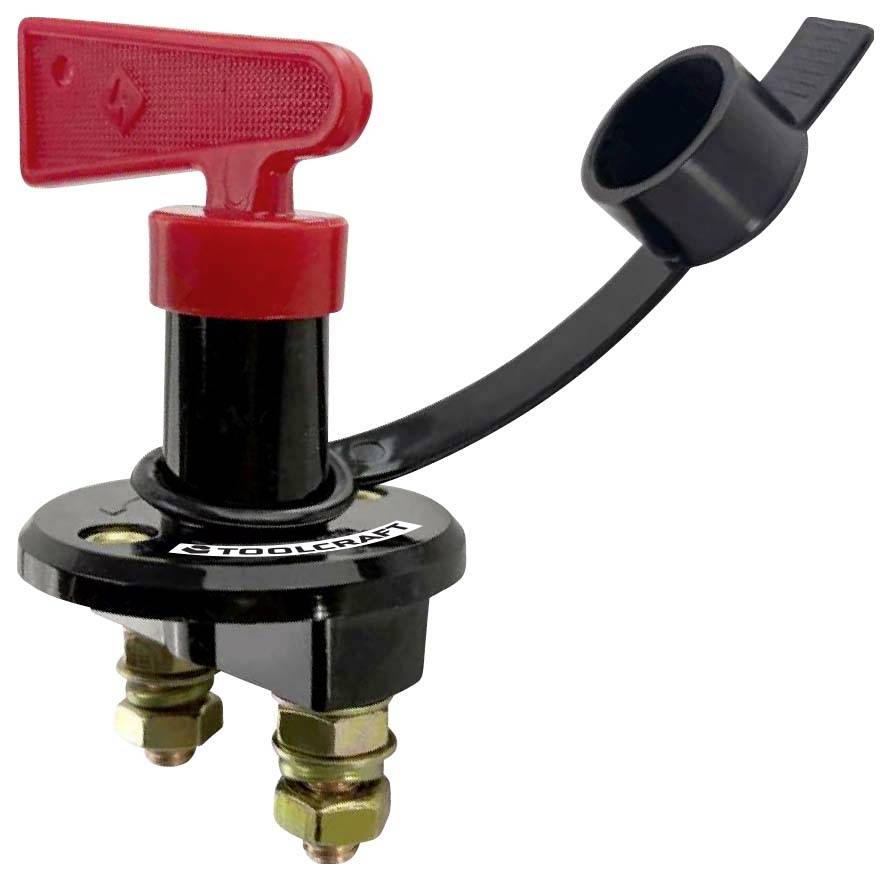

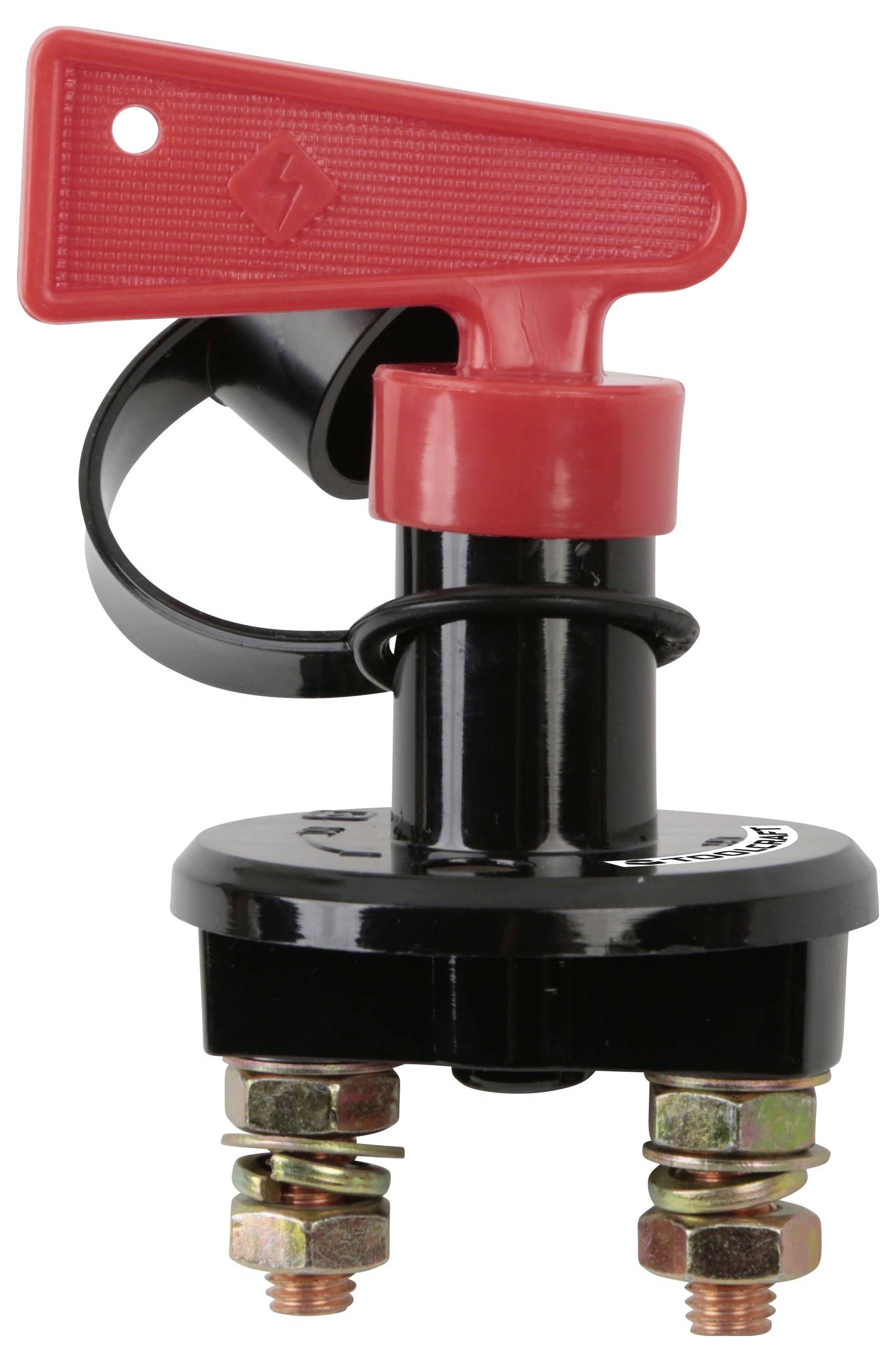

TOOLCRAFT emergency OFF car safety switch
- Battery Disconnect Switch for 12 V and 24 V systems

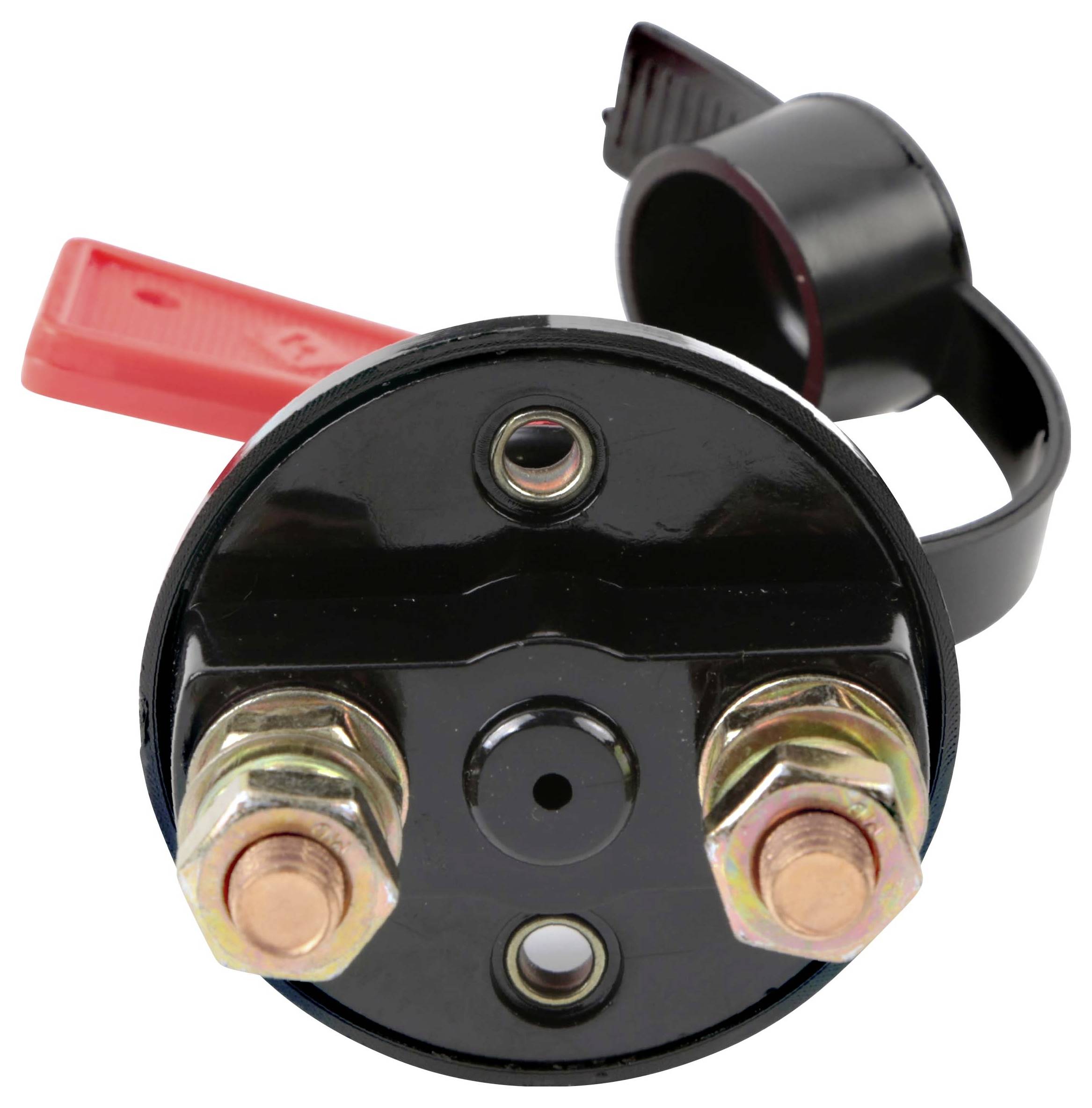

- M8 connector
- Removable key
- Protective cap prevents contamination
- Safely isolates the battery from vehicle electrical systems
- Ideal for motorhomes, caravans, construction equipment, and boats

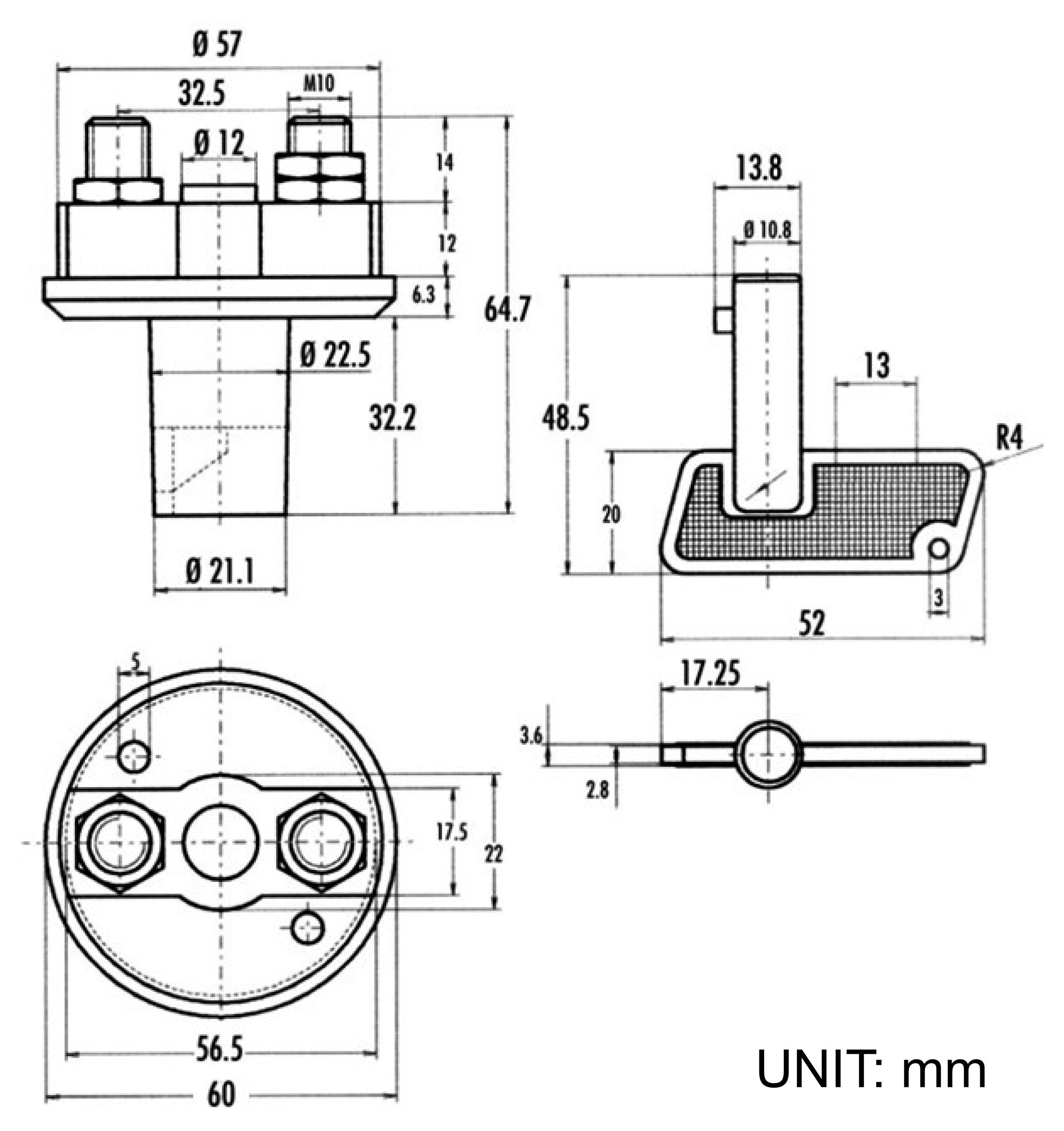

Technical specifications
- Dim
(L x W x H) 60 x 60 x 108 mm
- Product type
Battery circuit breaker
- Operating voltage
12 V DC
24 V DC
- Weight
131 g
- Width
60 mm
- Height
108 mm
- Length
60 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3782471 TOOLCRAFT TO-11347413 Battery circuit breaker 12 V DC, 24 V DC
Description
The TOOLCRAFT emergency stop safety switch securely isolates the vehicle battery from the on-board electrical system for 12 V and 24 V systems. The component is suitable for use in fleet vehicles, construction machines, mobile homes and boats.
Removable key and protective cap
The circuit breaker is equipped with a removable key, WAS prevents unauthorized start-up of the vehicle or the machine. A built-in protective cap also protects the M8 connector from impurities.
Electrical power values
In normal operation (on / off in 2 positions), the model offers a permissible continuous current of 200 A at 12 V and is designed for a maximum starting current of 1000 A.
Easy to set up
Owing to the low weight of 131 g and the compact outer dimensions (60 x 108 x 60 mm) a simple installation is possible in the vehicle.
This text is machine translated.
Removable key and protective cap
The circuit breaker is equipped with a removable key, WAS prevents unauthorized start-up of the vehicle or the machine. A built-in protective cap also protects the M8 connector from impurities.
Electrical power values
In normal operation (on / off in 2 positions), the model offers a permissible continuous current of 200 A at 12 V and is designed for a maximum starting current of 1000 A.
Easy to set up
Owing to the low weight of 131 g and the compact outer dimensions (60 x 108 x 60 mm) a simple installation is possible in the vehicle.
This text is machine translated.
Features
- Operation: On/Off 2 positions
- Continuous current: 200 A 12 V
- Cranking current: 1000 A 12 V
Scope of delivery
- Battery switch
- Detachable keys
