TOOLCRAFT Water pressure switch 1.5 up to 10 bar 220 - 240 V
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 0.98
€ 24.22
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Highlights & Details

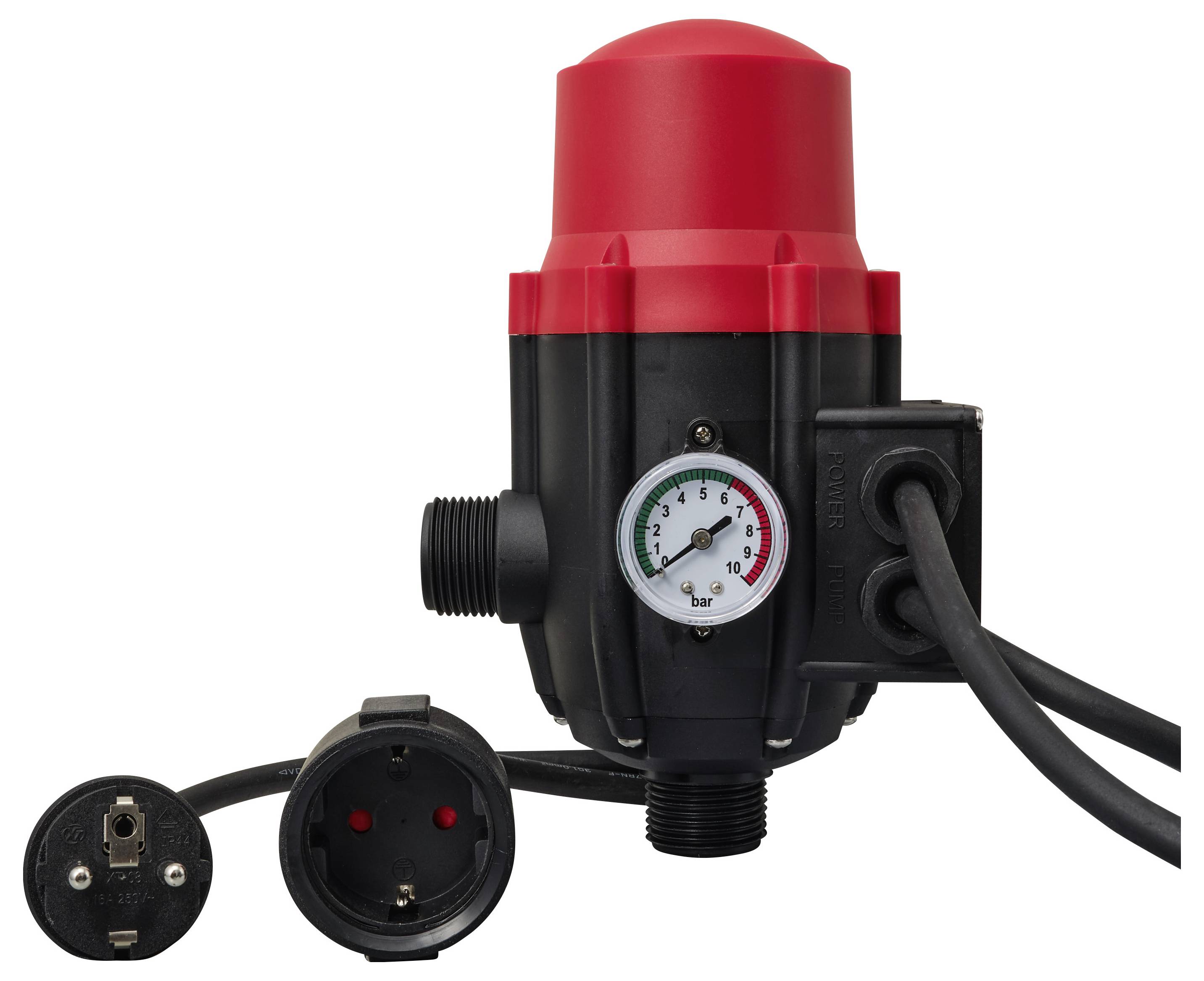

Toolcraft Electronic pressure switch with manometer
- 90° inlet and outlet
- Reliable plug-and-play solution for automatic control of garden, deep well, centrifugal, or water pumps
- Ensures constant water pressure within the pipe system
- Protects connected pumps from damage caused by dry running, kickback effects, and overheating
- Adjustable starting pressure from 1.5 to 2.5 bar
- Working pressure up to 10 bar
Technical specifications
- Product type
Water pressure switch
- Operating voltage
220 - 240 V
- Switching current (max.)
10 A
- Operating pressure (min.)
1.5 bar
- Operating pressure (max.)
10 bar
- Operating pressure range
1.5 up to 10 bar
- Switch-on pressure
1.5 bar
- Max. operating pressure
10 bar
- Internal thread
G1"
- Cable length
1 m
- Max. temperature
1 °C
- Min. temperature
-25 °C
IP44
- Dim
(L x W x H) 120 x 150 x 225 mm
- Length
120 mm
- Width
150 mm
- Height
225 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3701938 TOOLCRAFT Water pressure switch 1.5 up to 10 bar 220 - 240 V
Warranty Terms
Warranty Terms 3701938 TOOLCRAFT Water pressure switch 1.5 up to 10 bar 220 - 240 V
Description
The electronic pump control system from TOOLCRAFT is a plug-and-play solution for the automatic control of garden, deep well, gyroscope or water pumps. It ensures a constant water pressure within the piping system and is supplied in a plastic-free packaging.
Device protection and security
The system protects connected pumps against damage from dry running, pressure surges and overheating. An integrated backflow preventer also contributes to safe handling in daily operation.
Pressure adjustment and control

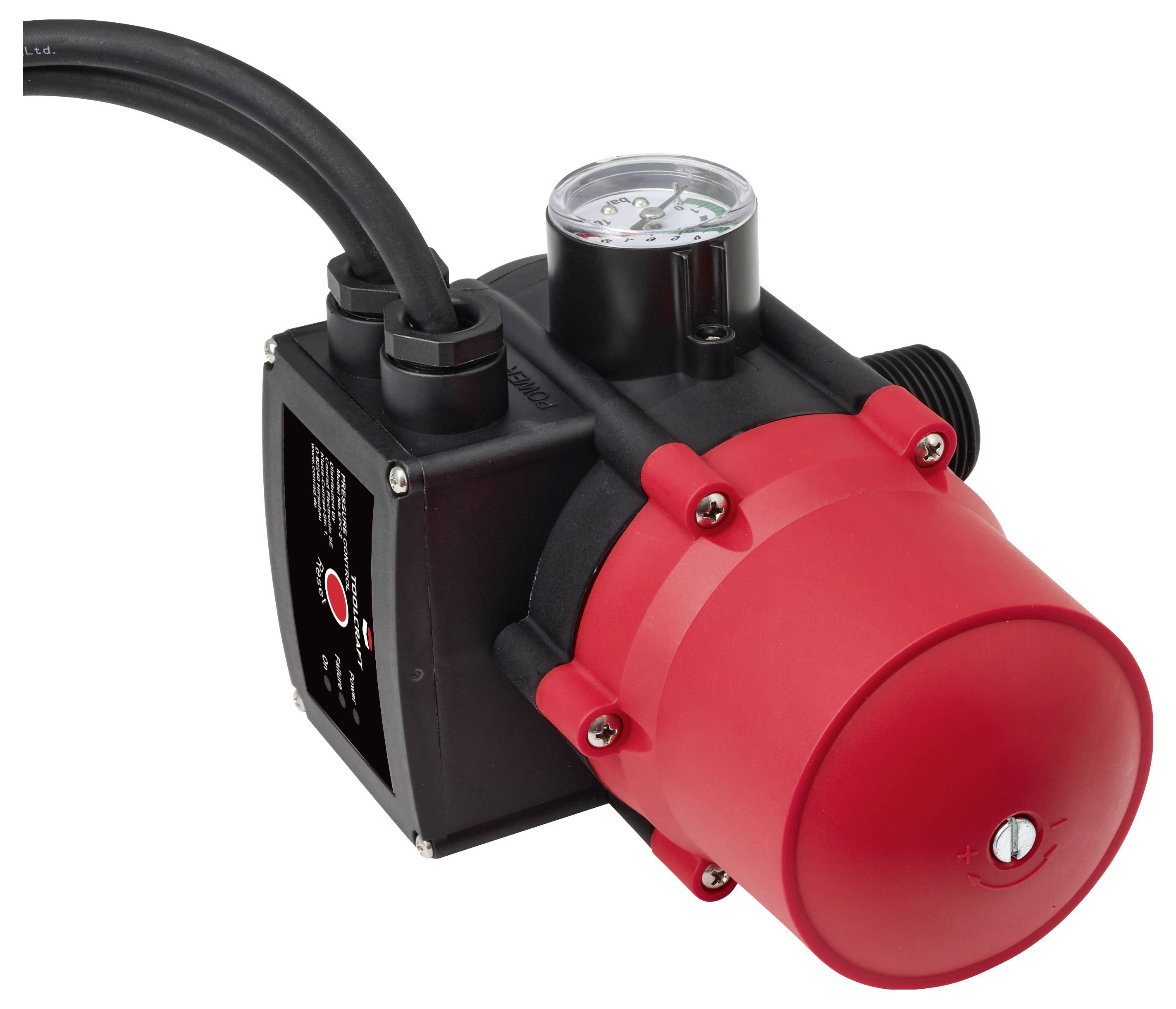

The switch-on pressure can be adjusted variably between 1.5 and 2.5 bar, while the maximum operating pressure is 10 bar. A built-in manometer allows real-time monitoring of the current pressure conditions directly on the device.
Construction and connections

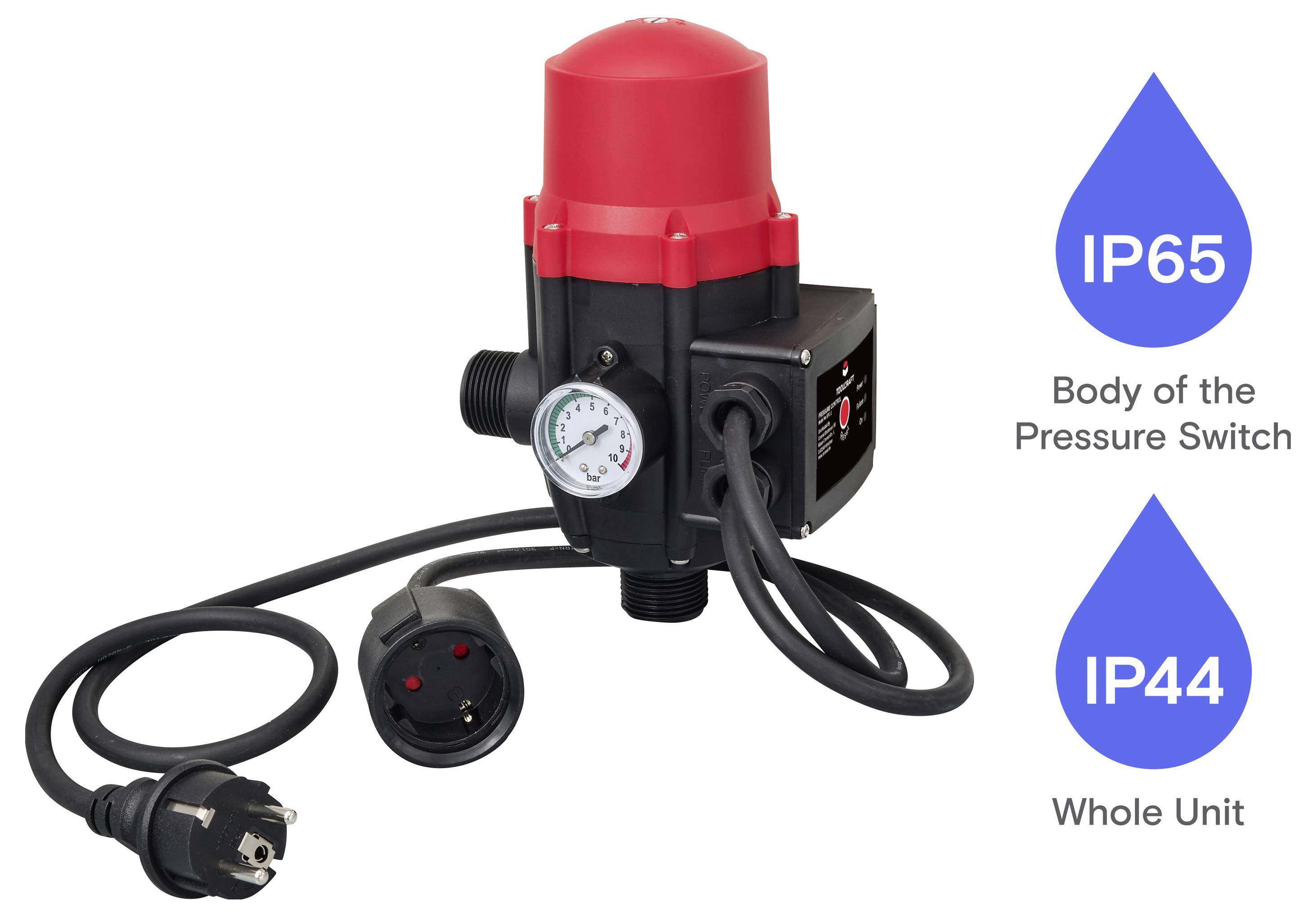

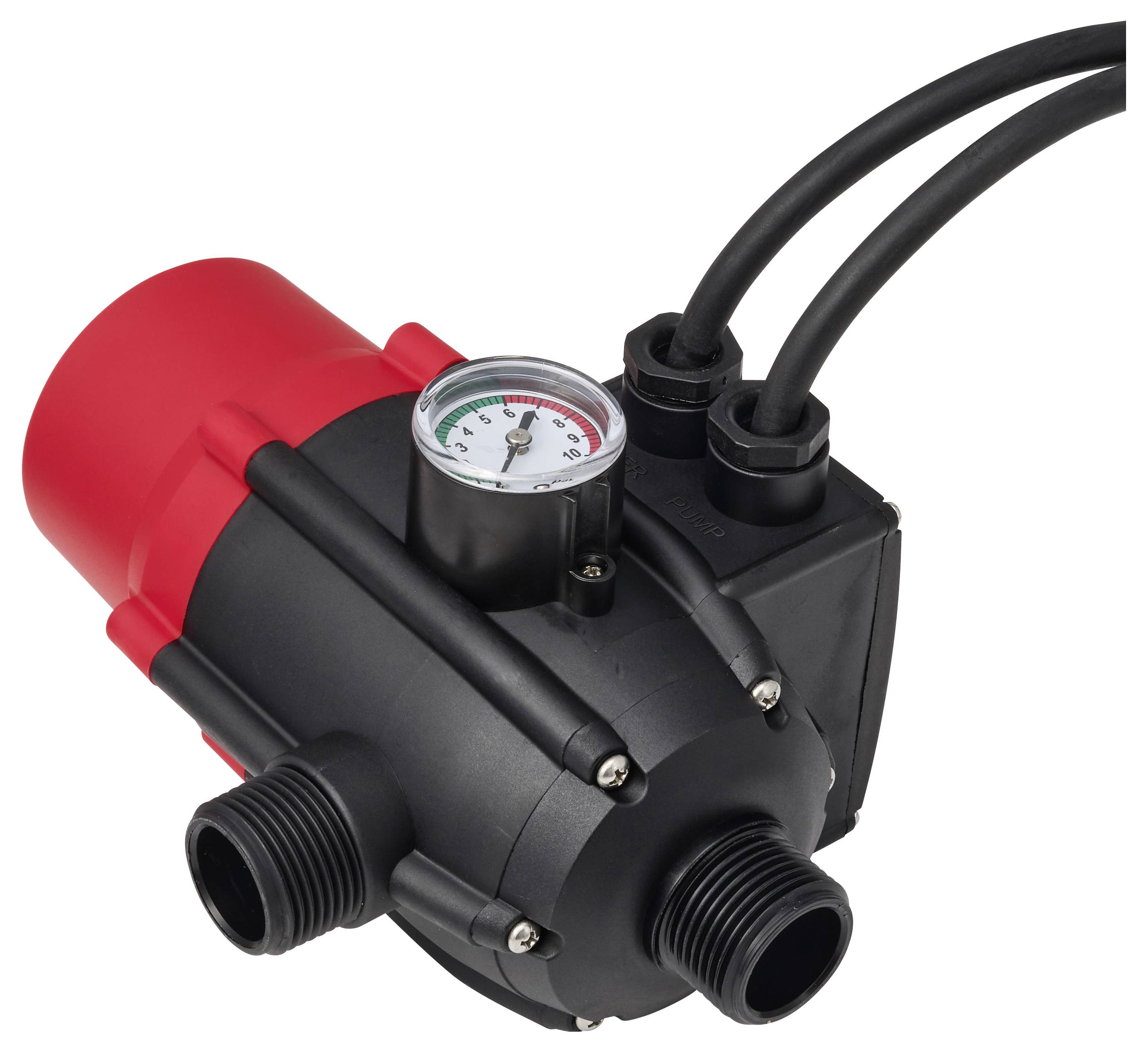

The control system has a 90 degree inlet and outlet and two connections with a 25.4 mm (1 inch) external thread. The pressure switch housing is IP65 protected, while the entire unit is IP44 rated and designed for ambient temperatures from -25°C to 1°C.
This text is machine translated.
Device protection and security
The system protects connected pumps against damage from dry running, pressure surges and overheating. An integrated backflow preventer also contributes to safe handling in daily operation.
Pressure adjustment and control
The switch-on pressure can be adjusted variably between 1.5 and 2.5 bar, while the maximum operating pressure is 10 bar. A built-in manometer allows real-time monitoring of the current pressure conditions directly on the device.
Construction and connections
The control system has a 90 degree inlet and outlet and two connections with a 25.4 mm (1 inch) external thread. The pressure switch housing is IP65 protected, while the entire unit is IP44 rated and designed for ambient temperatures from -25°C to 1°C.
This text is machine translated.
Features
- Integrated backflow preventer
- Built-in pressure gauge for real-time monitoring
- Automatic on/off control for garden and water pumps
- Two connections with standard 1 inch male threads
- IP65-rated pressure switch housing and IP44-rated overall unit protection
Scope of delivery
- Electronic pressure switch
