Name: TP-LINK ES216G Omada ES216G V1.6 Managed network switch 16 ports 32 Gbit/s
Brand: TP-LINK
SKU: 3799856

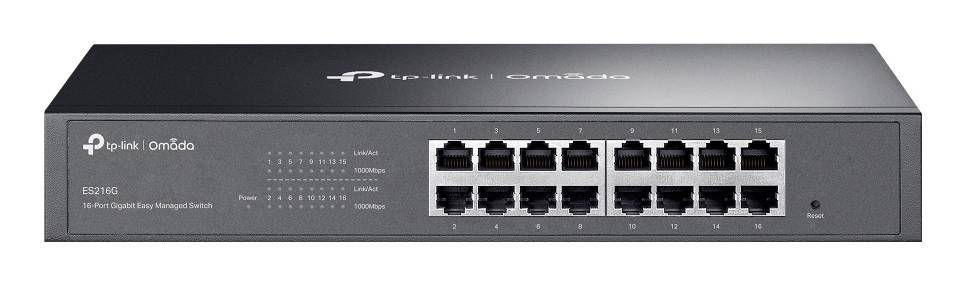

Front view of a TP-Link Omada 16-port gigabit Ethernet switch with status lights, two rows of RJ45 ports, and a reset button on the right.

Front view of a black APC Back-UPS battery backup unit with ventilation grille, power switch, and AC inlet on the right.

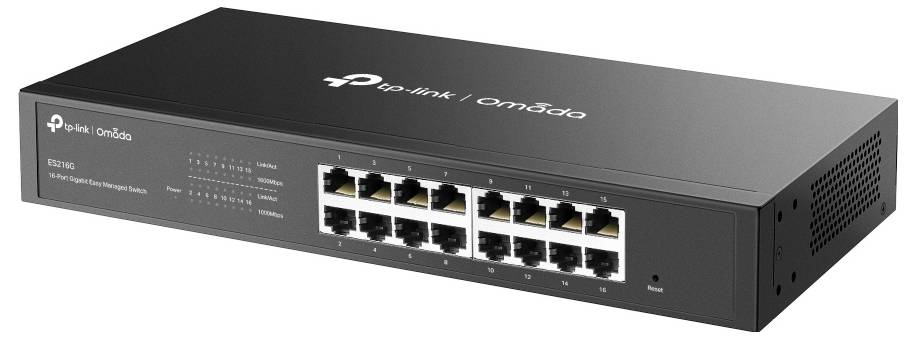

Black TP-Link Omada 16-port Ethernet switch, front view with multiple RJ45 ports and status lights.

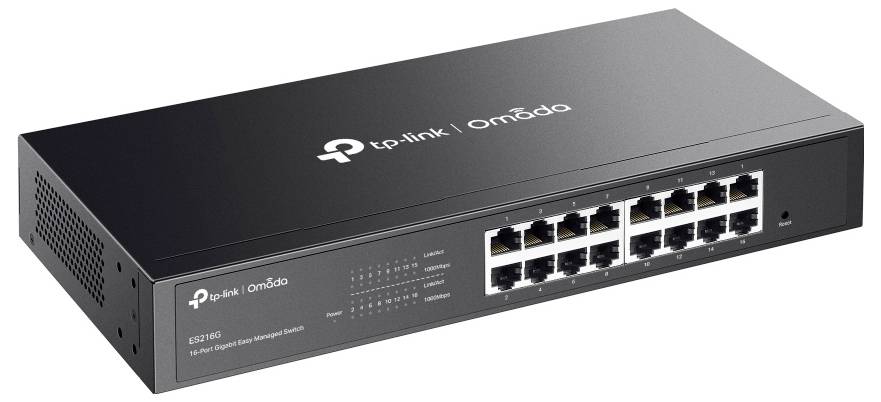

Black TP-Link Omada Ethernet switch with 16 RJ45 ports on the front panel and status LEDs, shown at an angle on a white background.

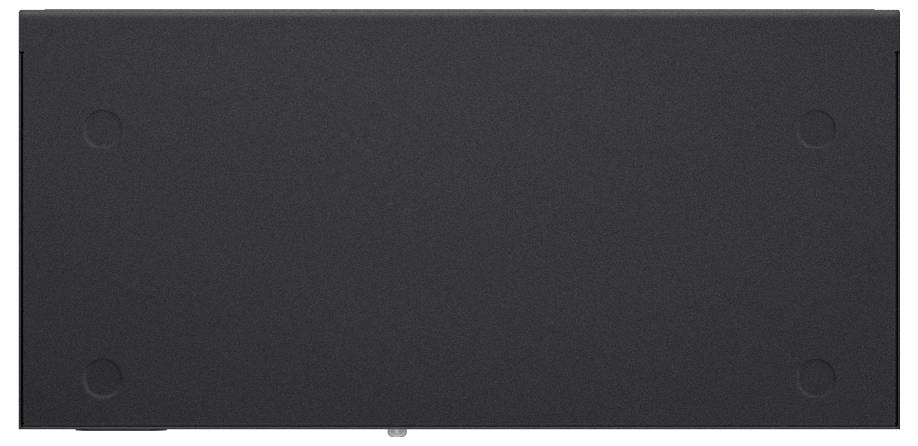

Front view of a plain black rectangular panel or case with four small circular marks near the corners.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada ES216G network switch managed L2 Gigabit Ethernet (10/100/1000) black

Managed L2 Web-based management
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 16
MAC address table: 8000 entries Routing/switching capacity: 32 Gb/s.
Rack installation
AC power supply included
This text is machine translated.

Technical specifications

Energy source: AC

Product type: Managed network switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 32 Gbit/s

Working principle: Managed switch

10/100/1000 Mbps ports: 16 x

MAC addresses: 8000

Width: 294 mm

Height: 44 mm

Depth: 140 mm

Type: Omada ES216G V1.6

Factory colour: Black

Port: 16 ports

Power supply (details): 100 - 240 V

UKCA: yes

Fanless: yes

Operating temperature (T-T): -5 - 50 °C

Basic switching RJ-45 Ethernet ports quantity: 16

Packet buffer memory: 4 MB

Storage relative humidity (H-H): 5 - 90 %

Auto-negotiation: yes

Switching capacity: 32 Gbit/s

Heat dissipation: 28.52 BTU/h

Rack mount kit: yes

Loop protection: yes

Jumbo frames: 15000

Flow control support: yes

Power over Ethernet (PoE): no

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Zero Touch Provisioning (ZTP): yes

Web-based management: yes

Store-and-forward: yes

Gigabit Ethernet (copper) ports quantity: 16

Cloud-managed: yes

Firmware upgradeable: yes

Rack mounting: yes

Mean time between failures (MTBF): 2131140 h

Flash memory: 64 MB

MAC address table: 8000 Eintragungen

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 32

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: no

Storage temperature (T-T): -40 - 70 °C

Surge protection voltage: 6 kV

Forwarding rate: 23.8 Mpps

Surge protection: yes

User guide: yes

Power consumption (max): 8.4 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799856 TP-LINK ES216G Omada ES216G V1.6 Managed network switch 16 ports 32 Gbit/s
