Name: TP-LINK ES228GMP Omada ES228GMP V1.6 Managed network switch 24 ports 56 GBit/s PoE
Brand: TP-LINK
SKU: 3799845

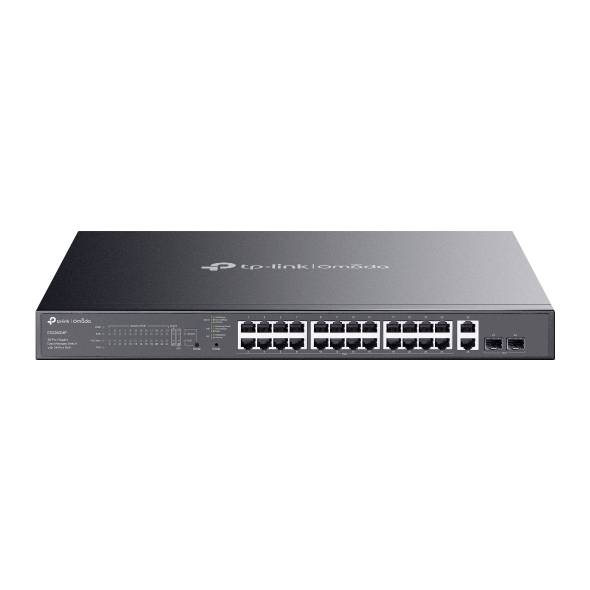

Rackmount TP-Link network switch with multiple Ethernet ports and status lights on a plain white background.

Front view of a black TP-Link rackmount network device with power button, Ethernet port, and status lights on the front panel.

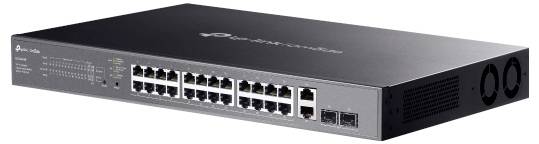

Front view of a black 24-port Ethernet network switch with status lights, two uplink ports, and ventilation fans on the right side.

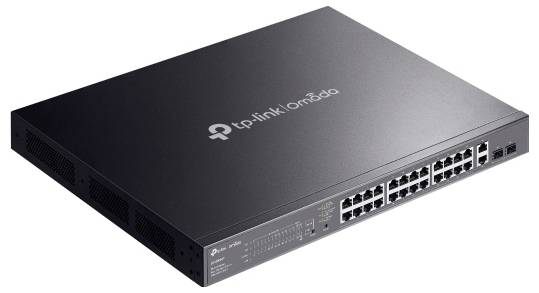

Black TP-Link Omada network switch with multiple Ethernet ports on the front panel.

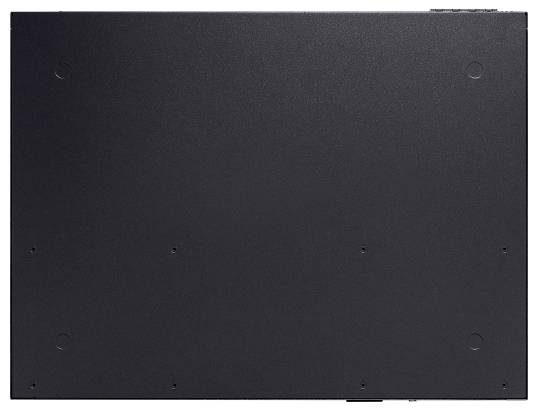

Plain black rectangular panel with small mounting holes near the corners and edges.<br>

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada ES228GMP network switch managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) black

Managed L2 Web-based management
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 26
10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X.
MAC address table: 8000 entries Routing/switching capacity: 56 Gb/s.
Rack installation
AC power supply includes Power over Ethernet (PoE)

Technical specifications

Number of fans: 2 fans
Energy source: AC

Product type: Managed network switch

Transfer rate: 56 GBit/s

Working principle: Managed switch

IEEE 802.3af PoE: 24

SFP ports: 2 x

10/100/1000 Mbps ports: 24 x

Router features: PoE

MAC addresses: 8000

Width: 440 mm

Height: 44 mm

Depth: 330 mm

Type: Omada ES228GMP V1.6

Factory colour: Black

Port: 24 ports

Material (details): Metal

Max. operating noise: 46.2 dB

Power supply (details): 100 - 240 V

UKCA: yes

Fanless: no

Operating temperature (T-T): -5 - 45 °C

Power over Ethernet plus (PoE+) ports quantity: 24

Basic switching RJ-45 Ethernet ports quantity: 26

Total Power over Ethernet (PoE) budget: 384 W

Packet buffer memory: 4 MB

Storage relative humidity (H-H): 5 - 90 %

Switching capacity: 56 Gbit/s

Heat dissipation: 1546.15 BTU/h

Rack mount kit: yes

Jumbo frames: 15000

Power over Ethernet (PoE) power per port: 30 W

SFP module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Web-based management: yes

Store-and-forward: yes

Gigabit Ethernet (copper) ports quantity: 26

Manual: yes

Quick start guide: yes

Cloud-managed: yes

Firmware upgradeable: yes

Rack mounting: yes

Mean time between failures (MTBF): 224143 h

Flash memory: 64 MB

MAC address table: 8000 Eintragungen

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 32

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: no

Storage temperature (T-T): -40 - 70 °C

Surge protection voltage: 6 kV

Forwarding rate: 41.66 Mpps

Surge protection: yes

Power consumption (max): 454.8 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799845 TP-LINK ES228GMP Omada ES228GMP V1.6 Managed network switch 24 ports 56 GBit/s PoE

Description

The TP-LINK OMADA ES228GMP V1.6 is a Gigabit Ethernet switch, which was developed for professional network environments and offers 24 PoE+ ports for flexible device connectivity. With a switching capacity of 56 Gbps and a packet transmission rate of 41.67 Mpps, this Switch ensures an efficient data transmission and minimum latency. It supports 4000 VLANs and has functions like IGMP Snooping, Port Mirroring and Quality of Service (QoS), so it is suitable for the administration of strong network traffic with constant performance.
The ES228GMP is designed for use under different environmental conditions and operates at temperatures between -5°C and 45°C and at humidity levels between 10% and 90%. With features such as cable diagnostics, up to 6 kV surge, and cloud management features, this switch provides reliability and ease of use, ensuring a secure and efficient network infrastructure. The TP-LINK Omada ES228GMP is a comprehensive solution for improving the performance and reliability of your network.

This text is machine translated.
