Name: TP-LINK ES228GP Omada ES228GP V1 Managed network switch 26 ports 56 GBit/s PoE
Brand: TP-LINK
SKU: 3799908

Front view of a TP-Link Omada rackmount network switch with 24 Ethernet ports and 2 uplink ports, shown on a white background.

Front view of a black OMEGA electronics unit with a power switch, status light, and AC power socket on the front panel.

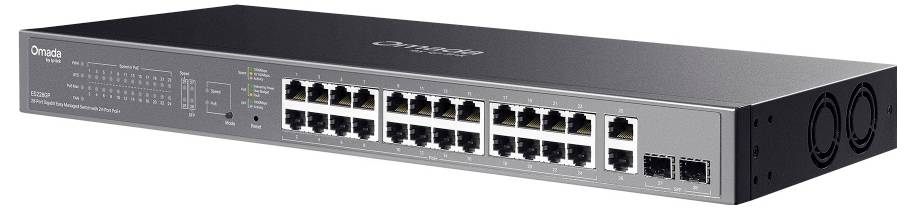

Front view of a black Ooma network switch with 24 Ethernet ports and status lights on the front panel.

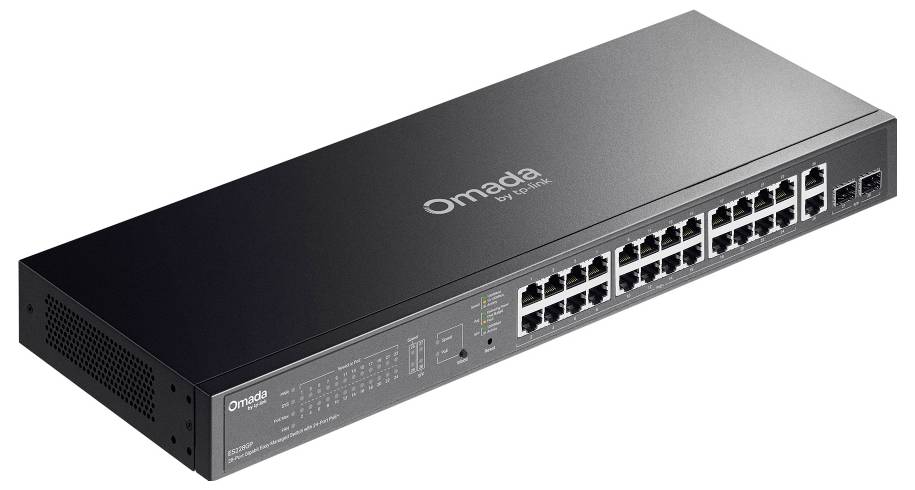

Rack-mounted Omada network switch with 24 Ethernet ports and status lights, shown in a three-quarter view on a white background.

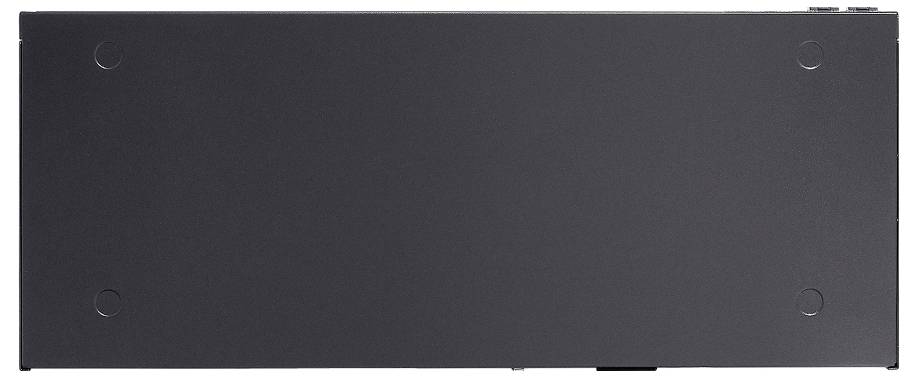

Plain black rectangular panel or cover viewed from the front, with small circular marks near the corners and along the sides.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK ES228GP network switch managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE), black

Managed L2 Web-based management
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 26
MAC address table: 8000 entries Routing/switching capacity: 56 Gb/s.
Rack installation
AC Power over Ethernet (PoE)

Technical specifications

Number of fans: 2 fans
Energy source: AC

Product type: Managed network switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 56 GBit/s

Ethernet ports: 26

IEEE 802.3af PoE: 26

SFP ports: 2 x

10/100/1000 Mbps ports: 26 x

Router features: PoE

MAC addresses: 8000

Width: 440 mm

Height: 44 mm

Depth: 180 mm

Type: Omada ES228GP V1

Factory colour: Black

Port: 26 ports

Power supply (details): 100 - 240 V

UKCA: yes

Power over Ethernet (PoE) ports quantity: 24

Operating temperature (T-T): -5 - 45 °C

Basic switching RJ-45 Ethernet ports quantity: 26

Total Power over Ethernet (PoE) budget: 250 W

Packet buffer memory: 4 MB

Storage relative humidity (H-H): 5 - 90 %

Switching capacity: 56 Gbit/s

Loop protection: yes

Jumbo frames: 15000

Power over Ethernet (PoE) power per port: 30 W

SFP module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Broadcast storm control: yes

Number of queues: 8

Web-based management: yes

Store-and-forward: yes

Manual: yes

Rack mounting: yes

MAC address table: 8000 Eintragungen

IGMP snooping: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 41.67 Mpps

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799908 TP-LINK ES228GP Omada ES228GP V1 Managed network switch 26 ports 56 GBit/s PoE

Description

The TP-LINK Omada ES228GP V1 is a versatile switch, which has been specially developed for the requirements of modern networks. With support for up to 4000 VLANs and VLAN groups, this switch improves network efficiency and management. Equipped with 28 ports, including 26 PoE+ ports and 2 gigabit SFP ports, it offers connectivity and simultaneously delivers up to 250 W PoE power. The integration of flow control, IGMP snooping and VLAN tagging ensures optimal performance and traffic management in busy environments. The TP-LINK Omada ES228GP V1 has a robust metal case and two fans and is suitable for desktop as well as for rack mounting. Its operating temperature range from -5 °C to 50 °C and its humidity tolerance of 10 to 90 % r. F. ensures reliability under different conditions. With 56 Gbps switching capacity and 41.644 Mbps packet forwarding rate, this switch is suitable for both small and large networks, making it a smart choice for anyone looking to improve their network infrastructure.

This text is machine translated.
