TP-LINK IES210GPP Omada IES210GPP V1.6 Managed network switch 8 ports 20 GBit/s PoE
EAN:
Part number:
Item no:
Highlights & Details

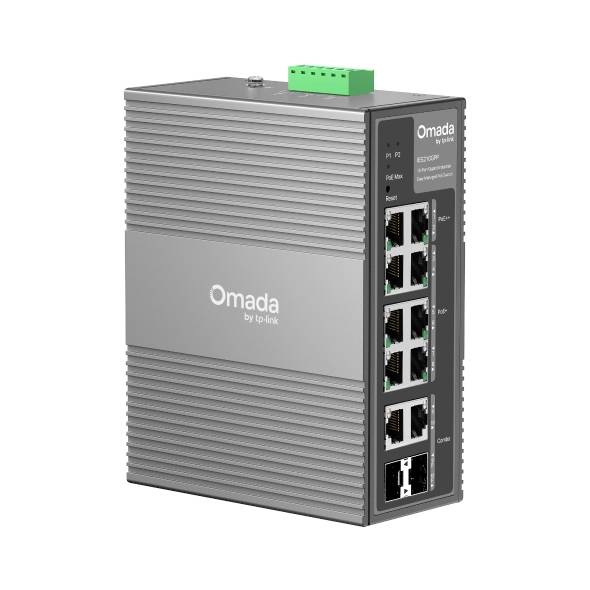

TP-LINK Omada IES210GPP network switch managed gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail gray
- Managed Web-based management
- Quality of Service (QoS) support
- Number of basic switching RJ-45 Ethernet ports: 8
- MAC address table: 8000 entries Routing/switching capacity: 20 Gb/s.
- DIN rail rack mounting
- Direct current Power over Ethernet (PoE)
- This text is machine translated.
Technical specifications
- Form factor: DIN rail
- Power source: Direct current
- Product type
Managed network switch
- Transfer rate
20 GBit/s
- Working principle
Managed switch
- Ethernet ports
8
- SFP ports
2 x
- 10/100/1000 Mbps ports
6 x
- Router features
PoE
- Width
155 mm
- Height
60 mm
- Depth
120 mm
- Type
Omada IES210GPP V1.6
- Factory colour
Grey
- Port
8 ports
- UKCA
yes
- Power over Ethernet plus (PoE+) ports quantity
6
- Combo SFP ports quantity
2
- Basic switching RJ-45 Ethernet ports quantity
8
- Total Power over Ethernet (PoE) budget
240 W
- Packet buffer memory
4000 MB
- Auto-negotiation
yes
- Switching capacity
20 Gbit/s
- Loop protection
yes
- Jumbo frames
15000
- Flow control support
yes
- Power over Ethernet (PoE)
yes
- Quality of Service (QoS) support
yes
- Port mirroring
yes
- Link aggregation
yes
- Jumbo frames support
yes
- Multicast support
yes
- Broadcast storm control
yes
- Web-based management
yes
- Store-and-forward
yes
- Cloud-managed
yes
- Power over Ethernet 4PPoE (PoE++) ports quantity
2
- Rack mounting
yes
- MAC address table
8000 Eintragungen
- IGMP snooping
yes
- Auto MDI/MDI-X
yes
- Number of VLANs
4000
- VLAN support
yes
- 10G support
no
- Forwarding rate
14.88 Mpps
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3799875 TP-LINK IES210GPP Omada IES210GPP V1.6 Managed network switch 8 ports 20 GBit/s PoE
