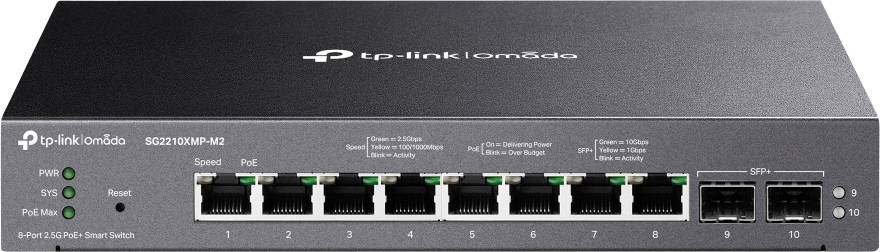

TP-LINK Omada SG2210XMP-M2 V1.6 - switch - L2 - Smart - 8 x 100/1000/2.5G (PoE)
EAN:
Part number:
Item no:
Highlights & Details
TP-LINK Omada SG2210XMP-M2 V1.6 - switch - L2+ - Smart - 8 x 100/1000/2.5G (PoE+)
- 8× 2.5 Gbps PoE+ ports, 2× 10G SFP+ slots
Technical specifications
- TP-LINK Omada SG2210XMP-M2 V1.6 – switch – 8 connections – Smart
- Device type : switch - 8 connections – L2+ - Smart
- Sub-type : 2.5 Gigabit Ethernet
- Ports : 8 x 100/1000/2.5G (PoE+) + 2 x 10Gb Ethernet SFP+
- Power over Ethernet (PoE) : PoE+
- PoE budget : 160 W.
- Performance : 80 Gbps switching capacity
- Transfer rate packet: 59.52 Mpps
- Packet buffer size 12 Mbit
- Capacity : Priority queues: 8
- IPv6 Interfaces: 32
- IPv4 interfaces: 32
- Multicast Groups: 511
- IP Multicast Profiles: 256
- IP Multicast entries: 16
- VLAN Groups: 4000
- MAC VLAN address entries 12
- Access control entries: 320
- IPv6 MAC port binding entries: 512
- IP Source Guard inputs: 253
- IPv6 Source Guard inputs: 183
- MAC addresses per port: 64
- Size of the MAC address table : 16,000 entries
- Jumbo Framework Support : 9KB
- Routing Protocol : Static IP routing, MLD, IGMP
- Remote Management Protocol : IPv4, IPv6, HTTPS, CLI, SSH, SSH-2, DHCP, TCP/IP, UDP, TELNET, SNMP, HTTP, TFTP, MIB, RADIUS, RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2C, SNMP 3
- Features : Without fans, cloud managed, reset button, security lock slot (cable lock sold separately), CoS, DSCP prioritization, organizer, QoS, SP, WRR, bandwidth control, frequency limit, storm control, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, DHCP server, DHCP relay, link aggregation, ARP support, proxy ARP, loopback detection, flow control, port mirroring, DLDP support, LLDP-MED, IGMP snooping, MVR, Multicast filtering, device discovery, firmware upgradable, fixed-time restart, network monitoring, VLAN support, GVRP, voice VLAN, ACL support, IPMB, AAA, port isolation, dynamic IP mode, DoS attack protection, ARP inspection, DHCP snooping, Guest VLAN, ND snooping, ND Detection, Cable Diagnostics Function, EEE, SNTP support, system protocol, ZTP
- Product certifications : IEEE 802.3at, IEEE 802.3af, IEEE 802.1p, IEEE 802.3x, IEEE 802.1AB (LLDP), IEEE 802.1Q, IEEE 802.1X
- Dimensions (width x depth x height): 22.6 cm x 13.12 cm x 3.5 cm
- System Requirements : Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux
- Product type
Network switch
- Ethernet ports
8
- Weight
2.36
- Width
226 mm
- Height
35 mm
- Depth
131 mm
- Type
Omada
- Factory colour
Black
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3734507 TP-LINK Omada SG2210XMP-M2 V1.6 - switch - L2 - Smart - 8 x 100/1000/2.5G (PoE)
Description
OMADA 8-PORT 2.5G Smart SWITCH
This text is machine translated.
This text is machine translated.
Features
- TP-LINK Omada SG2210XMP-M2 V1.6 – switch – 8 connections – Smart
- Device type : switch - 8 connections – L2+ - Smart
- Sub-type : 2.5 Gigabit Ethernet
- Ports : 8 x 100/1000/2.5G (PoE+) + 2 x 10Gb Ethernet SFP+
- Power over Ethernet (PoE) : PoE+
- PoE budget : 160 W.
- Performance : 80 Gbps switching capacity
- Transfer rate packet: 59.52 Mpps
- Packet buffer size 12 Mbit
- Capacity : Priority queues: 8
- IPv6 Interfaces: 32
- IPv4 interfaces: 32
- Multicast Groups: 511
- IP Multicast Profiles: 256
- IP Multicast entries: 16
- VLAN Groups: 4000
- MAC VLAN address entries 12
- Access control entries: 320
- IPv6 MAC port binding entries: 512
- IP Source Guard inputs: 253
- IPv6 Source Guard inputs: 183
- MAC addresses per port: 64
- Size of the MAC address table : 16,000 entries
- Jumbo Framework Support : 9KB
- Routing Protocol : Static IP routing, MLD, IGMP
- Remote Management Protocol : IPv4, IPv6, HTTPS, CLI, SSH, SSH-2, DHCP, TCP/IP, UDP, TELNET, SNMP, HTTP, TFTP, MIB, RADIUS, RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2C, SNMP 3
- Features : Without fans, cloud managed, reset button, security lock slot (cable lock sold separately), CoS, DSCP prioritization, organizer, QoS, SP, WRR, bandwidth control, frequency limit, storm control, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, DHCP server, DHCP relay, link aggregation, ARP support, proxy ARP, loopback detection, flow control, port mirroring, DLDP support, LLDP-MED, IGMP snooping, MVR, Multicast filtering, device discovery, firmware upgradable, fixed-time restart, network monitoring, VLAN support, GVRP, voice VLAN, ACL support, IPMB, AAA, port isolation, dynamic IP mode, DoS attack protection, ARP inspection, DHCP snooping, Guest VLAN, ND snooping, ND Detection, Cable Diagnostics Function, EEE, SNTP support, system protocol, ZTP
- Product certifications : IEEE 802.3at, IEEE 802.3af, IEEE 802.1p, IEEE 802.3x, IEEE 802.1AB (LLDP), IEEE 802.1Q, IEEE 802.1X
- Dimensions (width x depth x height): 22.6 cm x 13.12 cm x 3.5 cm
- System Requirements : Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux
