Name: TP-LINK Router Router 10 GBit/s Gigabit LAN (10 Gbps)
Brand: TP-LINK
SKU: 3740062

TP-LINK Router Router 10 GBit/s Gigabit LAN (10 Gbps)-0

TP-LINK Router Router 10 GBit/s Gigabit LAN (10 Gbps)-1

1/2

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

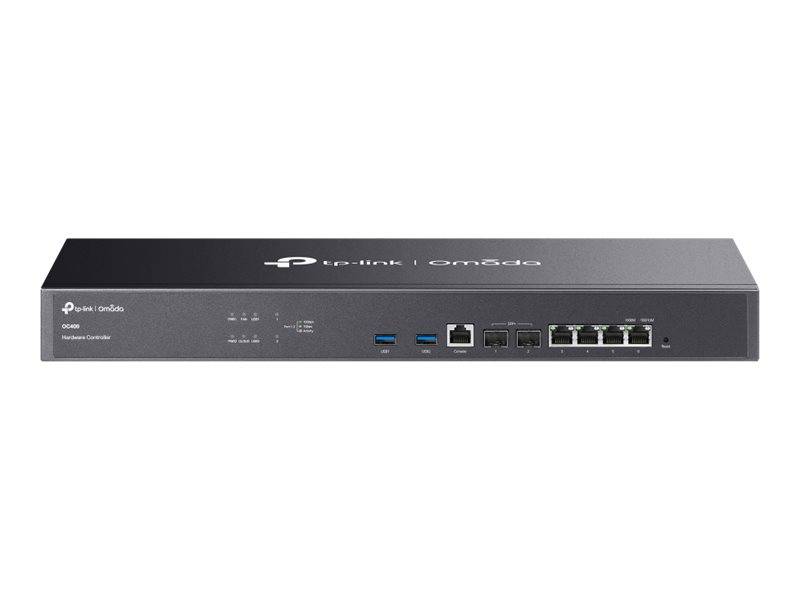

TP-LINK OMADA OC400 V1 Network Management Device

Product type: Router
Type:Router
Transfer rate 1 Gbps

Technical specifications

10GbE - Cloud managed - Rack mountable

Product type: Router

Interfaces: Gigabit LAN (10 Gbps)

Transfer rate: 10 GBit/s

LAN transfer rate: 10000 MBit/s

Factory colour: Grey

Depth: 180 mm

Height: 44 mm

Width: 440 mm

Memory techology: DDR4

10/100/1000 Mbps ports: 4 x

Input voltage: 100 - 240 V

SSD: 32 GB

Weight: 3.11 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3740062 TP-LINK Router Router 10 GBit/s Gigabit LAN (10 Gbps)

Description

TP-LINK OMADA HARDWARE - CONTROLLEROC400(UN)CN9130-2200-N

This text is machine translated.

Features

TP-LINK OMADA OC400 V1 - Network management device - Cloud-managed
Device Type : Network management device
Form factor : Rack mountable
Processor : 2.2 GHz
RAM: 8 GB
Flash memory : 32 GB
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Capacity : Maximum number of access points: 1000
Maximum number of keys: 200
Maximum number of routers: 100
Maximum number of clients: 30000
Maximum number of sites: 100
Max. Number of accounts: 1000
Maximum number of local accounts: 500
Maximum number of cloud accounts: 500
Max. Number of vouchers: 60000
Maximum number of local users: 60000
Max. Number of WLAN groups: 500
Maximum number of configured SSIDs per site: 24
Maximum number of ACL entries (routers): 64
Maximum number of ACL entries (switch): 32
Maximum number of ACL (EAP) entries: 16
Maximum number of pre-authentications for each site: 96
Maximum number of reboot schedules for each site: 8
Maximum number of PoE schedules for each site: 8
Maximum number of MAC filter groups per site: 8
Maximum number of IP groups for each site: 16
Maximum number of MAC addresses in each MAC filter: 500
Maximum number of MAC addresses in each MAC filter per controller: 4000
Maximum number of static routing entries (routers): 64
Maximum number of static routing (switch) entries: 32
Maximum number of policy routing entries per each site: 64
Maximum number of sessions for each website: 64
Maximum number of bandwidth control entries for each site: 64
Maximum number of port forwarding entries for each site: 32
Maximum number of radius profiles for each site: 64
Accessories included : Rubber feet, rack mounting kit
Required Operating System : UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows XP / Vista / 7 / 8 / 10
Power supply : AC 100-240 V (50/60 Hz)
Redundant power supply : Yes
Dimensions (width x depth x height): 44 cm x 18 cm x 4.4 cm

Scope of delivery

• Omada hardware controller OC400
Quick installation guide
• Ethernet cable
• Power cord
• Rack mount kit

Description

TP-LINK OMADA HARDWARE - CONTROLLEROC400(UN)CN9130-2200-N

This text is machine translated.

Features

TP-LINK OMADA OC400 V1 - Network management device - Cloud-managed
Device Type : Network management device
Form factor : Rack mountable
Processor : 2.2 GHz
RAM: 8 GB
Flash memory : 32 GB
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Capacity : Maximum number of access points: 1000
Maximum number of keys: 200
Maximum number of routers: 100
Maximum number of clients: 30000
Maximum number of sites: 100
Max. Number of accounts: 1000
Maximum number of local accounts: 500
Maximum number of cloud accounts: 500
Max. Number of vouchers: 60000
Maximum number of local users: 60000
Max. Number of WLAN groups: 500
Maximum number of configured SSIDs per site: 24
Maximum number of ACL entries (routers): 64
Maximum number of ACL entries (switch): 32
Maximum number of ACL (EAP) entries: 16
Maximum number of pre-authentications for each site: 96
Maximum number of reboot schedules for each site: 8
Maximum number of PoE schedules for each site: 8
Maximum number of MAC filter groups per site: 8
Maximum number of IP groups for each site: 16
Maximum number of MAC addresses in each MAC filter: 500
Maximum number of MAC addresses in each MAC filter per controller: 4000
Maximum number of static routing entries (routers): 64
Maximum number of static routing (switch) entries: 32
Maximum number of policy routing entries per each site: 64
Maximum number of sessions for each website: 64
Maximum number of bandwidth control entries for each site: 64
Maximum number of port forwarding entries for each site: 32
Maximum number of radius profiles for each site: 64
Accessories included : Rubber feet, rack mounting kit
Required Operating System : UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows XP / Vista / 7 / 8 / 10
Power supply : AC 100-240 V (50/60 Hz)
Redundant power supply : Yes
Dimensions (width x depth x height): 44 cm x 18 cm x 4.4 cm
