Name: TP-LINK SG2016P JetStream TL-SG2016P V1 Managed network switch 16 ports 32 Gbit/s PoE
Brand: TP-LINK
SKU: 3799988

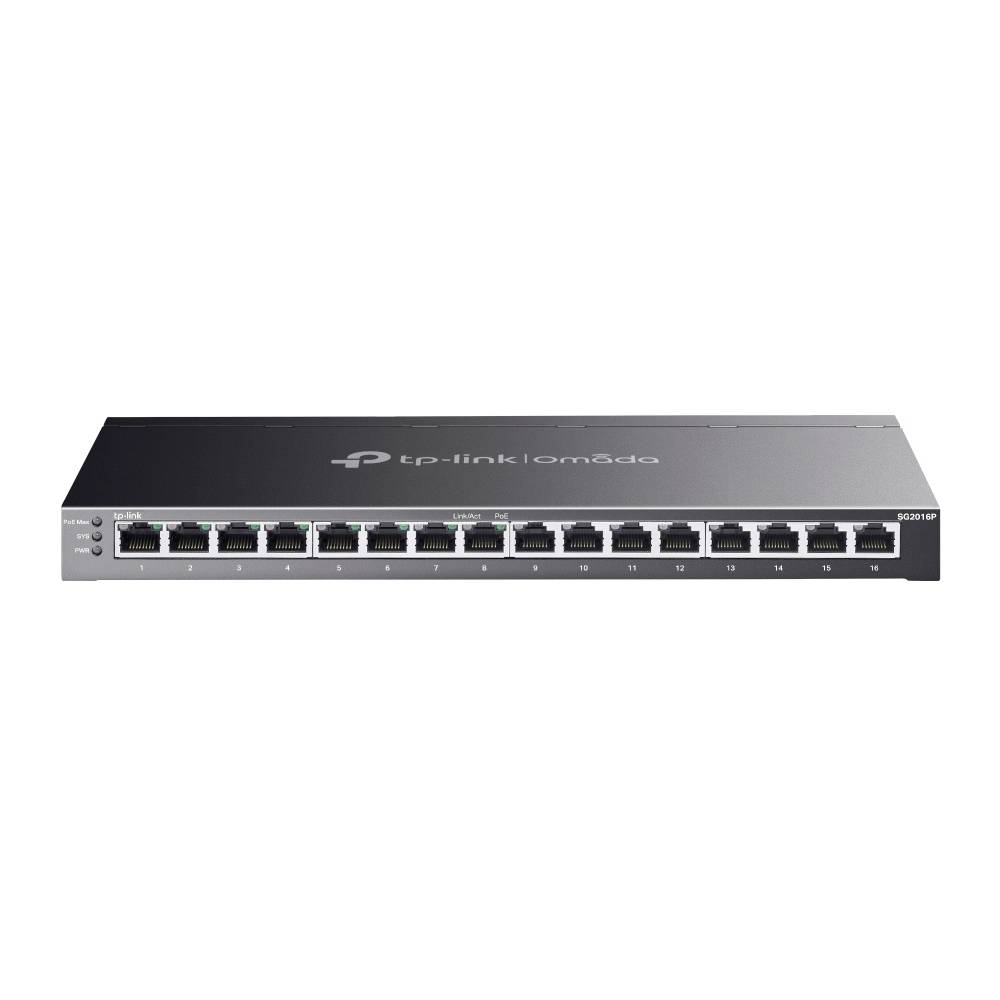

Front view of a TP-Link Omada rackmount Ethernet switch with 16 numbered network ports and status LEDs.

Front view of a TP-Link network switch with a dark gray metal case, front status LEDs, lock slot, and a reset button on the right.

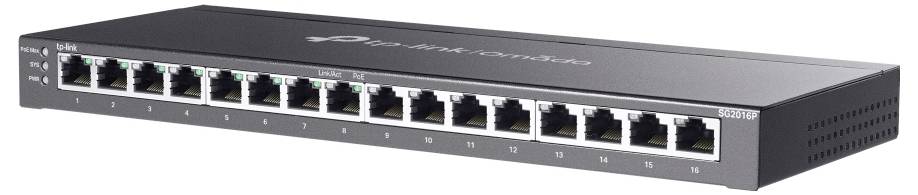

A black 16-port Ethernet network switch with numbered RJ45 ports and status LEDs on the front panel.

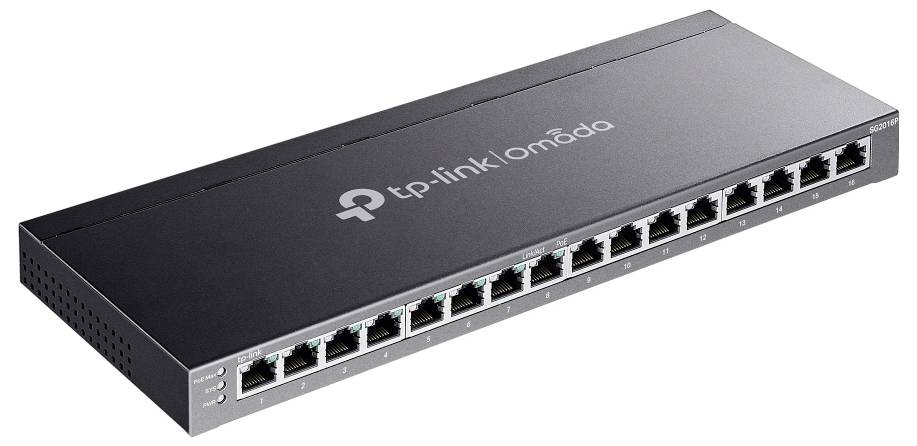

TP-Link Omada Ethernet switch with multiple numbered ports on the front panel.

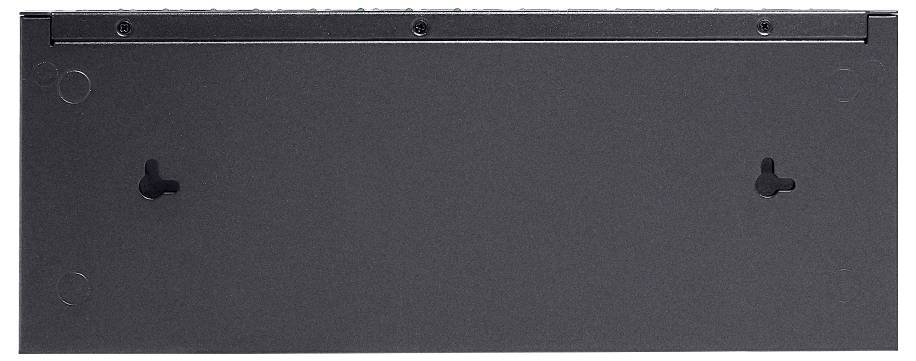

Empty black rectangular wall-mounted panel or cover with several mounting holes and cutouts near the top corners.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada SG2016P Network-Switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Managed L2/L2+ Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Number of basic switching RJ-45 Ethernet ports: 16
10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 8000 entries Routing/switching capacity: 32 Gb/s.
Access control list
Rack installation
DC/PoE Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Power source DC / PoE

Product type: Managed network switch

Transfer rate: 32 Gbit/s

Working principle: Managed switch

Ethernet ports: 16

Router features: PoE

Width: 286 mm

Height: 25.4 mm

Depth: 111.7 mm

Type: JetStream TL-SG2016P V1

Factory colour: Black

Port: 16 ports

Safety: EAP-MD5
HTTPS
SNMP
SNMPv2
SNMPv3
SSH
SSL/TLS

UKCA: yes

Fanless: yes

Operating temperature (T-T): 0 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 8

Basic switching RJ-45 Ethernet ports quantity: 16

Total Power over Ethernet (PoE) budget: 120 W

Packet buffer memory: 4.1 MB

Storage relative humidity (H-H): 5 - 90 %

Auto-negotiation: yes

Switching capacity: 32 Gbit/s

Heat dissipation: 499.98 BTU/h

BPDU filtering/protection: yes

IP-MAC-Port binding: yes

ARP inspection: yes

Jumbo frames: 9000

Flow control support: yes

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

GARP VLAN Registration Protocol (GVRP): yes

Configuring Location Settings (CLI): yes

Number of queues: 8

Web-based management: yes

Access Control List (ACL): yes

System event log: yes

Rate limiting: yes

Manual: yes

Cloud-managed: yes

Firmware upgradeable: yes

Rack mounting: yes

MAC address table: 8000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 4000

Spanning tree protocol: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: no

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 23.81 Mpps

Power consumption (max): 146.5 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799988 TP-LINK SG2016P JetStream TL-SG2016P V1 Managed network switch 16 ports 32 Gbit/s PoE
